Description

Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 11

35710-24B40

$324.06

2

LENS

35712-24B30

$53.98

3

GASKET

35713-31D00

$9.42

4

REFLECTOR

35714-38A00

Unavailable

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

BULB (12V,21/5W)

09471-12128

$6.73

8

CUSHION

35765-24B00

Unavailable

9

CUSHION

35764-26470

$3.37

10

SPACER

35766-40640

Unavailable

11

SPACER

35766-24B40

Unavailable

12

BOLT

09116-06093

$2.43

13

GROMMET, RR COMB

09308-09004

Unavailable

14

LAMP ASSY, LICENSE | MODEL K5/K6

35910-24B40

Unavailable

14

LAMP ASSY, LICENSE | MODEL K7/K8/K9; Includes Item(s) 15 - 19

35910-24B50

$119.34

15

COVER, LICENSE LAMP

35917-17C10

$77.50

16

LENS

35912-38A30

$20.45

17

GASKET

35913-38A30

$3.37

18

SPACER

35966-24B40

Unavailable

19

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

20

NUT, LICENSE

08316-1004B

$3.15

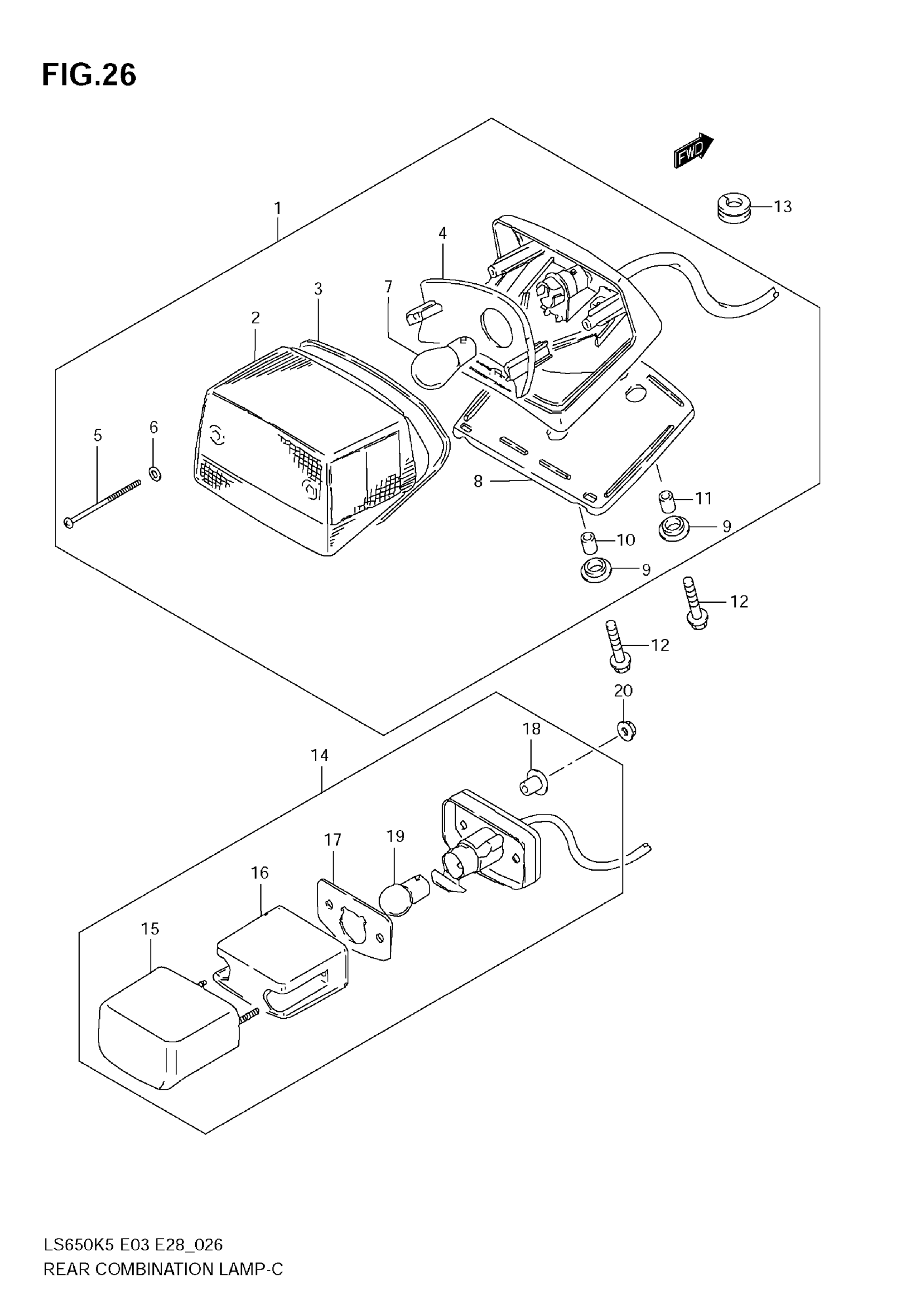

Suzuki LS650 (2009) REAR COMBINATION LAMP Diagram

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 11

LENS

GASKET

REFLECTOR

SCREW

GASKET

BULB (12V,21/5W)

CUSHION

CUSHION

SPACER

SPACER

BOLT

GROMMET, RR COMB

LAMP ASSY, LICENSE | MODEL K5/K6

LAMP ASSY, LICENSE | MODEL K7/K8/K9; Includes Item(s) 15 - 19

COVER, LICENSE LAMP

LENS

GASKET

SPACER

BULB (12V5W) This part replaces 09471-12140.

NUT, LICENSE
