Description

Price

1

PUMP, ENGINE OIL

16400-24B00

$216.72

2

GEAR, DRIVEN (NT:35)

16331-24B00

Unavailable

3

PIN

09261-04009

$1.56

4

WASHER

09181-10158

$1.97

5

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78

6

SCREW

02112-0625B

Unavailable

7

STRAINER, ENGINE OIL

16520-24B00

Unavailable

8

BOLT

01580-0512A

Unavailable

9

FILTER, ENGINE OIL

16510-37450

$6.06

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

CAP, OIL FILTER

16512-24B00

$56.90

12

.O RING (D:2.4,ID:73)

09280-72001

$4.94

13

SPRING

09440-21006

$2.03

14

BOLT

09106-06090

$3.16

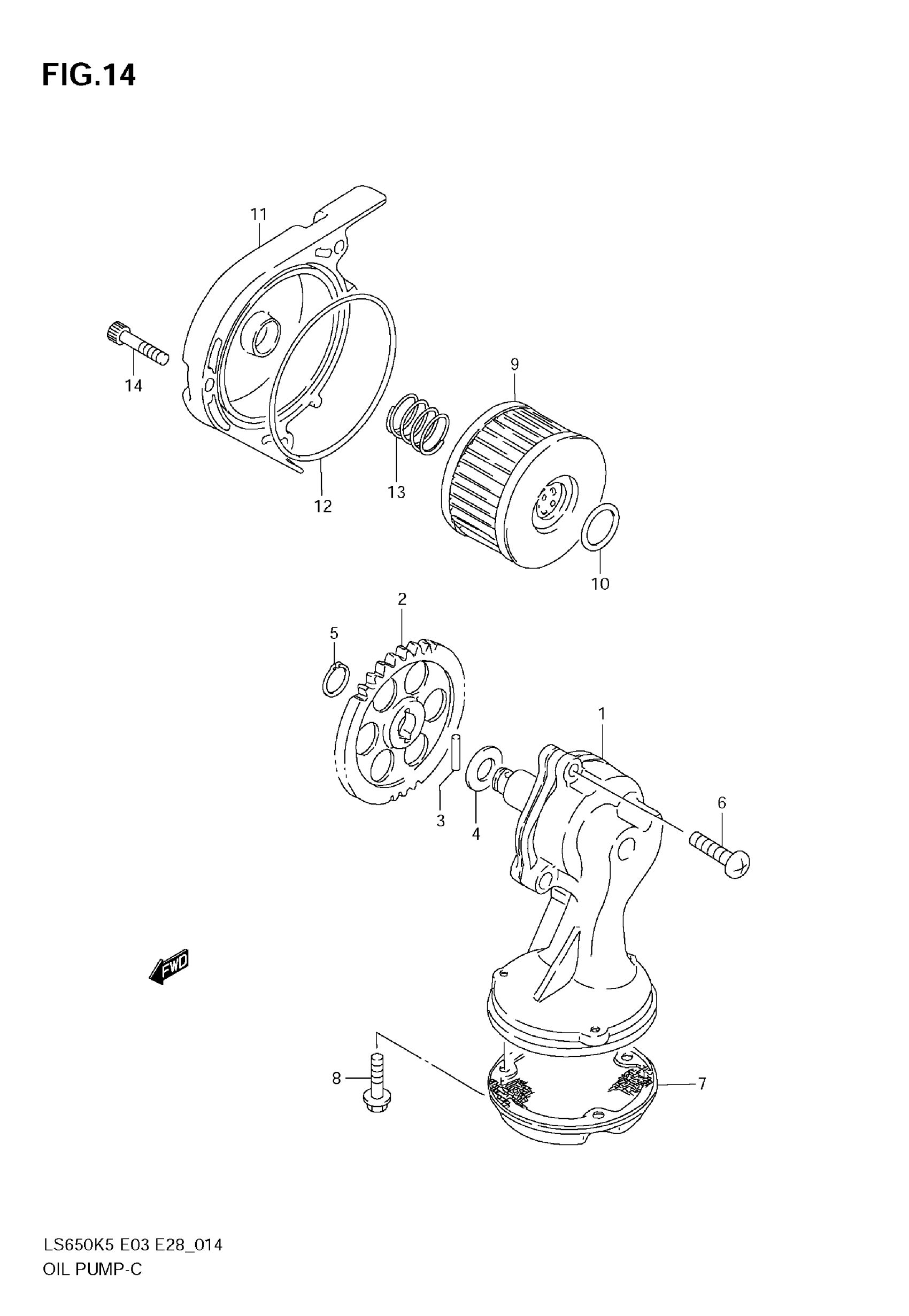

Suzuki LS650 (2009) OIL PUMP Diagram

PUMP, ENGINE OIL

GEAR, DRIVEN (NT:35)

PIN

WASHER

CIRCLIP This part replaces 08331-31106.

SCREW

STRAINER, ENGINE OIL

BOLT

FILTER, ENGINE OIL

O-RING (D:2.4,ID:15.8)

CAP, OIL FILTER

.O RING (D:2.4,ID:73)

SPRING

BOLT
