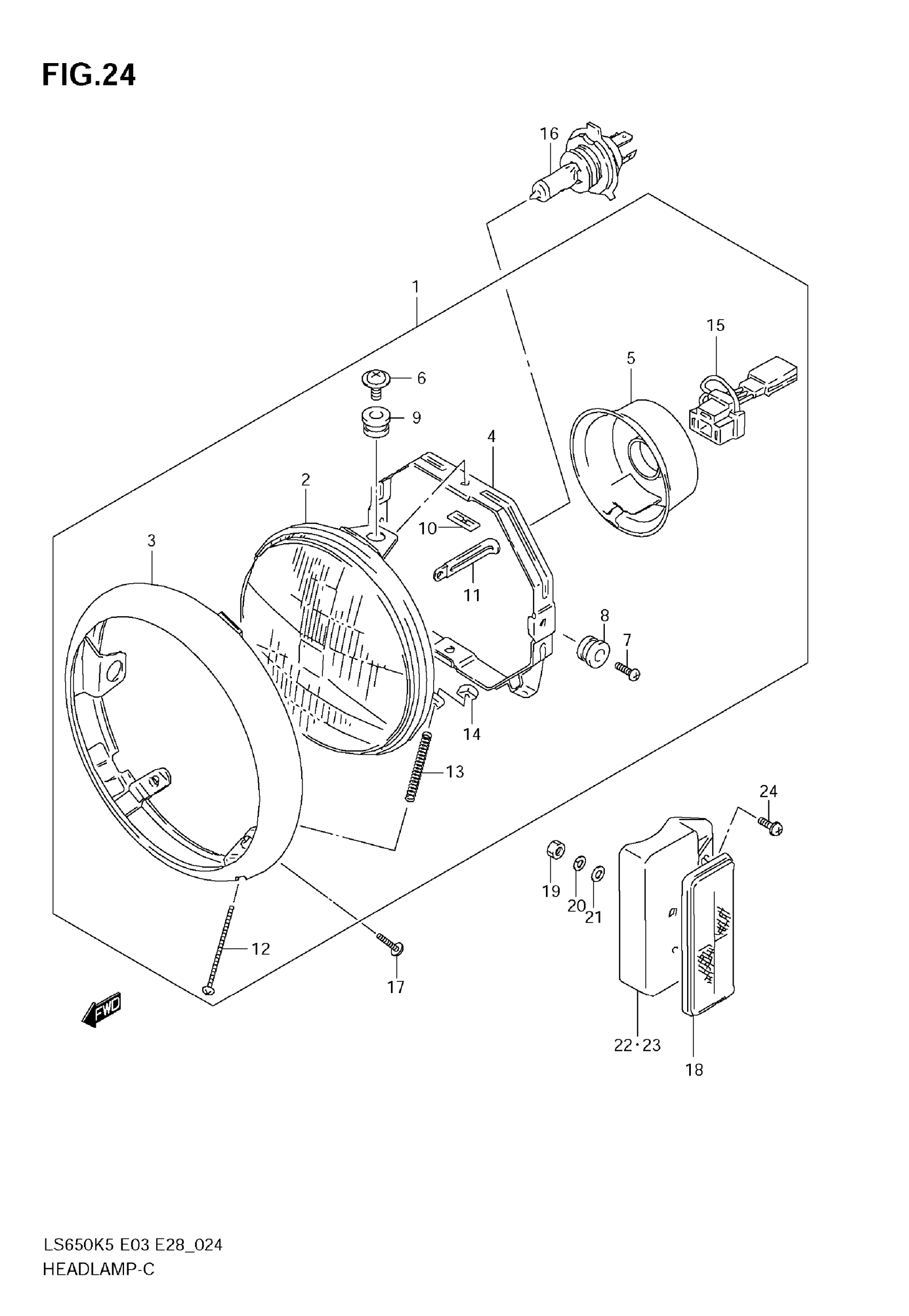

Suzuki LS650 (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 15 This part replaces 35100-38A61-999.

35100-38A62-999

$274.73

2

UNIT, LAMP

35121-38A60

$154.20

3

RIM

35111-38A60

$48.23

4

RING, MOUNTING

35130-38A00

$26.95

5

COVER

35173-13E10

$24.77

6

SCREW

35136-38A60

Unavailable

7

.SCREW MOUNTING

35136-38A00

$4.02

8

CUSHION

35139-45230

$1.98

9

CUSHION

35139-38A60

$4.10

10

NUT

35155-38A60

$4.17

11

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

12

SCREW, ADJUST

35151-38A00

$3.63

13

SPRING

35154-31300

$3.70

14

.NUT

35152-45600

$3.47

15

SOCKET

36853-38A00

$13.92

16

BULB (12V,60/55W)

09471-12060

$25.15

17

SCREW, HEAD LAMP

02142-05127

$1.97

18

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

19

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

20

LOCK WASHER

08321-0105B

$2.83

21

WASHER

09160-05037

$1.49

22

BRACKET, FRONT SIDE RH

35956-24B00

Unavailable

23

BRACKET, FRONT SIDE LH

35957-24B00

Unavailable

24

SCREW

09136-05026

Unavailable
