Description

Price

1

GASKET SET | OPT MODEL K5/K6

11400-24858

$211.10

1

GASKET SET | OPT MODEL K7/K8/K9; Includes Item(s) 2 - 20

11400-24880

$219.15

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-24B03

$48.93

3

O RING, HEAD COVER | NOT SHOWN

11178-24B00

$2.33

4

GASKET, CYLINDER | NOT SHOWN

11241-24B01-H17

$12.15

5

GASKET, CLUTCH COVER | NOT SHOWN MODEL K5/K6

11482-24B11

$28.91

5

GASKET, CLUTCH COVER | NOT SHOWN MODEL K7/K8/K9

11482-24B20

$28.91

6

GASKET, GENERATOR COVER | NOT SHOWN

11483-24B01-H17

$17.14

7

GASKET, GEAR SHIFT COVER | NOT SHOWN MODEL K5/K6

11485-24B10

$7.08

7

GASKET, GEAR SHIFT COVER | NOT SHOWN MODEL K7/K8/K9

11485-24B20

$7.37

8

GASKET, EXHAUST PIPE | NOT SHOWN

14181-45C00

$7.38

9

GASKET (5.8X13X1.2) | NOT SHOWN

09168-06023

$2.35

10

.GASKET (10.2X20X2.3) | NOT SHOWN

09168-10031

$2.03

11

O RING (D:1.9,ID:6.8) | NOT SHOWN

09280-07004

$1.53

12

.O RING (D:1.9,ID:8.6) | NOT SHOWN

09280-09005

$3.70

13

O RING (D:2.4,ID:9.6) | NOT SHOWN

09280-10013

$3.70

14

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

$1.70

15

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.65

16

O RING (D:2.4,ID:23.7) | NOT SHOWN

09280-24010

$5.64

17

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.23

18

O RING (D:2.4,ID:45.7) | NOT SHOWN

09280-46002

$10.49

19

O RING (D:2.4,ID:23.0) | NOT SHOWN

09280-60004

$3.76

20

.O RING (D:2.4,ID:73) | NOT SHOWN

09280-72001

$4.94

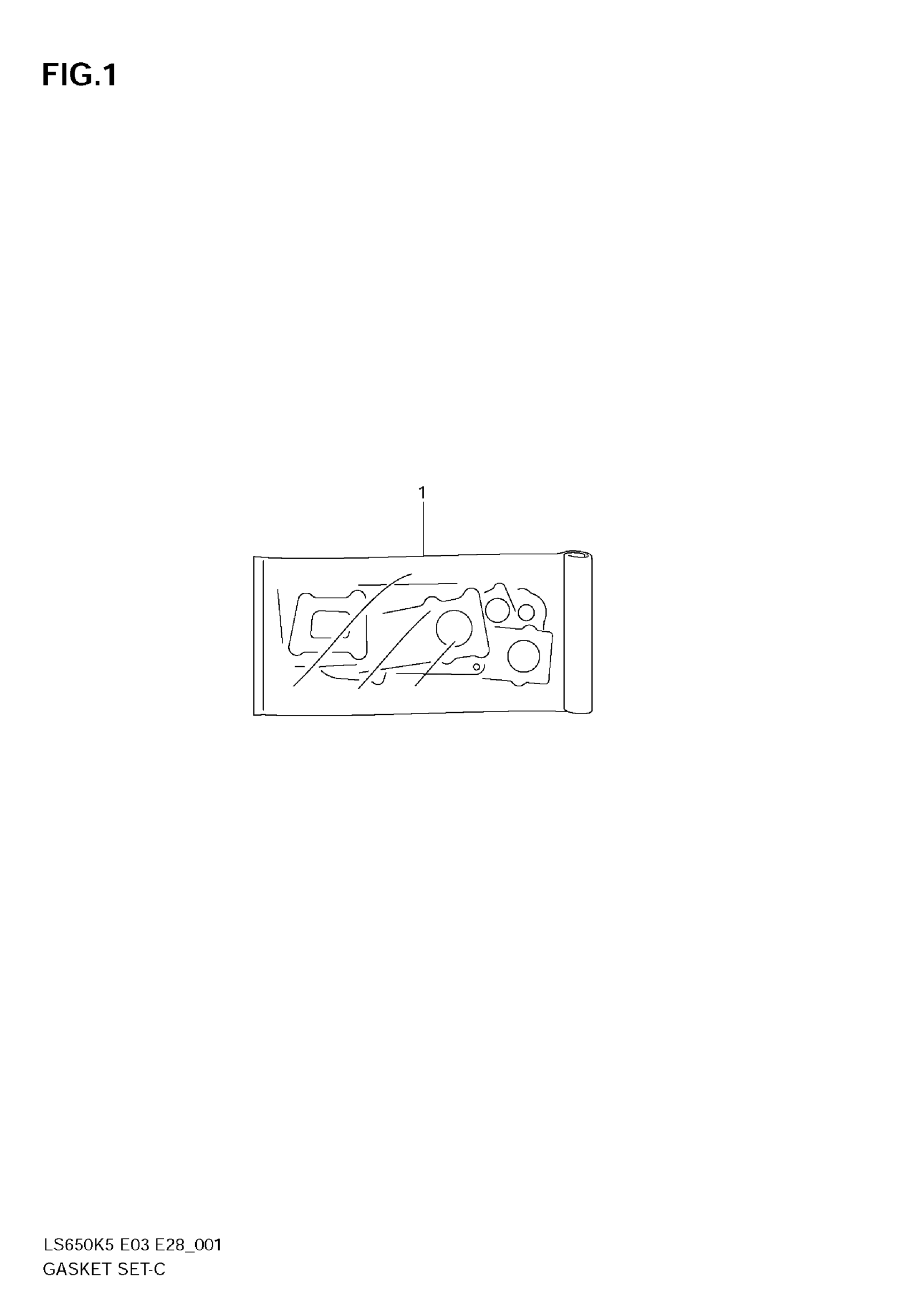

Suzuki LS650 (2009) GASKET SET Diagram
