2009 Suzuki LS650 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2009 Suzuki LS650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

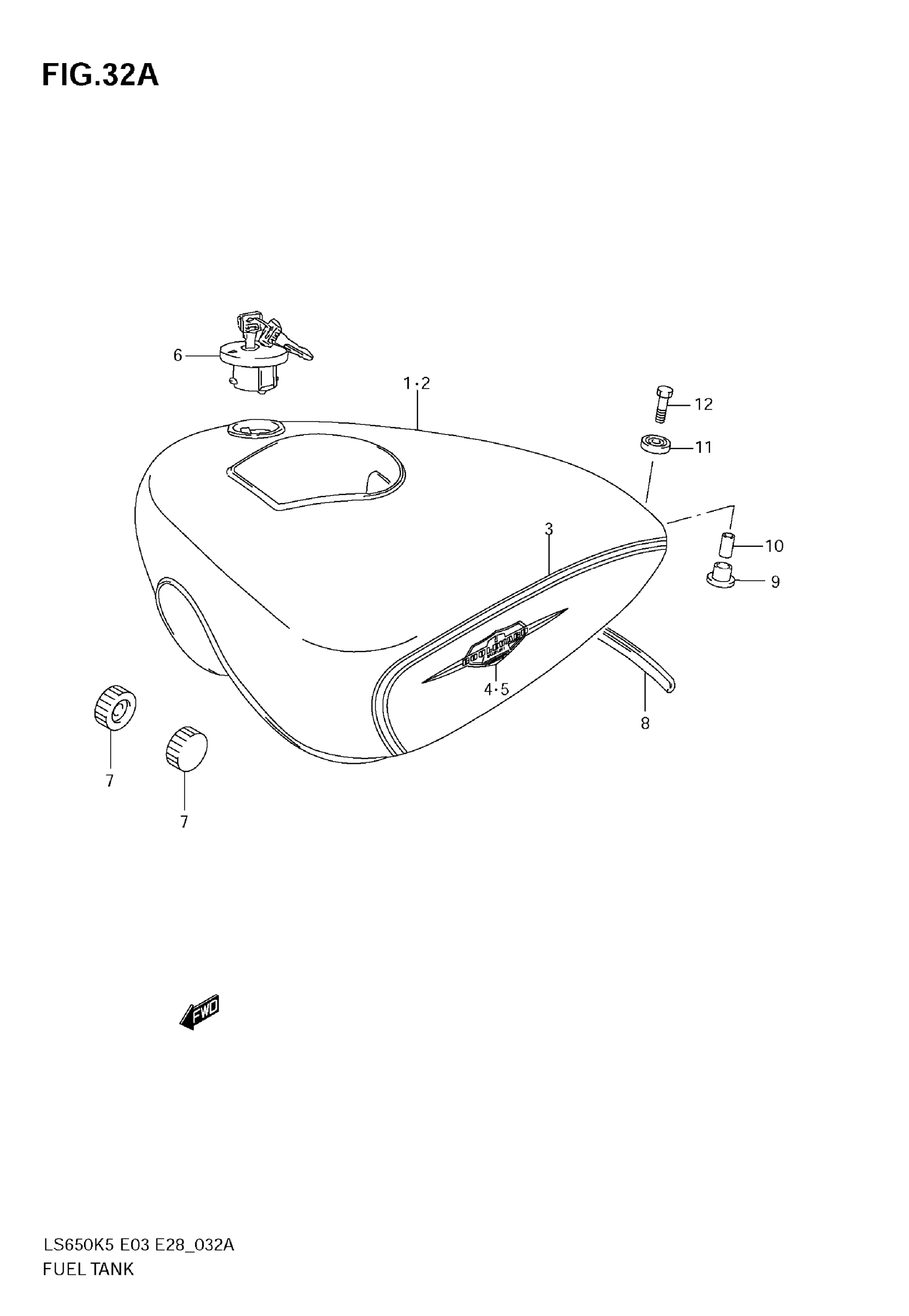

2009 Suzuki LS650 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (BLACK)

44100-24C11-YAY

1
Out of stock

1

TANK ASSY, FUEL (BLACK) | E33

44100-24C21-YAY

1
Out of stock

2

TANK ASSY, FUEL (WHITE)

44100-24C30-EAH

1
Out of stock

2

TANK ASSY, FUEL (MAGENTA)

44100-24C30-GDW

1
Out of stock

2

TANK ASSY, FUEL (WHITE) | E33

44100-24C40-EAH

1
Out of stock

2

TANK ASSY, FUEL (MAGENTA) | E33; Includes Item(s) 3 - 3

44100-24C40-GDW

1
Out of stock

3

TAPE SET | FOR EAH

68110-24C00-GEY

1
Out of stock

3

TAPE SET | FOR GDW

68110-24C00-GEZ

1
Out of stock

4

EMBLEM, FULE TANK RH This part replaces 68111-24C00.

68111-24C01

1
Out of stock

5

EMBLEM, FUEL TANK LH This part replaces 68121-24C00.

68121-24C01

1
Out of stock

6

CAP SET, FUEL TANK

44200-24830

1
Out of stock

6

(CA)CAP,FUEL TA | E33 This part replaces 44200-24820.

44200-24821

1
Out of stock

7

CUSHION, FRONT

09329-10016

2

$3.00

In stock

8

MOLDING, REAR

44552-24B00

1
Out of stock

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

10

SPACER

09180-06271

2
Out of stock

11

CUSHION, UPPER

09320-14013

2
Out of stock

12

BOLT

01500-0630B

2
Out of stock
