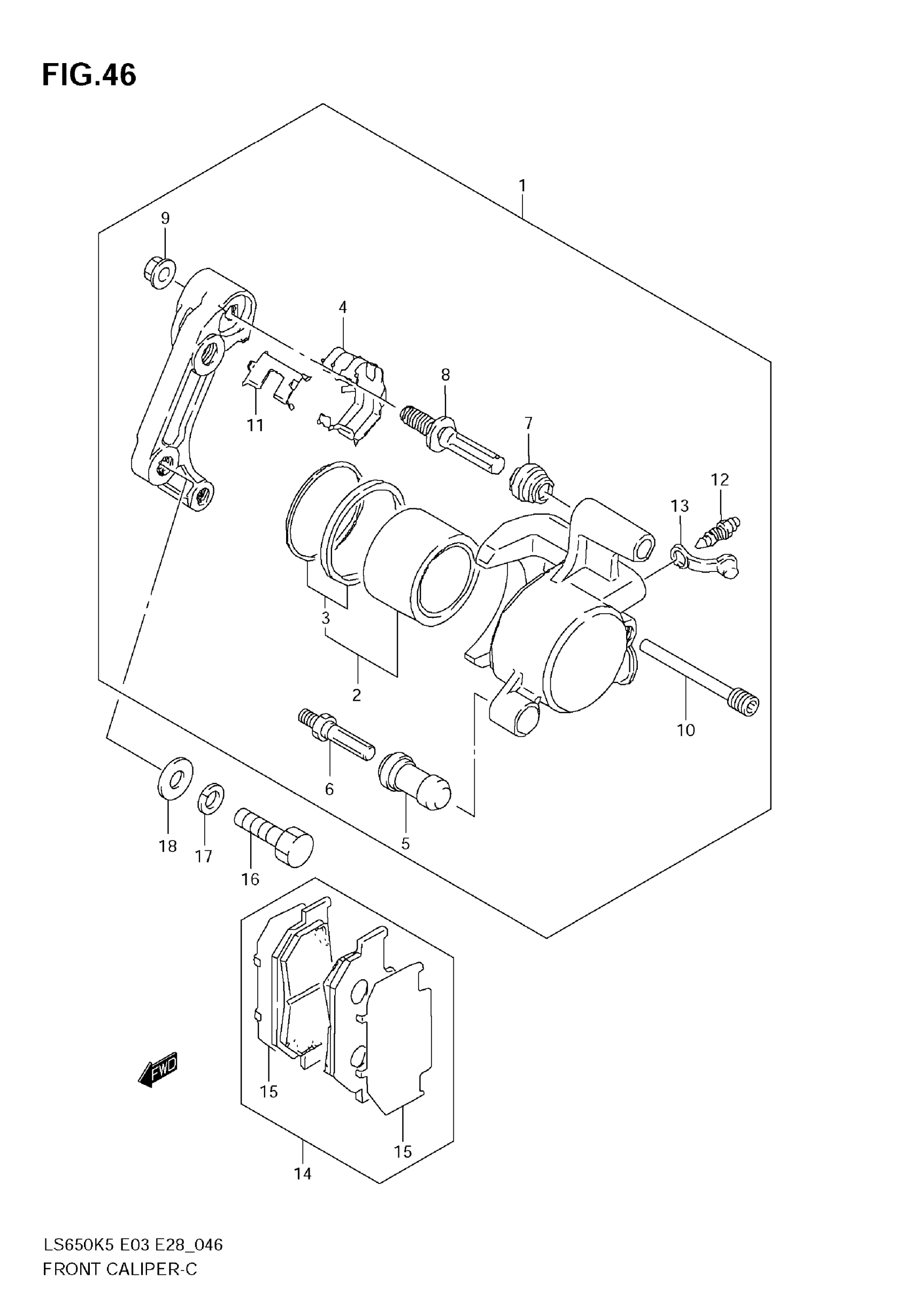

Suzuki LS650 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, LH | Includes Item(s) 2 - 13

59300-24B40-999

$487.35

2

PISTON SET

59300-24820

$48.77

3

SEAL SET, PISTON

59300-24810

$11.24

4

SPRING

59315-14600

$11.83

5

BOOT

59386-13A00

$7.95

6

BOLT

59382-27C30

$9.07

7

BOOT

59303-14500

$5.52

8

BOLT

59305-14500

$23.07

9

NUT

59306-14500

Unavailable

10

PIN

59345-14600

$16.25

11

RETAINER

59316-24B10

$8.42

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

PAD & SHIM SET | Includes Item(s) 15 This part replaces 59300-24850.

59100-26860

$49.90

15

SHIM

59371-24B00

$15.42

16

BOLT (10X38)

09104-10029

$3.55

17

WASHER

09162-10008

$3.04

18

WASHER

08322-01107

$2.15
