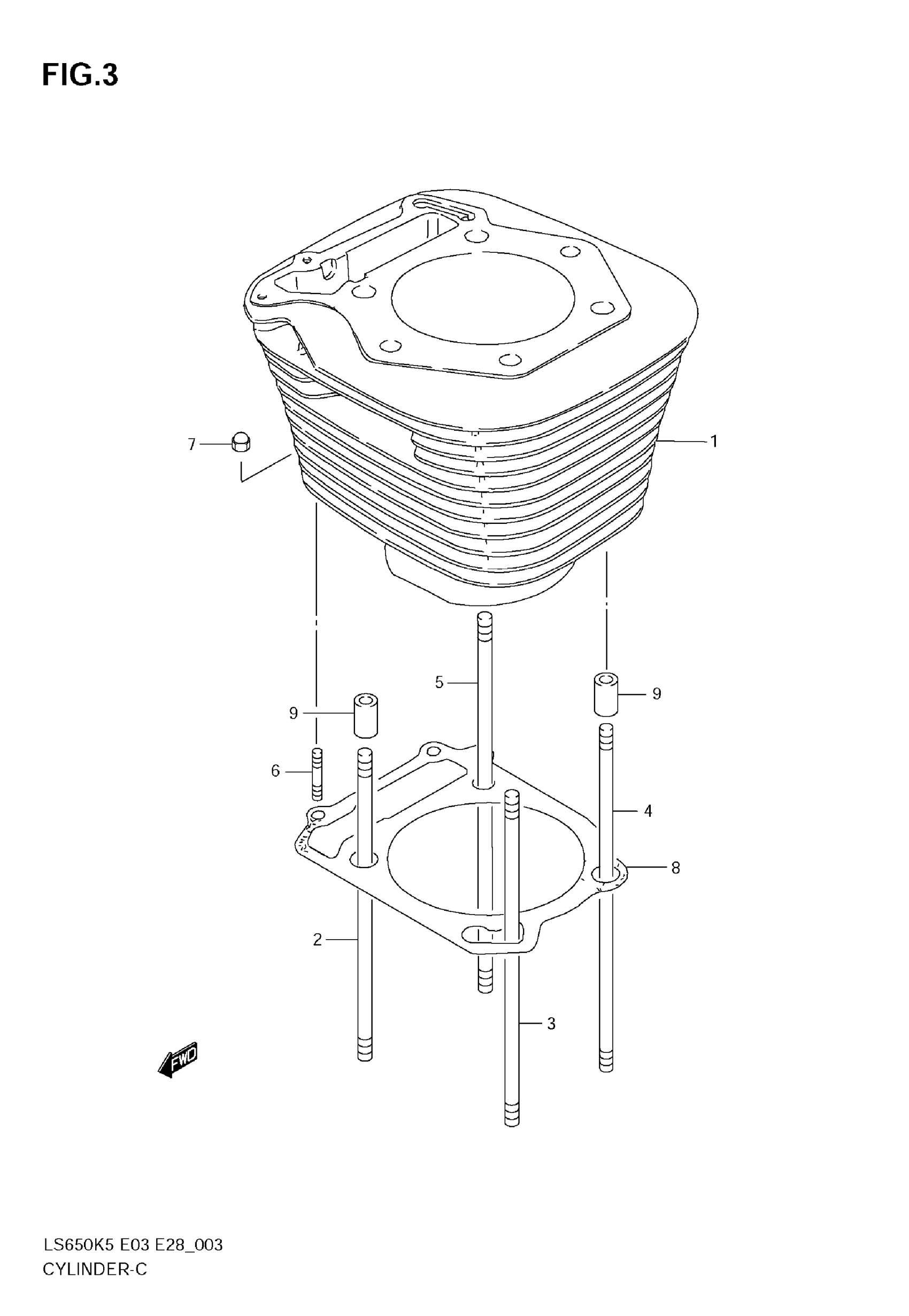

Suzuki LS650 (2009) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-24B10-0F0.

11210-24B11-0F0

$768.13

2

STUD BOLT (9X166)

09108-09001

$11.28

3

STUD BOLT (9X178)

09108-09002

$12.88

4

STUD BOLT (9X183)

09108-09003

$12.88

5

STUD BOLT (9X203)

09108-09004

$13.05

6

STUD BOLT (6X20) (GREEN)

01421-0620B

Unavailable

7

NUT

09145-06007

$2.72

8

GASKET, CYLINDER

11241-24B01-H17

$12.15

9

PIN

04211-13189

$2.19
