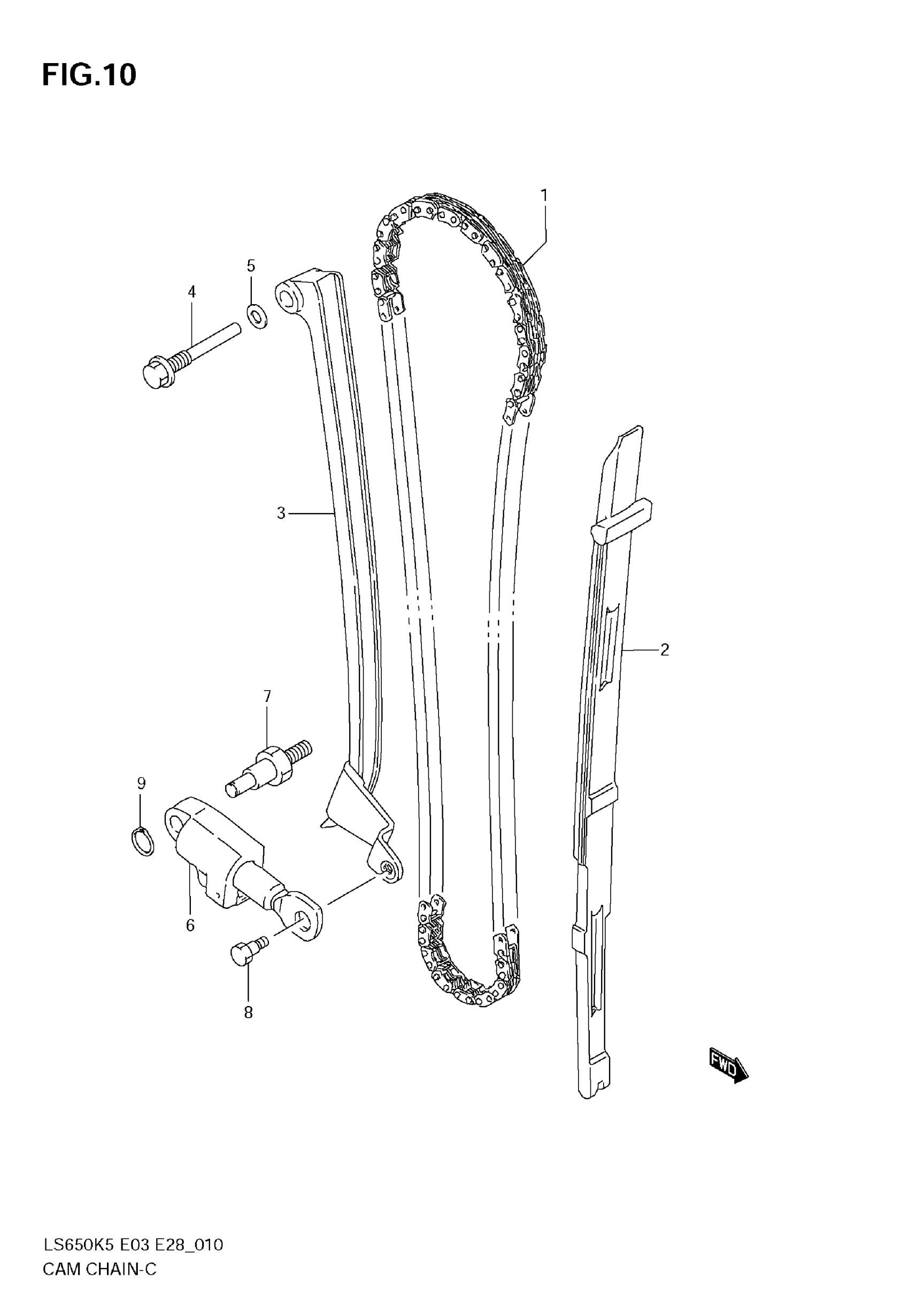

Suzuki LS650 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | 132LE

12760-24B00

$187.13

2

GUIDE, CAM CHAIN

12771-24B01

$60.97

3

TENSIONER, CAM CHAIN

12811-24B00

$118.93

4

BOLT

12812-24B00

$7.37

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-24B01

$112.90

7

BOLT (8X18)

09108-08194

$14.73

8

BOLT (6X12)

09119-06069

$5.60

9

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.78
