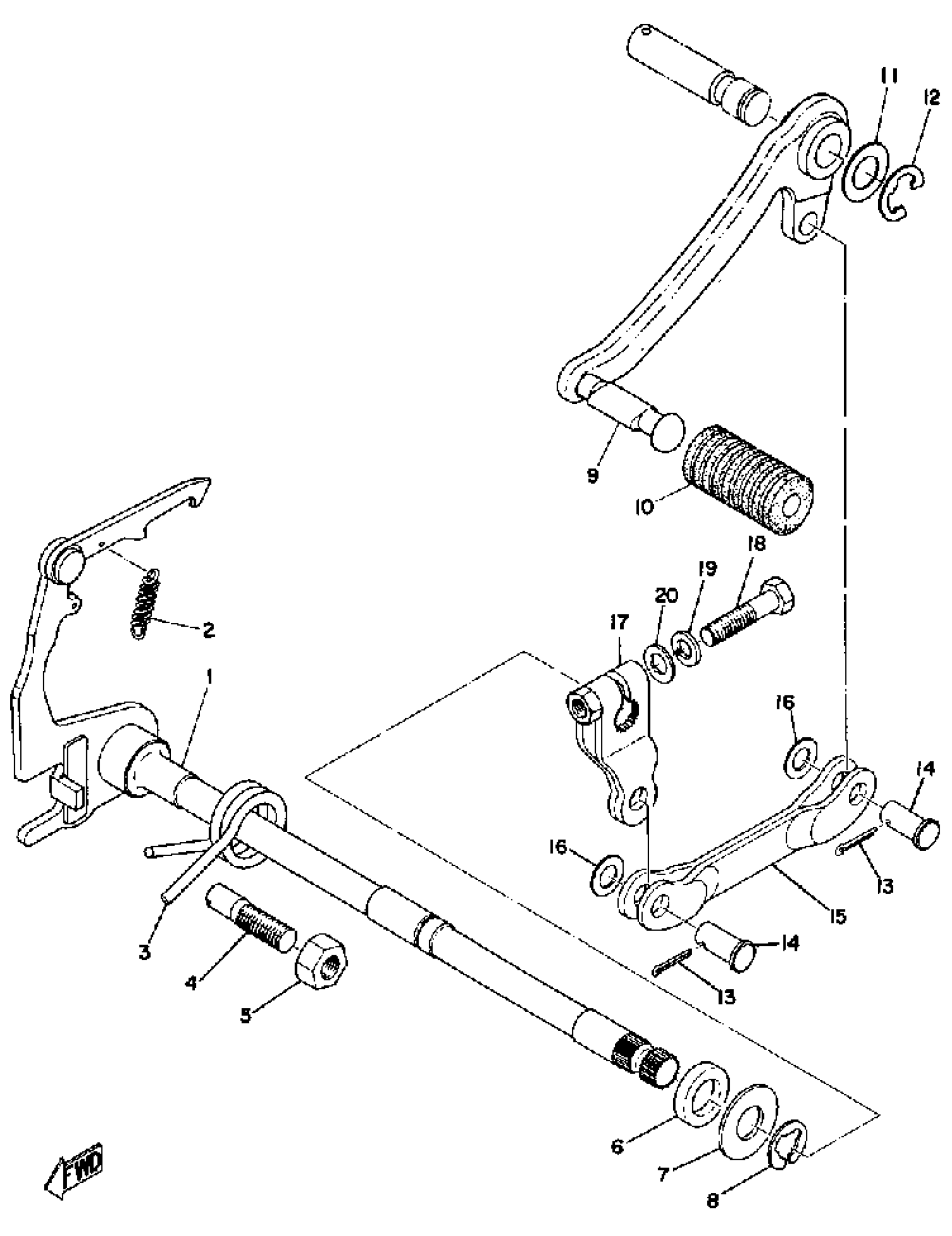

Yamaha LS2 (LS2) 1972 SHIFTER B Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

(307-18101-01-00)

Unavailable

2

SPRING TENSION 132181230000

90506-09009-00

Unavailable

3

SPRING TORSION 132181240000

90508-32207-00

$10.49

4

SCREW, ADJUSTING (367)

90149-08094-00

$7.49

5

NUT(6L2)

95333-08600-00

$2.49

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

PEDAL, SHIFT

307-18111-00-93

Unavailable

10

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

11

WASHER, PLATE

90201-12047-00

$8.49

12

CIRCLIP

99006-10600-00

$9.49

13

PIN, COTTER

91490-16020-00

Unavailable

14

PIN W/HOLE 307181180000

90240-08013-00

$8.49

15

ROD, SHIFT

(326-18115-00-93)

Unavailable

16

WASHER PLATE 141181390000

90201-08085-00

Unavailable

17

ARM, SHIFT

4X8-18112-00-00

Unavailable

18

BOLT(JF7)

97080-06030-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
