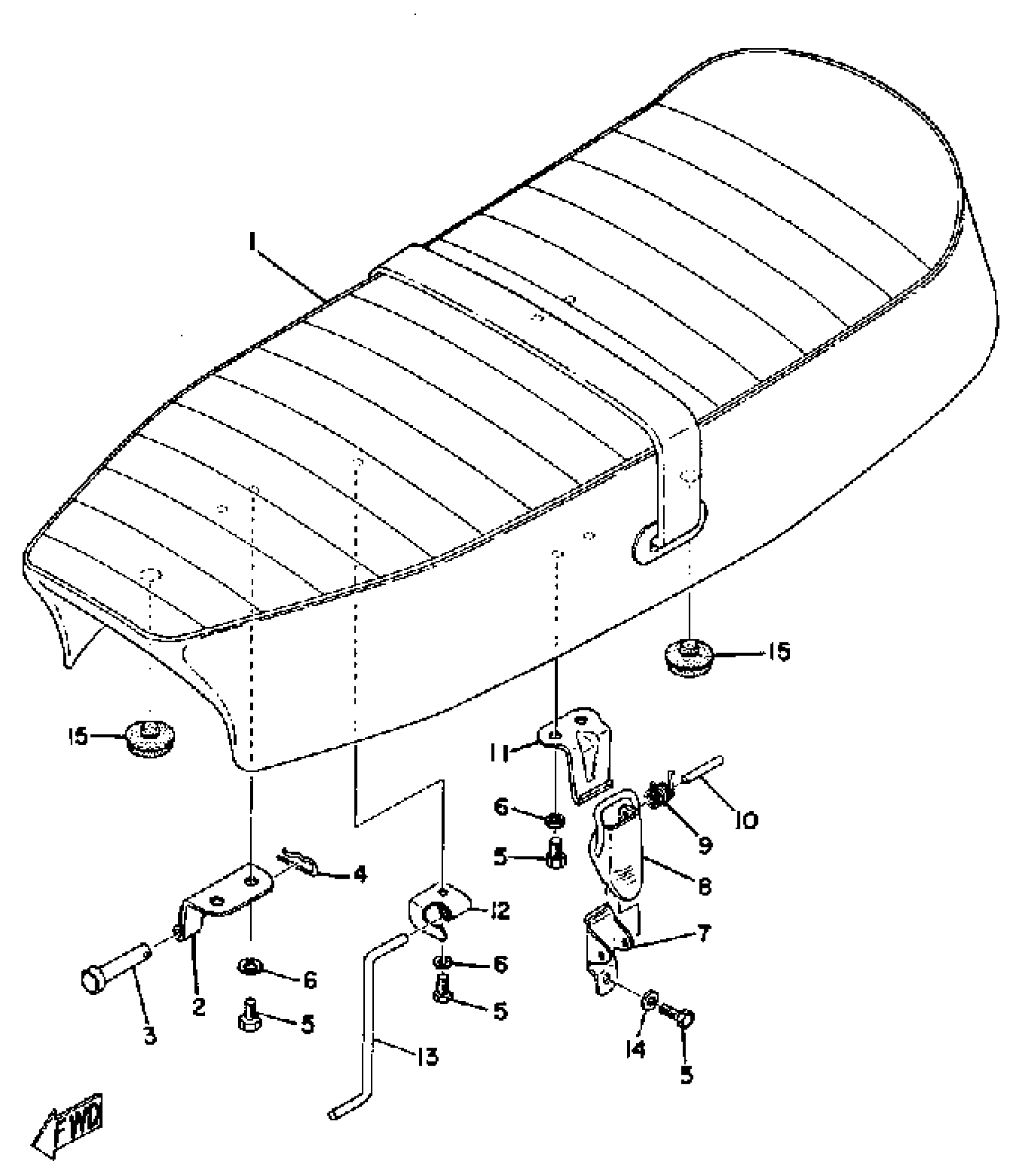

Yamaha LS2 (LS2) 1972 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

(326-24730-01-00)

Unavailable

1

COVER, DOUBLE SEAT

(326-24731-00-00)

Unavailable

2

HINGE, SEAT

307-24726-00-33

Unavailable

3

PIN, CLEVIS

91701-05055-00

$7.49

4

CLIP (156-83525-00)

90468-10050-00

$3.05

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BRACKET, SEAT

214-24718-00-00

Unavailable

8

LEVER, SEAT

214-24776-00-33

Unavailable

9

. SPRING, TORSION

90508-10012-00

Unavailable

10

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

11

BRACKET, SEAT

278-24728-00-00

Unavailable

12

BRACKET, SEAT

(278-24748-00-00)

Unavailable

13

STOPPER

(307-24768-00-00)

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PAD, SEAT

1L9-24741-00-00

Unavailable
