Description

Price

1

REAR ARM

(326-22110-00-33)

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SHAFT, PIVOT

(241-22141-00-00)

Unavailable

4

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49

5

SEAL, GUARD

183-22151-00-00

$8.99

6

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

7

SHK/ABS ASSEMBLY, REAR

(327-22210-20-00)

Unavailable

8

NUT, CROWN (650)

95380-10800-00

Unavailable

9

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

10

WASHER, PLATE (3X3)

90201-15797-00

$9.49

11

BOLT, DOME HEAD

(90106-08027-00)

Unavailable

12

CASE, CHAIN

(326-22311-00-93)

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

. FOOTREST, REAR 1

168-27431-10-00

Unavailable

16

. COVER, RR FOOTREST

307-27433-00-00

Unavailable

17

WASHER, SPEC''L SHAP

(90209-21031-00)

Unavailable

18

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

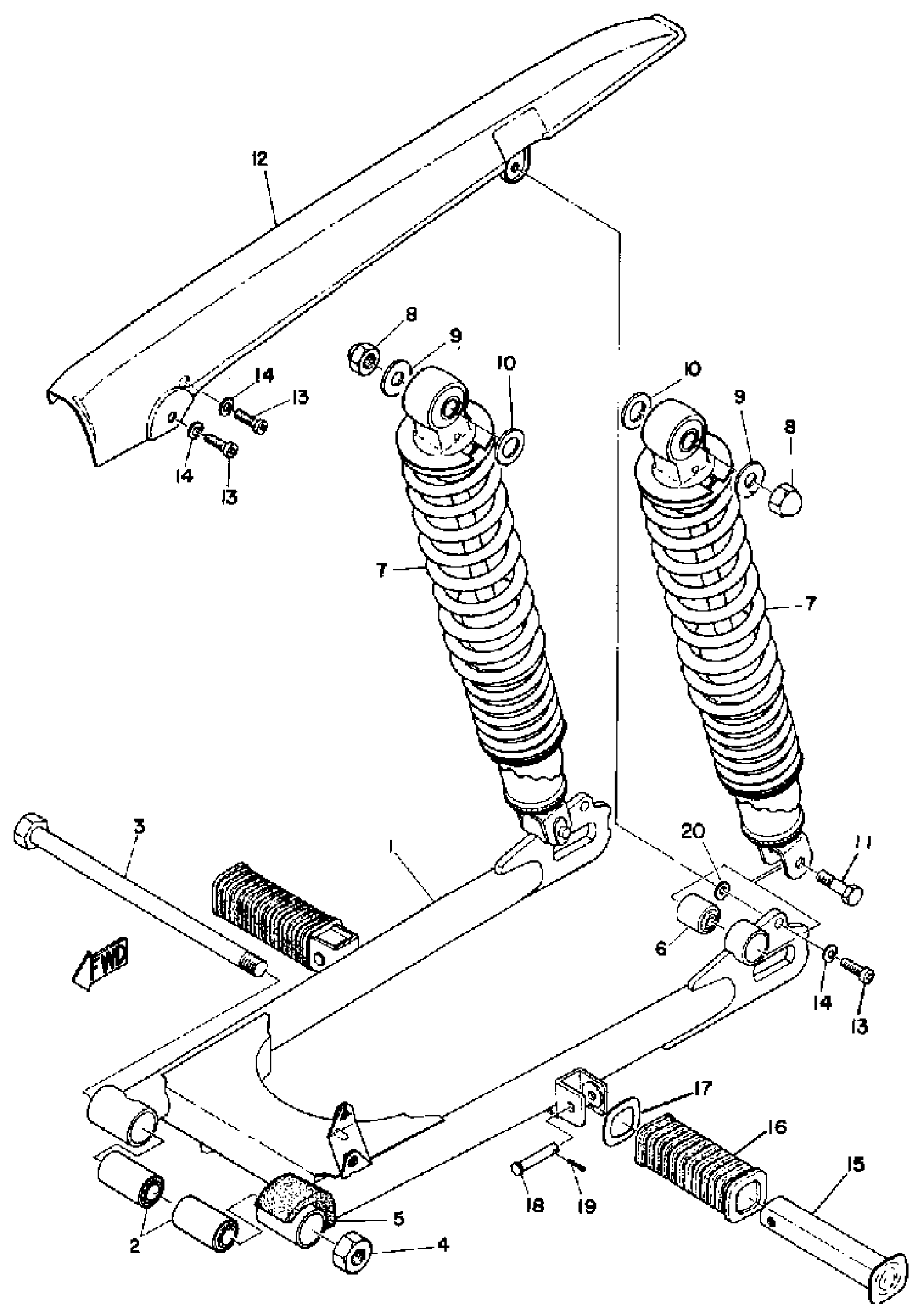

Yamaha LS2 (LS2) 1972 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

REAR ARM

BUSH 1

SHAFT, PIVOT

NUT, HEXAGON 98801-12200

SEAL, GUARD

BUSHING, REAR CUSHION

SHK/ABS ASSEMBLY, REAR

NUT, CROWN (650)

WASHER, PLATE(3BM)

WASHER, PLATE (3X3)

BOLT, DOME HEAD

CASE, CHAIN

SCREW, PAN HEAD(62J)

WASHER, SPRING

. FOOTREST, REAR 1

. COVER, RR FOOTREST

WASHER, SPEC''L SHAP

PIN, CLEVIS (2F9)

PIN, COTTER
