1972 Yamaha LS2 (LS2) OIL Pump Diagram

← All diagrams

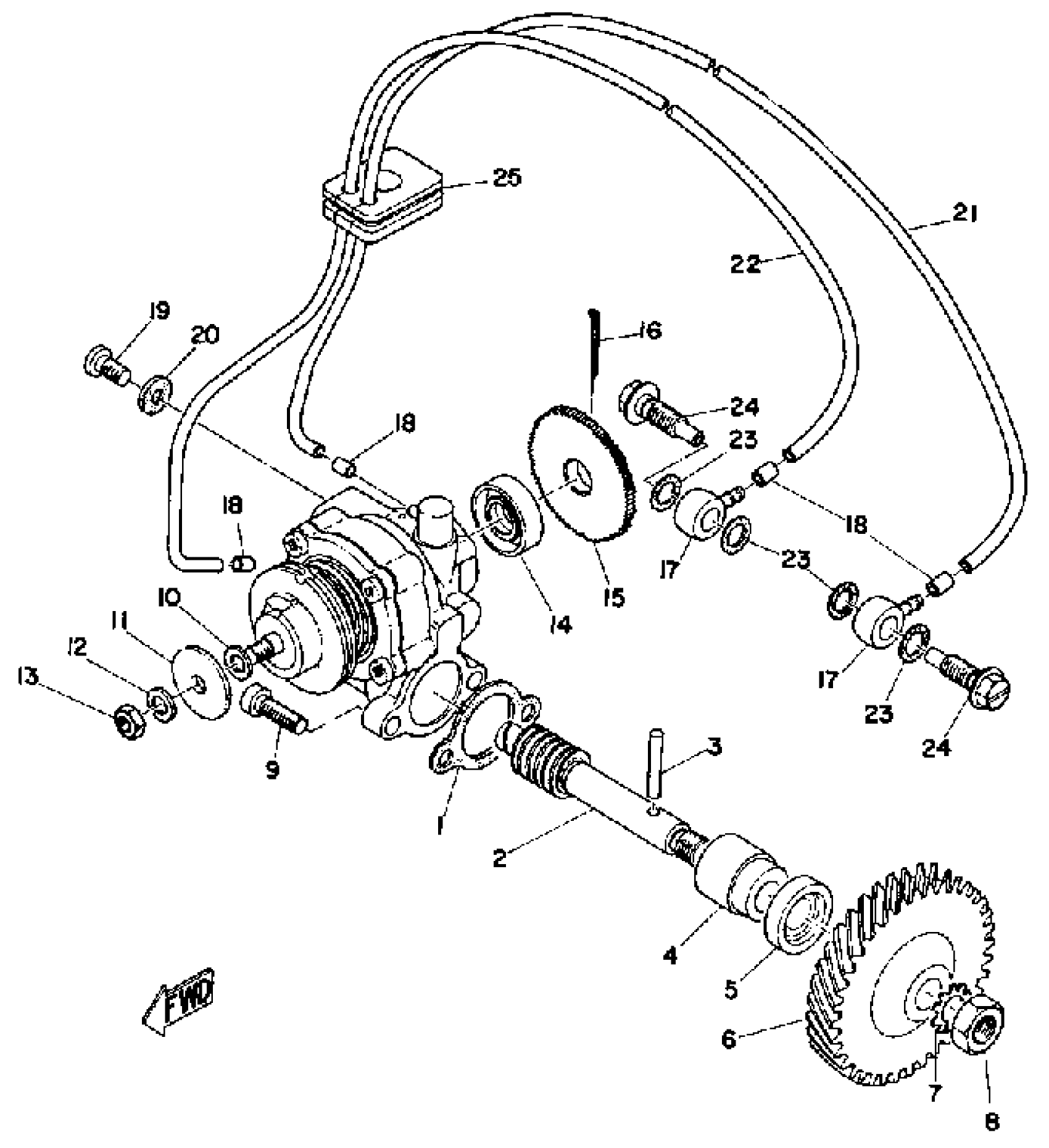

Find the part on the OIL Pump diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LS2 (LS2) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(326-13101-02-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

(132-13175-01-00)

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

GEAR, PUMP DRIVE

(132-13178-01-00)

1
Out of stock

7

WASHER (688)

92990-08400-00

1

$3.46

In stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

11

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

15

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

SCREW, BIND

98980-04008-00

1

$3.26

In stock

20

GASKET 137131870000

90430-04004-00

—
Out of stock

21

HOSE (L700)

90445-05M07-00

1
Out of stock

22

HOSE (L700)

90445-05M07-00

1
Out of stock

23

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

24

BOLT, UNION

90401-06011-00

1
Out of stock

25

HOLDER, OIL PIPE

(293-13174-00-00)

1
Out of stock
