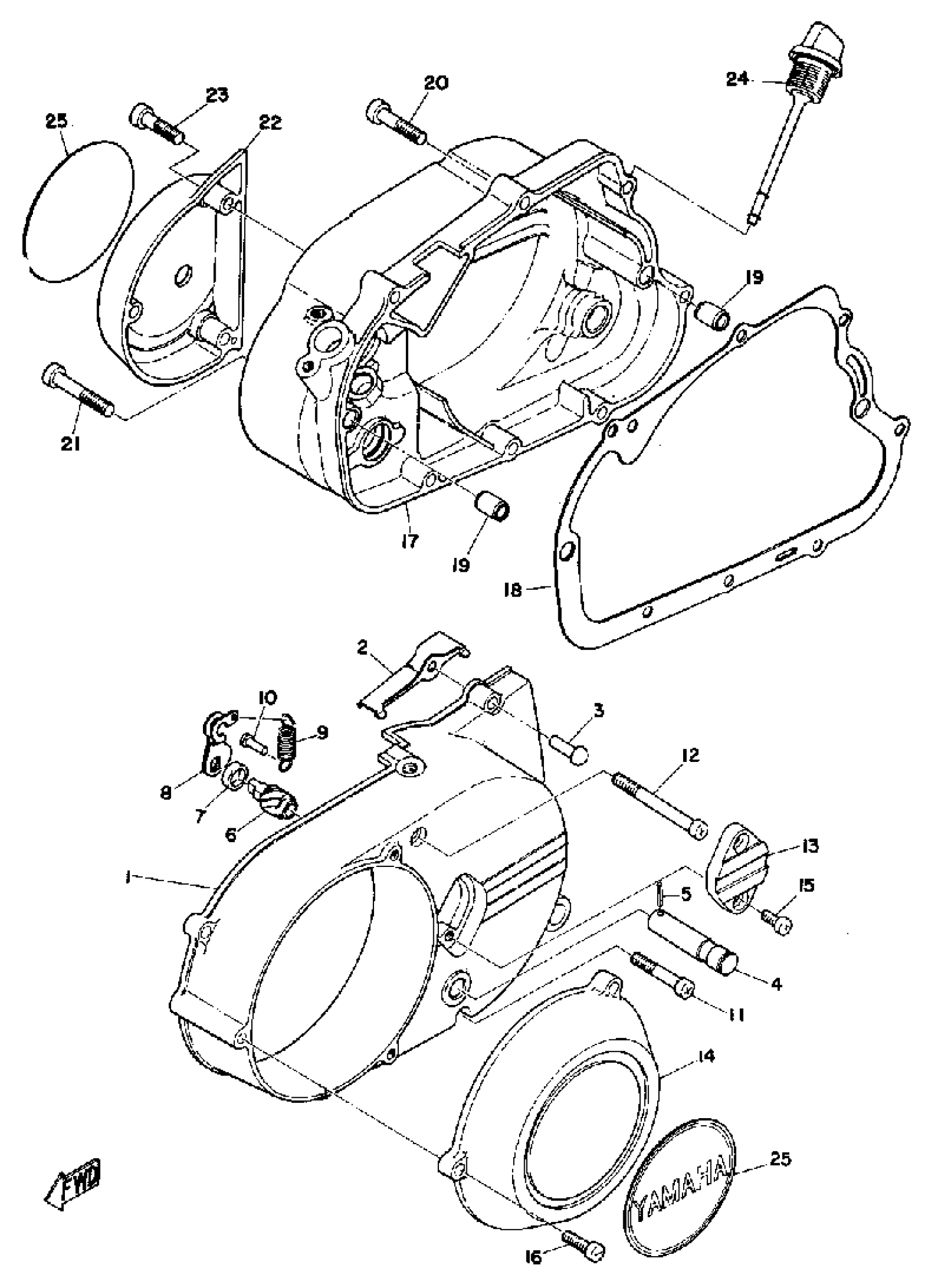

Yamaha LS2 (LS2) 1972 CRANKCASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY L

(326-15410-00-00)

Unavailable

2

COVER, CHAIN CASE

(183-15418-01-00)

Unavailable

3

RIVET

(90266-06005-00)

Unavailable

4

AXLE, PAWL HOLDER

(307-18188-00-00)

Unavailable

5

PIN, SPRING

91690-30014-00

Unavailable

6

SCREW, PUSH

241-16341-01-00

$31.99

7

SEAL 0IL (2V7)

93104-10085-00

$9.49

8

LEVER, PUSH

241-16342-00-00

$6.99

9

SPRING TENSION 132163450000

90506-10019-00

$7.49

10

HOOK, SPRING

132-16346-00-00

$9.99

11

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

12

SCREW, BIND (JH1)

98580-06560-00

Unavailable

13

COVER, CAP

(396-15417-00-00)

Unavailable

14

COVER, GENERATOR

(326-15415-00-00)

Unavailable

15

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

COVER, CRANKCASE R

(396-15421-00-00)

Unavailable

18

GASKET, CRANK CASE COVER (R.H)

252-15451-01-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

21

SCREW PAN HEAD

98580-06040-00

Unavailable

22

COVER, OIL PUMP

(326-15416-00-00)

Unavailable

23

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

24

PLUG, OIL

(307-15363-00-00)

Unavailable

25

COVER, GENERATOR R

(307-15425-00-00)

Unavailable
