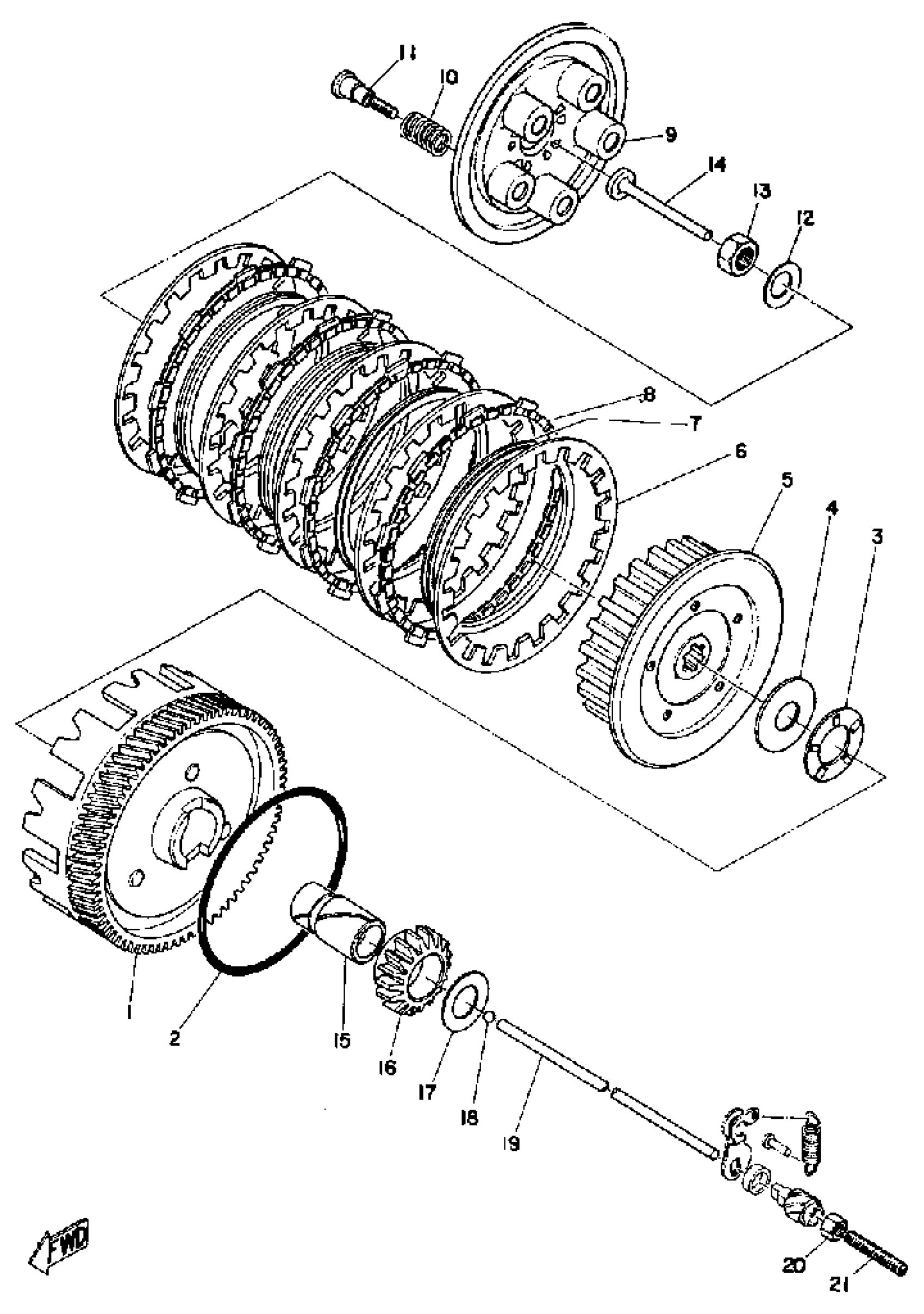

Yamaha LS2 (LS2) 1972 CLUTCH Diagram

PRI DRVN GEAR

(326-16150-00-00)

Unavailable

CLUTCH ASSEMBLY

(326-16301-00-00)

Unavailable

RING, FRICTION

132-16369-00-00

$9.99

. BEARING, FLAT #41

93341-22302-00

Unavailable

PLATE, THRUST

131-16154-00-00

Unavailable

. BOSS, CLUTCH

132-16371-02-00

Unavailable

PLATE, CLUTCH 1

336-16324-10-00

$18.49

RING, CUSHION

137-16367-00-00

$17.49

PLATE, FRICTION

3HA-16321-00-00

$31.99

PLATE, PRESSURE

132-16351-00-00

$55.99

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

ROD,PUSH (1)

137-16356-00-00

$31.99

SPACER

(90560-17158-00)

Unavailable

GEAR, KICK PINION

(132-15631-00-00)

Unavailable

PLATE, THRUST

122-16164-00-00

Unavailable

BALL

93501-04011-00

Unavailable

ROD, PUSH 2

307-16357-00-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

BOLT SET 241163430000

90113-06013-00

Unavailable
