1972 Yamaha LS2 (LS2) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1972 Yamaha LS2 (LS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

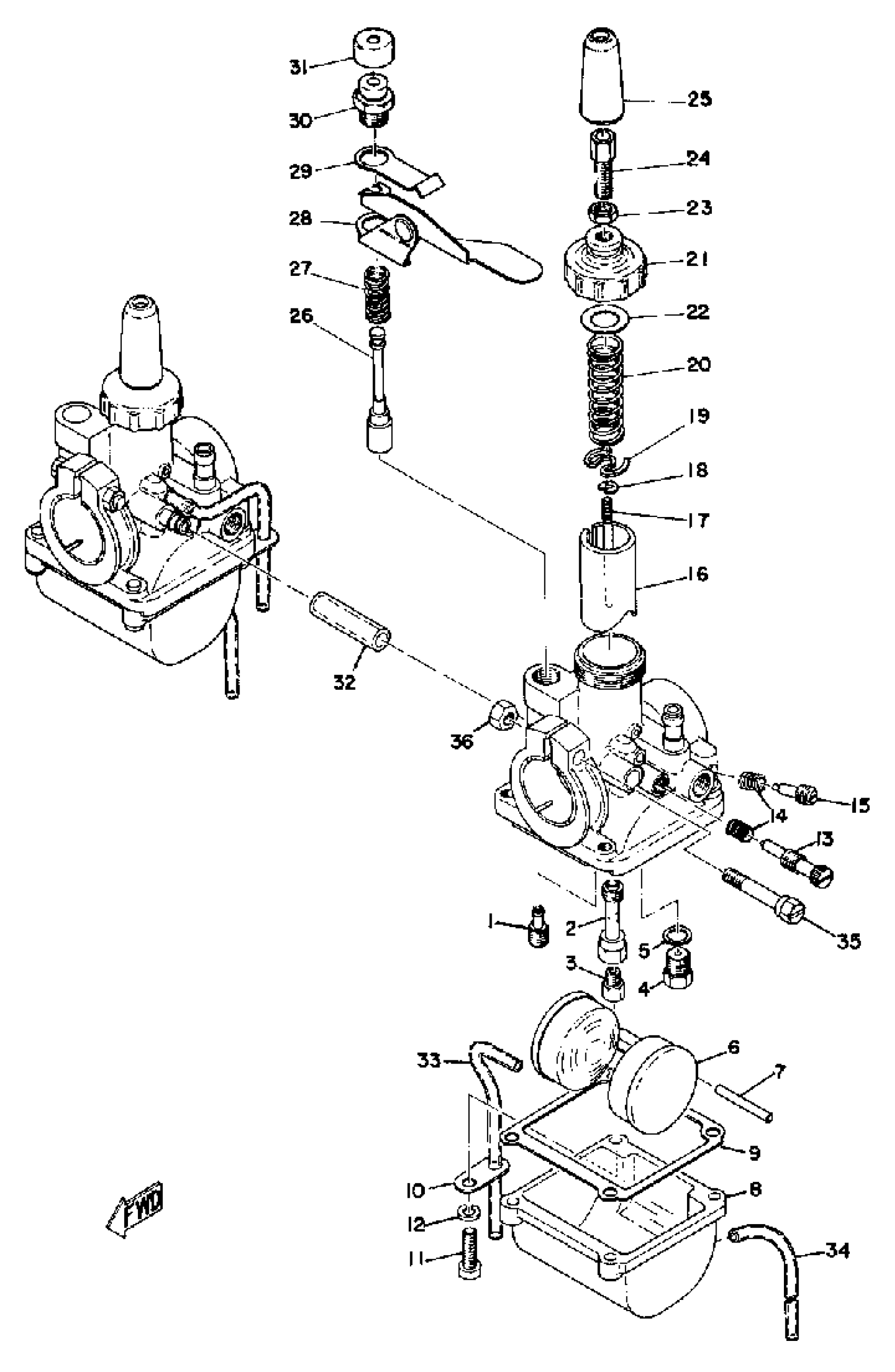

1972 Yamaha LS2 (LS2) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 15)

193-14142-15-A0

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(326-14101-00-00)

1
Out of stock

2

NOZZLE, MAIN

(164-14141-30-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(326-14102-00-00)

1
Out of stock

3

JET, MAIN #65

(137-14143-13-00)

1
Out of stock

3

JET, MAIN (#70)

137-14143-14-00

1
Out of stock

3

JET, MAIN #75

(137-14143-15-00)

1
Out of stock

3

. JET, MAIN #80

137-14143-16-00

1
Out of stock

4

VALVE SEAT ASSY

353-14190-15-00

—

$36.18

In stock

5

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

6

. FLOAT

164-14185-00-00

1
Out of stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

BODY, FLOAT CHMBR 1

(174-14181-01-00)

1
Out of stock

8

BODY, FLOAT CHMBR 2

(307-14183-00-00)

1
Out of stock

9

GASKET, FLOAT CHAMBER

164-14184-00-00

1

$14.25

In stock

10

PLATE

132-14146-00-00

—

$6.65

In stock

11

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

13

THROTTLE SCREW SET

53L-14103-00-00

—
Out of stock

14

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

15

AIR SCREW SET

22K-14104-00-00

—

$9.95

In stock

16

VALVE, THROTTLE 1

(183-14112-20-00)

1
Out of stock

16

VALVE, THROTTLE 2

(183-14113-20-00)

1
Out of stock

17

NEEDLE

(134-14116-12-00)

1
Out of stock

18

CLIP

3FA-14137-00-00

—

$6.80

In stock

19

SEAT, SPRING

212-14136-00-00

—

$7.86

In stock

20

SPRING, THROTTLE VALVE

174-14131-01-00

—

$6.83

In stock

21

TOP, MIXING CHAMBER

(174-14158-01-00)

1
Out of stock

22

GASKET

(183-14126-00-00)

1
Out of stock

23

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

24

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

25

CAP

(174-14169-01-00)

1
Out of stock

26

. PLUNGER, STARTER

174-14171-00-00

1
Out of stock

27

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

28

LEVER, STARTER 1

(307-14175-00-00)

1
Out of stock

29

PLATE, STARTER LVR

(174-14178-00-00)

1
Out of stock

30

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

31

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

32

PIPE

(307-14149-00-00)

1
Out of stock

33

PIPE

23F-14197-00-00

—

$24.11

In stock

34

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

35

. SCREW, BODY FITTING

127-14125-01-00

1
Out of stock

36

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock
