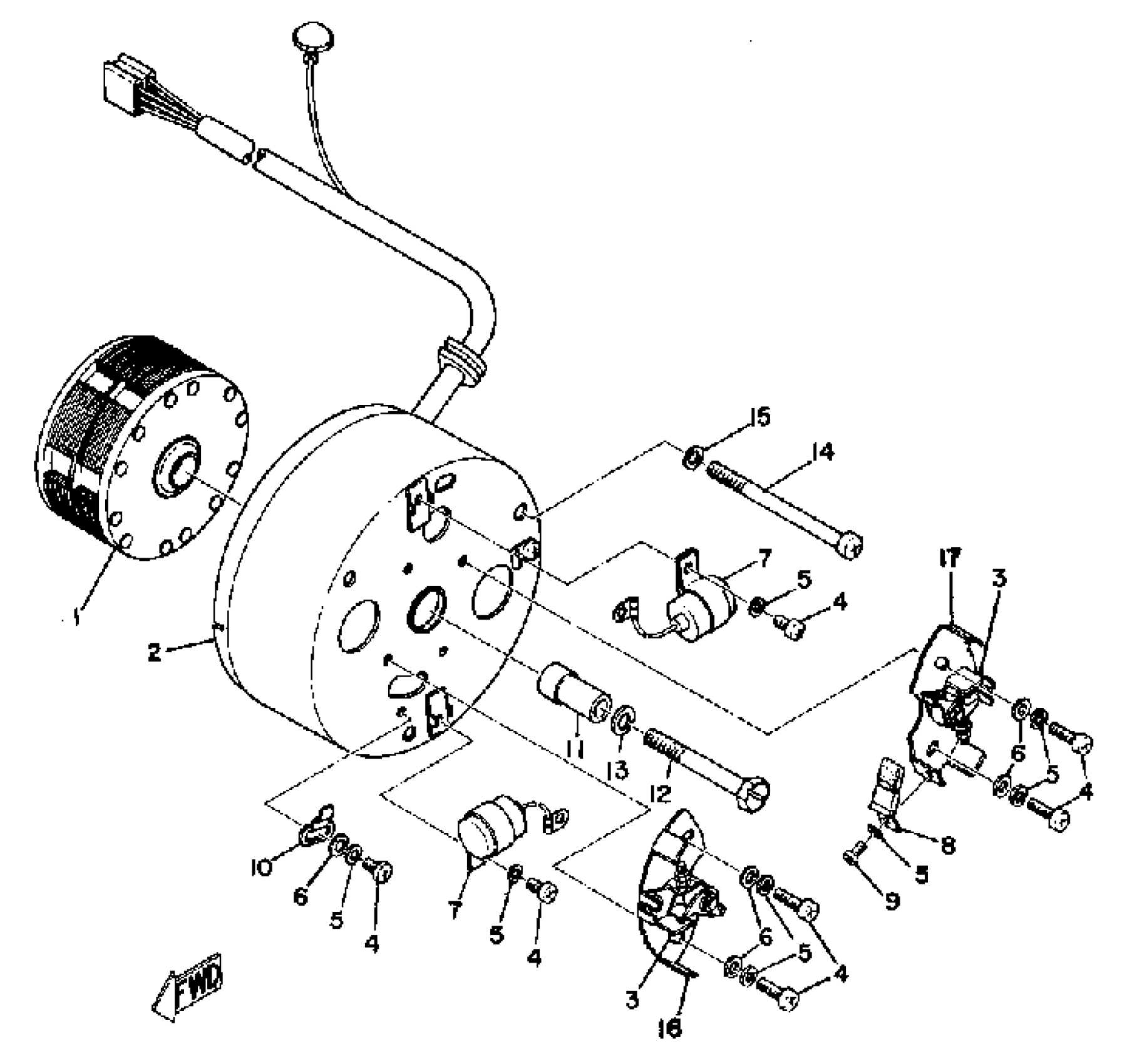

Yamaha LS2 (LS2) 1972 A - C - MAGNET GENERATOR Diagram

#

Description
Price

1

AC MAGNET GEN ASSEMBLY

(307-81400-11-00)

Unavailable

1

ROTOR ASSEMBLY

(307-81450-10-00)

Unavailable

2

STATOR ASSEMBLY

(307-81410-11-00)

Unavailable

3

CONTACT BREAKER ASSY

183-81421-19-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

.. CONDENSER 1

183-81425-11-00

Unavailable

8

LUBRICATOR

(183-81431-10-00)

Unavailable

9

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

10

PLATE, TIMING

(183-81432-10-00)

Unavailable

11

CAM

(183-81451-13-00)

Unavailable

12

. SCREW, HEXAGON

90143-07022-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

SCREW PAN HEAD

98580-06575-00

$12.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

PLATE, BREAKER

(183-81428-10-00)

Unavailable

17

PLATE, BREAKER

(183-81429-10-00)

Unavailable
