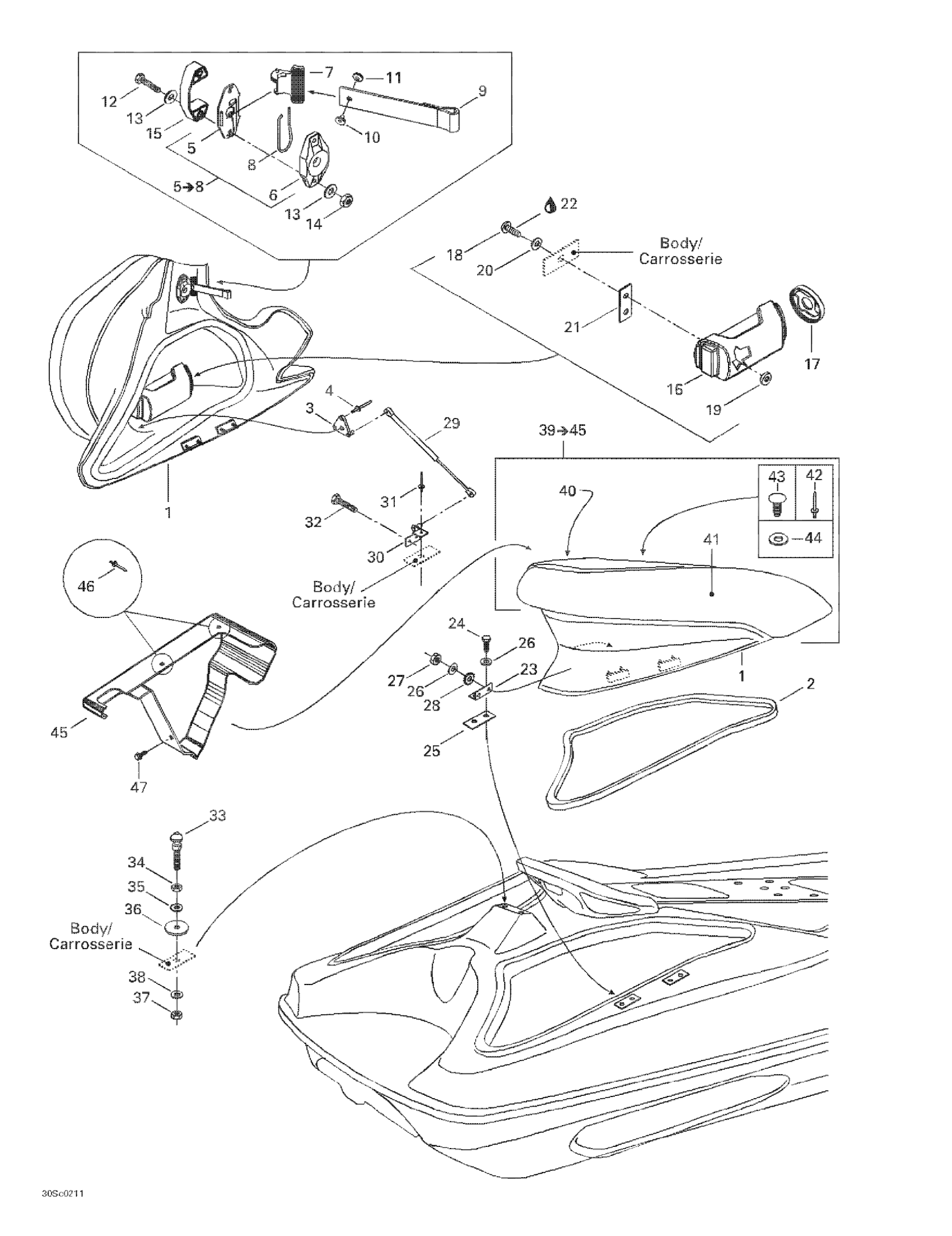

Sea-doo LRV DI, 5771, 2003 Body 3 Diagram

#

Description
Price

1

RH Side Door Ass'y (Starboard)

204071638

Unavailable

LH Side Door Ass'y (Port)

204071642

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Shock Bracket

204071673

Unavailable

4

Pop Rivet 3/16"

293150008

$0.50

5

Latch Ass’y | Includes 36 to 40

204070577

Unavailable

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Spring

269700017

$9.19

9

Strap

204071051

Unavailable

10

Ratchet Rivet

293150070

Unavailable

11

Ratchet Rivet

293150073

Unavailable

12

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

SHIM - Call your local BRP dealership

269700015

Unavailable

16

Storage Housing (Port Side Door)

204630105

Unavailable

17

Storage Cap

269500604

Unavailable

18

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Flat Washer M6, Stainless

234062600

$0.77

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

Hinge

204070705

Unavailable

24

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

25

Insert

204070720

Unavailable

26

Flat Washer 5 mm, Stainless

234052600

$0.77

27

Hex. Elastic Nut M5 | X

232551600

$1.15

28

External Serrated Lock Washer 6 mm

234461608

$1.15

29

Retainer Cylinder

204071054

Unavailable

30

Cylinder Support

204070678

Unavailable

31

Pop Rivet 3/16"

293150039

$1.49

32

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

33

Latch Stud

204100065

Unavailable

34

Hex. Jam Nut M10

232100600

$2.22

35

Flat Washer 10 mm, Stainless

234002600

$2.22

36

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

37

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

38

Flat Washer

204100043

Unavailable

39

RH Sundeck Ass'y (Starboard) | Includes 39 - 45.

204611164

Unavailable

LH Sundeck Ass'y (Port)

204611178

Unavailable

40

RH Cushion Ass'y (Starboard)

204612031

Unavailable

LH Cushion Ass'y (Port)

204612032

Unavailable

41

RH Spoiler Ass'y (Starboard)

204612029

Unavailable

LH Spoiler Ass'y (Port)

204612030

Unavailable

42

Pop Rivet 3/16"

293150005

$0.52

43

Black, Dart

293730006

$0.99

44

Flat Washer M6, Stainless

234062600

$0.77

45

RH Cover Cap (Starboard)

204070707

Unavailable

LH Cover Cap (Port)

204070706

Unavailable

46

Pop Rivet 3/16"

293150008

$0.50

47

Flange Screw K40 X 20

241642060

$1.15
