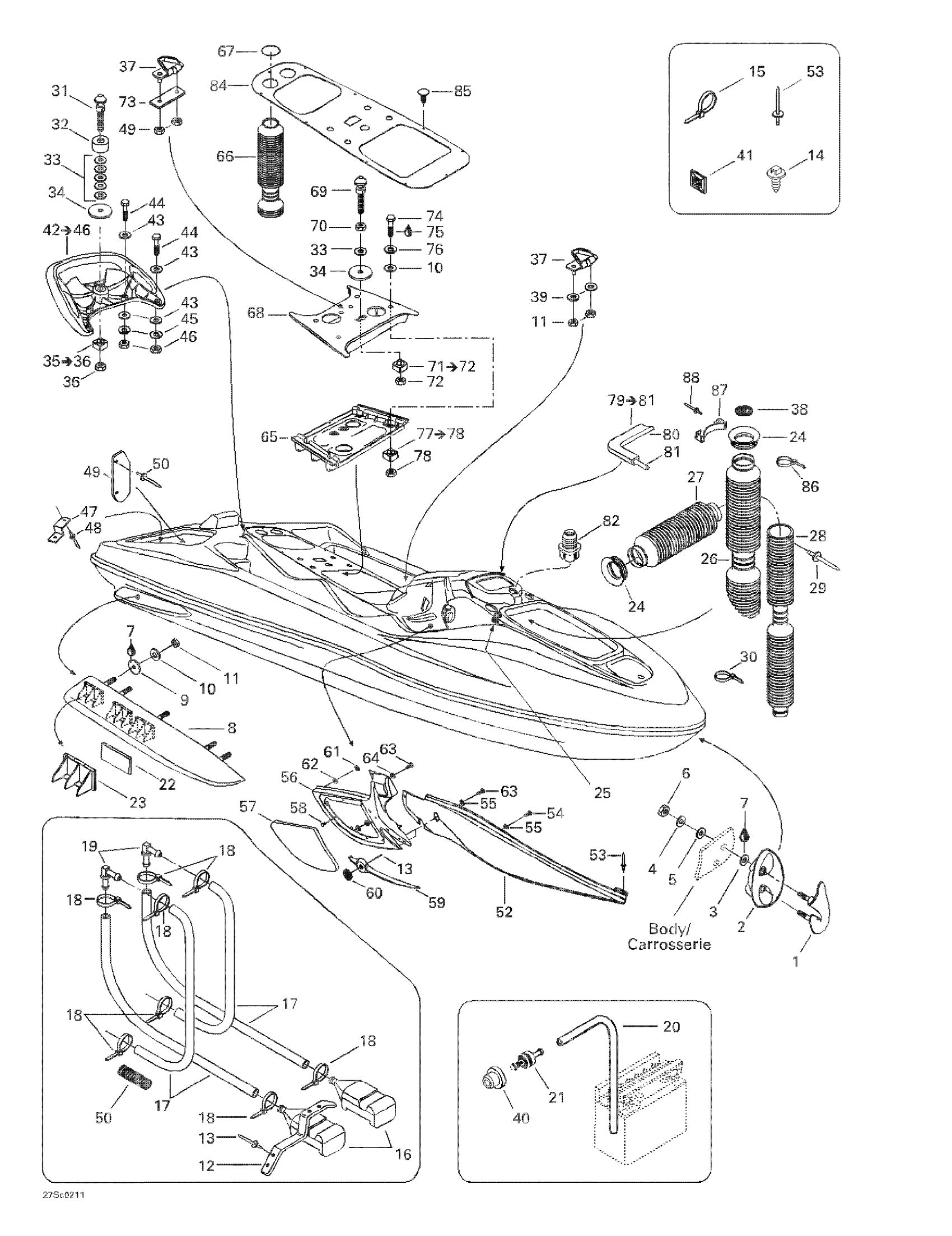

Sea-doo LRV DI, 5771, 2003 Body 1 Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8

232581600

$1.48

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

9

GASKET - Call your local BRP dealership

293250026

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

13

Pop Rivet 3/16"

293150008

$0.50

14

Mount Dart

293730040

$1.04

15

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

16

Bailer Screen

292000688

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

18

Tie Wrap 94 mm | 4X4

293750001

$1.03

19

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

20

Hose 6 Mm 15000Mm Long

219704360

$132.49

21

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

22

CUSHION - Call your local BRP dealership

292000414

Unavailable

23

Insert

293450149

Unavailable

24

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

25

Protector

291001512

Unavailable

26

Vent Hose

291001772

Unavailable

27

Vent Hose

291001775

Unavailable

28

Vent Hose

204070575

Unavailable

29

Pop Rivet 3/16"

293150008

$0.50

30

Tie Wrap 368 mm

293750008

$1.04

31

Stud Latch

291000664

Unavailable

32

Rubber Pad

293830025

Unavailable

33

Flat Washer 10 mm, Stainless

234002600

$2.22

34

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

35

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

36

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

37

Seat Hook

291001479

Unavailable

38

Restrictor

291001617

$15.99

39

Flat Washer M6, Stainless

234062600

$0.77

40

Grommet

293720029

$1.59

41

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

42

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

43

Flat Washer M6, Stainless

234062600

$0.77

44

Hex. Screw M6 X 40

207064060

$1.69

45

Lock Washer Helical M6

234161601

$1.15

46

Hex. Nut M6

232061600

$1.15

47

Retaining Plate

204050341

Unavailable

48

Pop Rivet 3/16"

293150014

$1.09

49

Storage Extension

204050197

Unavailable

50

Pop Rivet 3/16"

293150008

$0.50

51

Not Available As Spare Part - Friction Washer

Unavailable

52

LH Moulding

291001403

Unavailable

RH Moulding

291001404

Unavailable

53

RIVET - Call your local BRP dealership

293150065

Unavailable

54

Hex. Flange Screw K40 X 16

241141660

$1.48

55

Flat Washer 5 mm, Stainless

234052600

$0.77

56

RH Intake Grille (Starboard)

269500715

Unavailable

LH Intake Grille (Port)

269500714

Unavailable

57

RH Knee Pad

204070954

Unavailable

LH Knee Pad

204070956

Unavailable

58

Black, Dart

414644300

$0.98

59

FINITION PLATE - Call your local BRP dealership

269500716

Unavailable

60

BRP Logo 48mm

516008738

$16.99

61

Hex. Jam Nut

204100060

Unavailable

62

Flat Washer M6, Stainless

234062600

$0.77

63

Hex. Flange Screw K40 X 16

241141660

$1.48

64

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

65

BRIDGE LOWER - Call your local BRP dealership

291001281

Unavailable

66

Vent Hose

291001772

Unavailable

67

O-Ring

293300063

Unavailable

68

Bridge Upper

291000851

Unavailable

69

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

70

Hex. Jam Nut M10

232100600

$2.22

71

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

72

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

73

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

74

Hex. Screw M6 X 70

207067060

$5.61

75

Loctite 243, 10 ml

293800060

$21.49

76

Lock Washer Helical M6

234161601

$1.15

77

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

78

Hex. Nut M6

232061600

$1.15

79

Rubber Pad | Includes 79 - 81.

293830090

Unavailable

80

Was 293200017 Neoprene Seal

219704365

$149.99

81

Hose 6 Mm 15000Mm Long

219704360

$132.49

82

GROMMET - Call your local BRP dealership

293720042

Unavailable

83

Tie-Rap 180 mm

414115200

$0.11

84

Engine Access Panel

204070561

Unavailable

85

Black, Dart

293730006

$0.99

86

Tie Rap

293750019

$3.29

87

Support

274000891

Unavailable

88

Pop Rivet 3/16"

293150043

$2.09
