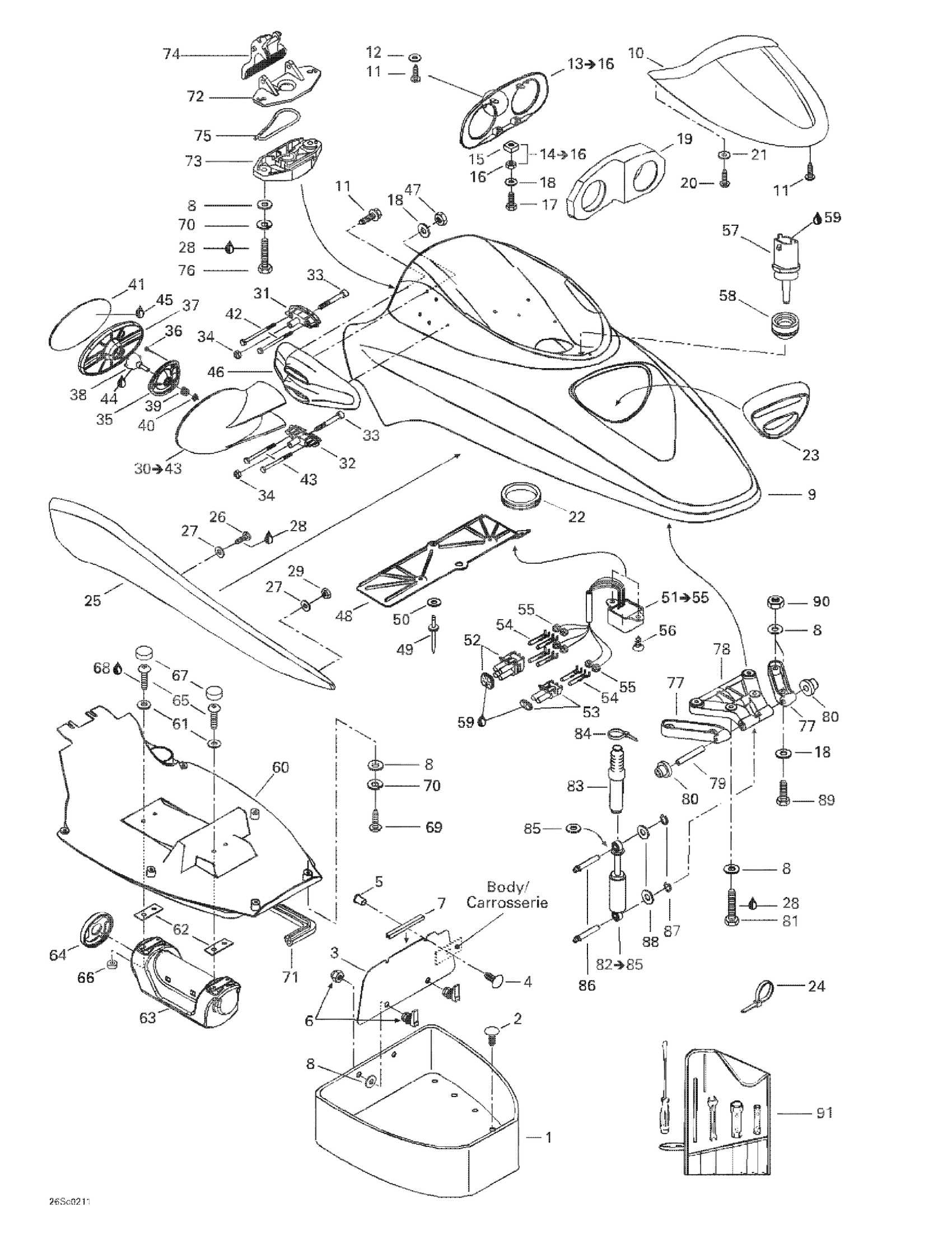

Sea-doo LRV DI, 5460, 2002 Front Storage Compartment Diagram

#

Description
Price

1

Front Tray

204050218

Unavailable

2

Black, Dart

293730006

$0.99

3

Front Access Panel

204630102

Unavailable

4

Black Dart

293730014

$0.99

5

Grommet

293720029

$1.59

6

LATCH ASS'Y - Call your local BRP dealership

204050309

Unavailable

7

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

8

Stainless Flat Washer M6

234061600

$0.33

9

Storage Cover Upper

204620238

Unavailable

10

Deflector

204620201

Unavailable

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

DASH BOARD - Call your local BRP dealership | Includes 13 - 16.

269500588

Unavailable

14

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

15

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Hex. Screw M6 X 25

207162560

$1.47

18

Flat Washer M6, Stainless

234062600

$0.77

19

GAUGE SUPPORT - Call your local BRP dealership

269500585

Unavailable

20

Screw

211000098

$3.80

21

Flat Washer

211200007

Unavailable

22

Rubber Ring

570276900

Unavailable

23

Intake Grille

269500746

Unavailable

24

Tie Wrap 142 mm

293750002

$1.25

25

LH Moulding

269500712

Unavailable

RH Moulding

269500713

Unavailable

26

Socket Screw M6 X 16

205461660

$7.48

27

Flat Washer M6, Stainless

234062600

$0.77

28

Loctite 243, 10 ml

293800060

$21.49

29

Hex. Jam Nut

204100060

Unavailable

30

RH Mirror Ass'y | Includes 30 - 43.

204620203

Unavailable

LH Mirror Ass'y

204620206

Unavailable

31

ADAPTOR - Call your local BRP dealership

269500546

Unavailable

32

ADAPTOR - Call your local BRP dealership

269500547

Unavailable

33

Socket Head Screw M8 X 75

205087560

Unavailable

34

Hex. Elastic Nut M8

232581600

$1.48

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Hex. Flange Screw K40 X 16

241141660

$1.48

37

Not Available As Spare Part - Friction Washer

Unavailable

38

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

39

Mirror Spring

269500453

$10.49

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

MIRROR - Call your local BRP dealership

269500454

Unavailable

42

Hex. Screw M6 x 80

207068060

$2.43

43

Hex. Screw M6 X 70

207067060

$5.61

44

Synthetic Grease, 400 G

293550010

Unavailable

45

Silicone Sealant 51388, 300 ml

296000309

$36.99

46

RH Support (Mirror)

204620207

Unavailable

LH Support (Mirror)

204620209

Unavailable

47

Hex. Elastic Stop Nut M6

232561600

$1.15

48

Mounting Plate

278000857

Unavailable

49

Pop Rivet 3/16"

293150008

$0.50

50

Flat Washer 5 mm

234051500

$0.73

51

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

52

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

53

Male Connector, 2 Circuits

278000220

$15.49

54

Female Terminal

278000223

$3.19

55

Wire Seal

278000218

$4.39

56

Black, Dart

293730016

$9.97

57

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

58

INSULATOR - Call your local BRP dealership

278001054

Unavailable

59

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

60

Lower Storage Cover

269500660

Unavailable

61

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

62

GASKET - Call your local BRP dealership

293250037

Unavailable

63

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

64

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

65

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable

67

Cap Screw Cover

204620183

Unavailable

68

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

69

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

70

Lock Washer Helical M6

234161601

$1.15

71

Seal Neoprene (Meter)

293200060

Unavailable

72

Latch Ass'y

269700109

$24.99

73

Latch Ass'y

269700109

$24.99

74

Latch Lever

269500610

Unavailable

75

Latch Spring

269700017

$9.19

76

Hex. Screw M6 X 25

207162560

$1.47

77

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

78

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

79

AXLE - Call your local BRP dealership

269700024

Unavailable

80

CUSHION - Call your local BRP dealership

293350016

Unavailable

81

Hex. Forming Screw M6 X 20

207162060

$1.29

82

Gas Shock Ass'y | Includes 82 - 85.

269500261

$119.99

83

BELLOW - Call your local BRP dealership

291000919

Unavailable

84

Tie Wrap 94 mm | 4X4

293750001

$1.03

85

Washer

211200034

Unavailable

86

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

87

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

88

Stainless, Flat Washer 8 mm

234081600

$0.55

89

Hex. Screw M6 X 35

207063560

$2.22

90

Hex. Elastic Stop Nut M6

232561600

$1.15

91

Owners Tool Kit

295500783

Unavailable
