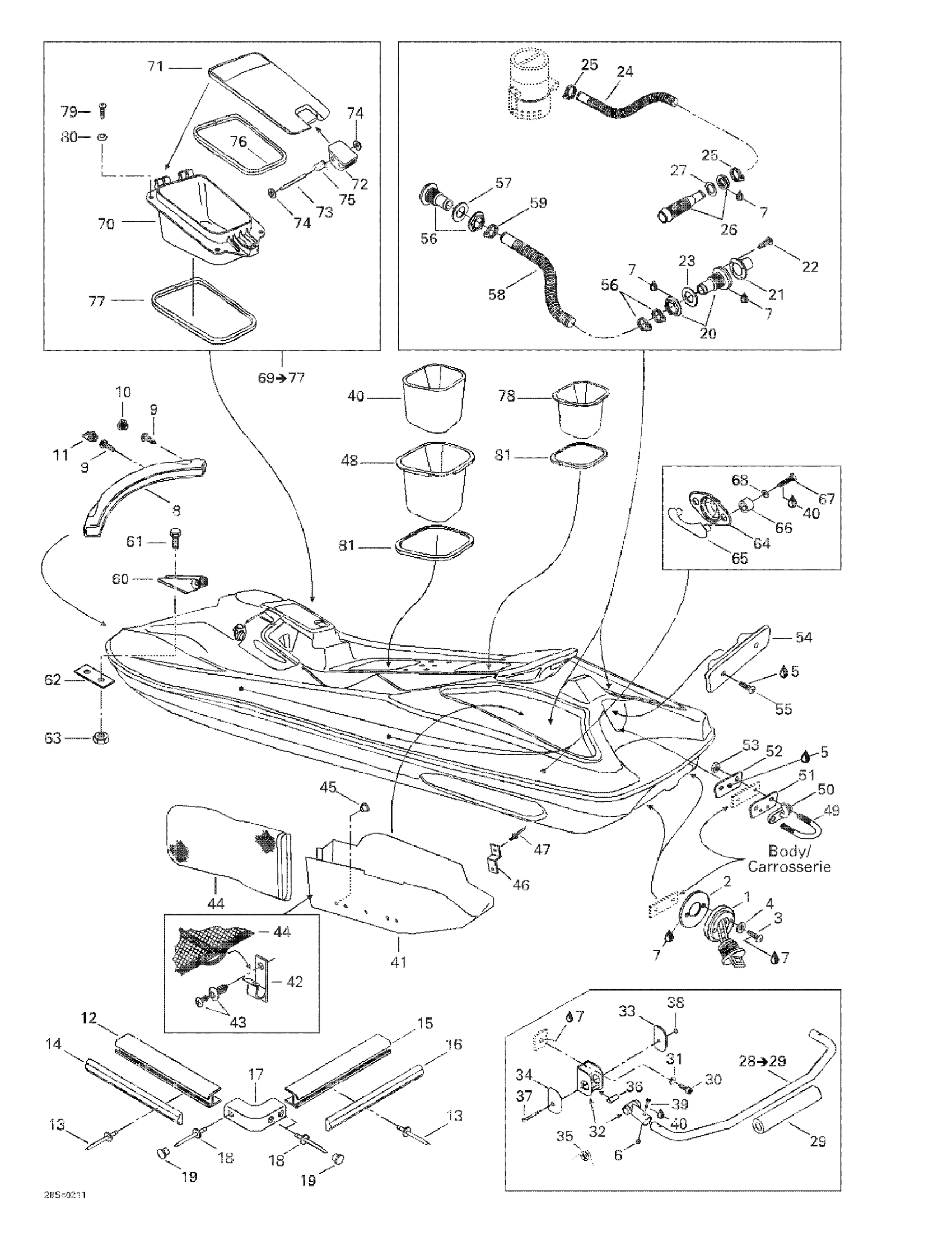

Sea-doo LRV DI, 5460, 2002 09- Body Diagram
#
1
Drain Plug
292000187
$14.49
2
GASKET - Call your local BRP dealership
293250030
Unavailable
3
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
4
Flat Washer 4 mm, Stainless
234041600
$1.15
5
Loctite 243, 10 ml
293800060
$21.49
6
Nut M6 | Model-Australie, Brezil, Europe
232361600
$4.34
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
9
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
10
Bumper Plug, Black
291001519
$5.49
11
Bumper Plug, Black
291001040
$7.39
12
Black, Side Bumper
204050270
$179.99
13
Pop Rivet 3/16"
293150005
$0.52
14
SIDE BUMPER TRIM - Call your local BRP dealership
204050271
Unavailable
15
Black, Rear Bumper
204050278
Unavailable
16
Black, Rear Bumper Trim - Call your local BRP dealership
204050279
Unavailable
17
Bumper Corner
291002244
$48.99
18
Pop Rivet 3/16"
293150013
$1.37
19
Bumper Plug, Black
291000339
$2.99
20
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
21
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
22
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
25
Tridon Clamp
293650016
$10.99
26
Fitting
293710162
$13.49
27
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
28
Stair Tube | Includes 28 - 29.
292000590
Unavailable
29
PROTECTOR TUBE - Call your local BRP dealership | GTI LE RFI
292000593
Unavailable
30
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
31
Flat Washer M6, Stainless
234062600
$0.77
32
Support Ass’Y
292000539
Unavailable
33
RH Support Cap
292000540
Unavailable
34
LH Support Cap
292000548
Unavailable
35
RECALL SPRING - Call your local BRP dealership
292000541
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Phillips Screw
211000186
Unavailable
38
NUT-LOCKING 1/4-20 - Call your local BRP dealership
211100061
Unavailable
39
Socket Head Screw M6 X 35
205063560
$2.22
40
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
41
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
42
Clip Cable
414839700
Unavailable
43
SCREW-TUFLOCK PHILLIPS - Call your local BRP dealership
211000088
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Black Plug
291000279
$7.69
46
Retaining Plate
204050341
Unavailable
47
Pop Rivet 3/16"
293150014
$1.09
48
Storage Tray
204620179
Unavailable
49
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
50
Hook | Package LTD
291002351
$69.99
51
Finition Plate
291000544
Unavailable
52
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
53
Hex. Elastic Nut M8
232581600
$1.48
54
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
55
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
56
FITTING - Call your local BRP dealership
293710060
Unavailable
57
GASKET - Call your local BRP dealership
292800106
Unavailable
58
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
59
Norma Clamp
293650074
$17.05
60
SHOCK SUPPORT - Call your local BRP dealership
291000855
Unavailable
61
Hex. Screw M6 X 25
207162560
$1.47
62
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
63
Hex. Elastic Stop Nut M6
232561600
$1.15
64
CARGO HOOK BASE - Call your local BRP dealership
291001195
Unavailable
65
HOOK CARGO CLEATS - Call your local BRP dealership
291001196
Unavailable
66
Spacer
291001203
$13.49
67
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
68
Flat Washer 5 mm, Stainless
234052600
$0.77
69
Gloves Box Ass'y | Includes 69 - 77.
204071410
Unavailable
70
Box Gloves
269500439
Unavailable
71
Door (Box Gloves)
269500438
Unavailable
72
Latch, Black
269500553
$21.99
73
Pin
211400008
$9.10
74
Push Nut | Not shown
211100002
$2.19
75
Latch Spring
291000922
$7.39
76
GASKET - Call your local BRP dealership
293250060
Unavailable
77
Seal 1000Mm Long
219704373
$8.26
78
Rear Tray
204620178
Unavailable
79
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
80
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
81
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
