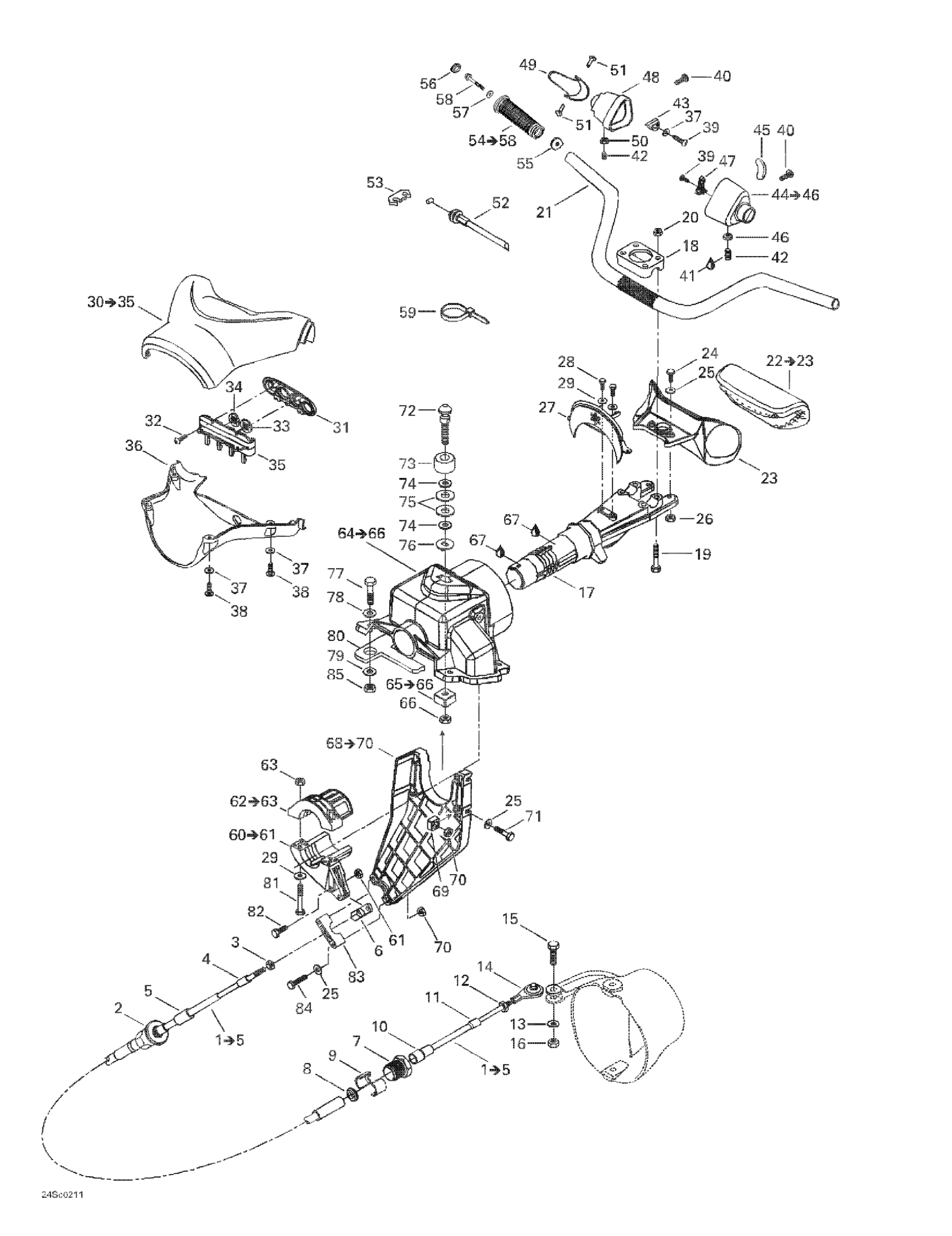

Sea-doo LRV DI, 5460, 2002 Steering System Diagram

#

Description
Price

1

Steering Cable | Includes 1 - 5.

204390205

Unavailable

2

Ajustment Knob

277000782

$22.99

3

Hex. Nut 1/4"-28

211100056

$0.69

4

Wiper Rod

277001582

$11.11

5

End Piece

277001583

$14.49

6

Ball Joint

277001180

$35.99

7

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

8

Rubber Washer

293830063

$1.90

9

Half Ring

277001527

$10.37

10

End Piece

277001583

$14.49

11

Wiper Rod

277001582

$11.11

12

Hex. Nut 1/4"-28

211100056

$0.69

13

Stainless Flat Washer M6

234061600

$0.33

14

Ball Joint

277000775

$51.99

15

Hex. Screw M6 X 35

207063560

$2.22

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Steering Stem

277000562400

Unavailable

18

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

19

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

20

Hex. Elastic Nut M8

232581600

$1.48

21

Handlebar

277000840

Unavailable

22

Handle pad | Includes 22 - 23.

277000891

Unavailable

23

Handle Bar Pad Support

277000687

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.89

25

Stainless Flat Washer M6

234061600

$0.33

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Plate, Black

277000766

Unavailable

28

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

31

RETAINER PLATE - Call your local BRP dealership | LE

277000688

Unavailable

32

Screw K40 X 10

241140060

$1.48

33

Mode Knob | LE

293000079

Unavailable

34

«Set» Knob | LE

293000080

Unavailable

35

Switch Support | LE

277000563

Unavailable

36

Lower Steering Cover

277000808

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.77

38

Hex. Flange Screw K40 X 16

241141660

$1.48

39

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

40

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49

42

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

43

INSERT - Call your local BRP dealership

293450153

Unavailable

44

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

45

Switch Knob

277000306

Unavailable

46

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

47

Retainer Plate

277000845

Unavailable

48

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

49

Throttle Handle

277000214

Unavailable

50

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

51

PIN - Call your local BRP dealership

277000381

Unavailable

52

Throttle Cable

204390301

Unavailable

53

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

54

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Black, Cap

277000203

$9.39

57

Flat Washer M6, Stainless

234062600

$0.77

58

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

59

Tie Wrap 94 mm | 4X4

293750001

$1.03

60

Steering Stem Arm

277000573

Unavailable

61

Hex. Elastic Stop Nut M6

232561600

$1.15

62

Arm Thrust | Includes 43 to 44

277000519

Unavailable

63

Hex. Elastic Stop Nut M6

232561600

$1.15

64

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

65

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

66

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

67

Synthetic Grease, 400 G

293550010

Unavailable

68

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

69

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

70

Hex. Elastic Stop Nut M6

232561600

$1.15

71

Hex. Forming Screw M6 X 20

207162060

$1.29

72

Stud Latch

291000987

Unavailable

73

Rubber Pad

293830025

Unavailable

74

Flat Washer 10 mm, Stainless

234002600

$2.22

75

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

76

Nylon Insert

293450152

Unavailable

77

Hex. Screw M8 X 35

207083560

$1.47

78

Stainless, Flat Washer 8 mm

234081600

$0.55

79

Flat Washer 8 mm, Stainless

234082600

$2.43

80

GASKET - Call your local BRP dealership

293250171

Unavailable

81

Hex. Screw M6 X 25

207162560

$1.47

82

Hex. Screw M6 X 30

211000081

$3.59

83

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

84

Hex. Screw M6 X 50

207065060

$2.22

85

Hex. Elastic Nut M8

232581600

$1.48
