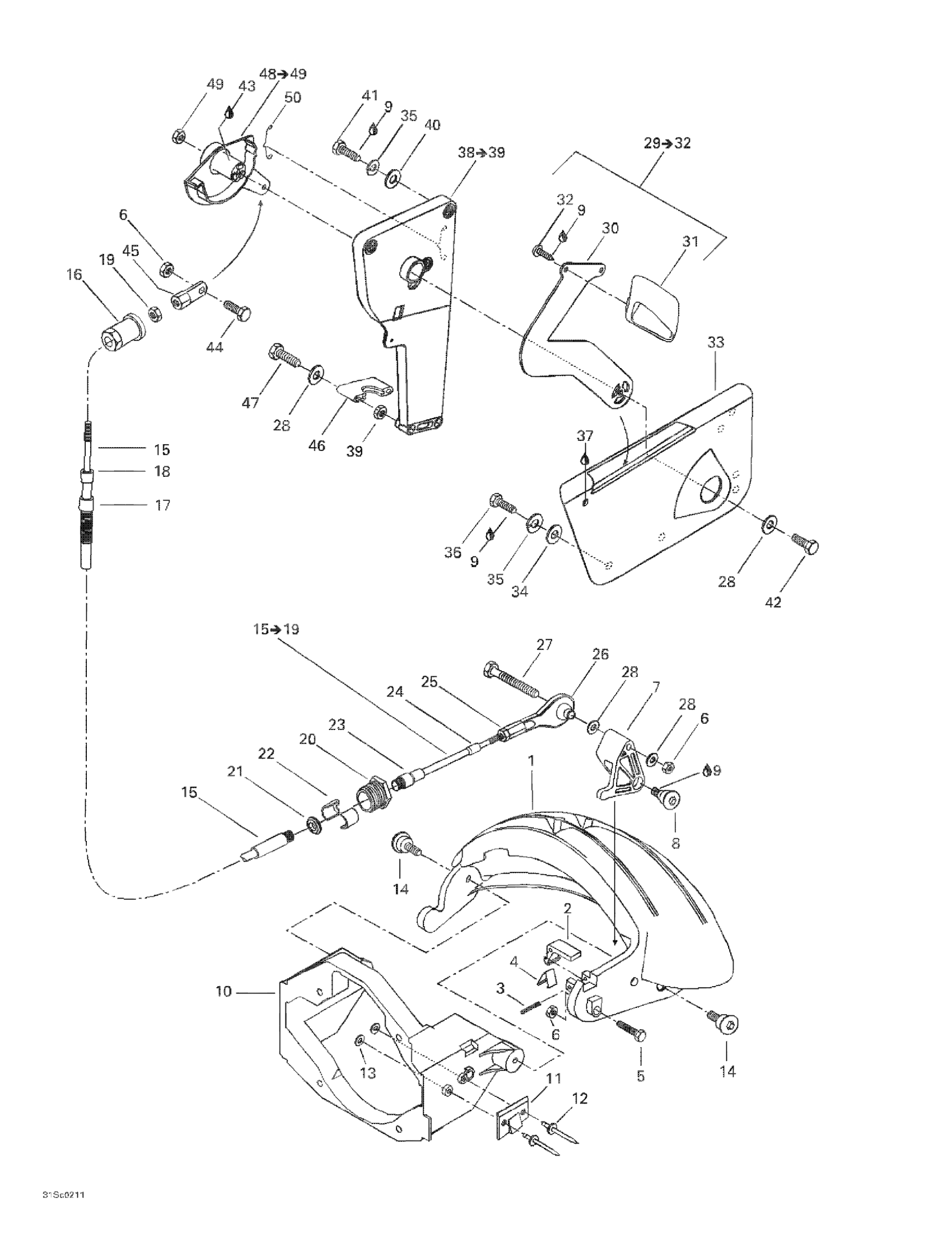

Sea-doo LRV DI, 5460, 2002 Reverse Diagram

#

Description
Price

1

REVERSE GATE - Call your local BRP dealership

271000947

$129.97

2

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

3

Pin

211400009

$1.31

4

Spring

271000431

$12.13

5

Hex. Forming Screw M6 X 20

207162060

$1.03

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

CABLE LEVER - Call your local BRP dealership

271000583

$13.82

8

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

$12.12

9

Loctite 243, 10 ml

293800060

$20.77

10

Gate Support

204170158

Unavailable

11

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

12

Pop Rivet 3/16"

293150043

$1.61

13

Flat Washer | XT

211200035

$0.46

14

Screw

211000007

Unavailable

15

Reverse Cable Ass'y | Includes 15 - 19.

204390204

Unavailable

16

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

17

Boot, Large

277000473

Unavailable

18

Boot, Small

277000466

Unavailable

19

Hex. Nut

212100005

$0.90

20

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

21

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

22

Half Ring

277000055

$6.19

23

Boot, Large

277000473

Unavailable

24

Boot, Small

277000466

Unavailable

25

Hex. Nut

212100005

$0.90

26

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

27

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

$3.31

28

Stainless Flat Washer M6

234061600

$0.25

29

Handle Reverse Ass'y | Includes 29 - 32.

271000586

Unavailable

30

Lever

271000613

Unavailable

31

Reverse Handle

271000614

Unavailable

32

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

$1.09

33

Housing Reverse Handle

271001055

Unavailable

34

FLAT WASHER - Call your local BRP dealership

211200033

$1.14

35

Helical Lock Washer M5

234151601

$0.91

36

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

$0.74

37

Silicone Sealant 51388, 300 ml

296000309

$35.72

38

Reverse Cable Support | Includes 38 - 39.

271000584

Unavailable

39

Hex. Elastic Stop Nut M6

232561600

$0.92

40

Flat Washer 5 mm, Stainless

234052600

$0.64

41

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

$1.20

42

Hex. Screw M6 X 16

207161660

$1.22

43

Synthetic Grease, 400 G

293550010

Unavailable

44

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

45

Joint

277000646

Unavailable

46

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

$8.94

47

Hex. Screw M6 X 50

207065060

$1.85

48

LEVER INTERIOR - Call your local BRP dealership | Includes 48 - 49.

271000585

Unavailable

49

Hex. Elastic Stop Nut M6

232561600

$0.92

50

SPRING - Call your local BRP dealership

271000612

$9.20
