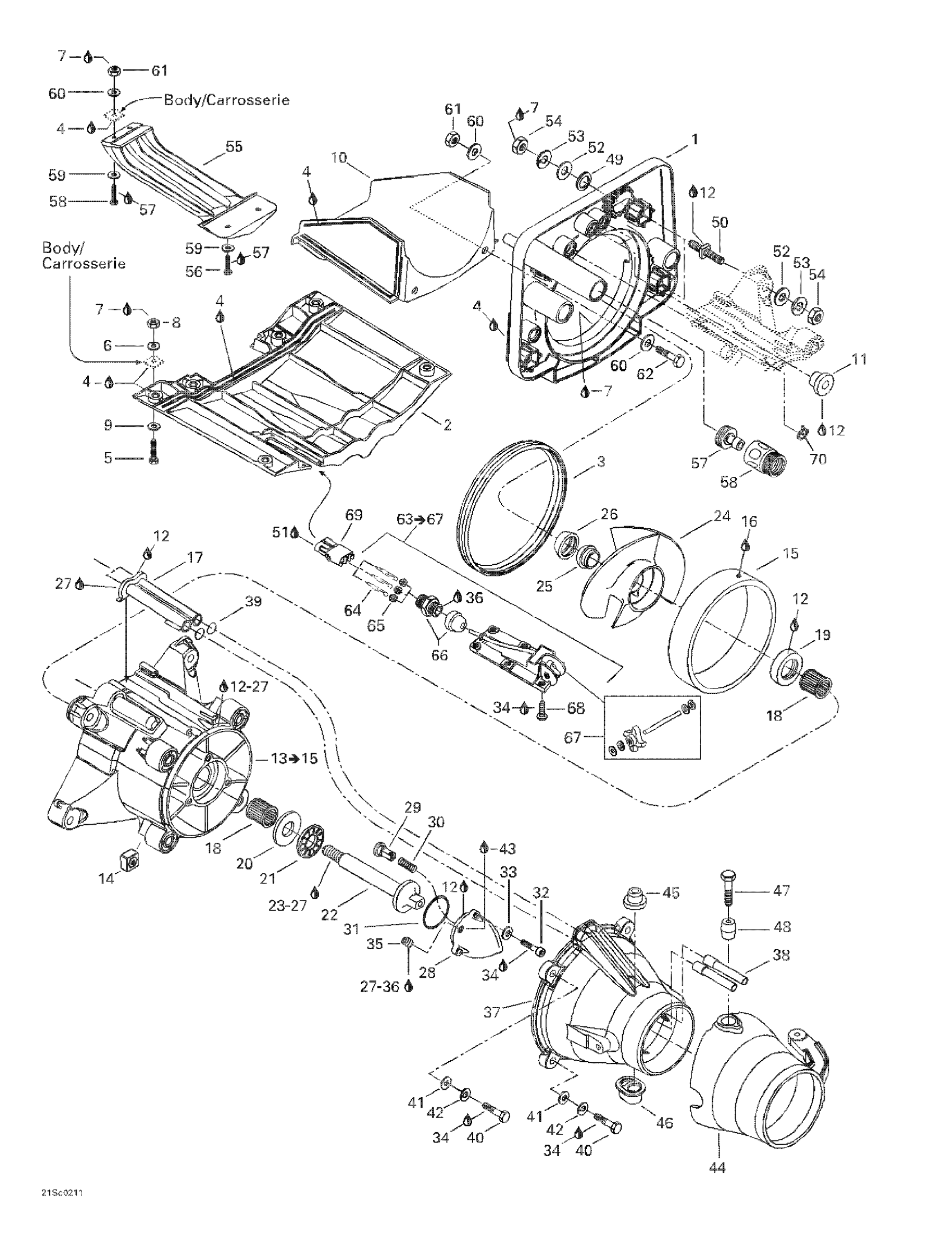

Sea-doo LRV DI, 5460, 2002 Propulsion System Diagram

#

Description
Price

1

Pump Support

204050475

Unavailable

2

Riding Plate

271000712

Unavailable

3

Neoprene Seal

293200051

$12.97

4

Instant Gasket

219701421

$50.02

5

Hex. Screw M8 X 40

207184060

$1.85

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Silicone Sealant 51388, 300 ml

296000309

$35.72

8

Hex. Elastic Nut M8

232581600

$1.25

9

Stainless, Flat Washer 8 mm

234081600

$0.46

10

SHOE - Call your local BRP dealership

271000792

Unavailable

11

Watertight Seal

293250084

$5.81

12

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

13

HOUSING ASSY - Call your local BRP dealership | Includes 1 to 5

271001381

Unavailable

14

Square Nut M8

211100033

$14.27

15

Wear Ring

271000653

$47.42

16

Sealant Loctite 648

219703000

$35.72

17

Water Outlet

271000785

$3.04

18

Needle Bearing

293350017

$21.42

19

Oil Seal

267000094

$17.52

20

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

21

Thrust-Bearing

293350022

$35.72

22

Impeller Shaft

271000965

$94.22

23

Loctite 262, 50 ml

413705200

Unavailable

24

Impeller Assy - Call your local BRP dealership

204160136

Unavailable

25

Impeller Boot

271000516

$6.86

26

Impeller Ring

271000517

$6.86

27

Was 293800041 Loctite Primer 7649

219704458

$41.99

28

IMPELLER COVER - Call your local BRP dealership

271001250

Unavailable

29

PUSHER - Call your local BRP dealership

271000978

Unavailable

30

SPRING - Call your local BRP dealership

271000973

Unavailable

31

O-Ring

293300011

$6.46

32

Socket Head Screw M6 X 25

205062560

$1.42

33

Stainless Flat Washer M6

234061600

$0.25

34

Loctite 243, 10 ml

293800060

$20.77

35

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

36

Was 293800013 Loctite 56765

219704454

$63.40

37

Venturi (Black)

271001194

Unavailable

38

Siphon Tube

271001133

$7.05

39

O-Ring

293300013

$5.69

40

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

41

Flat Washer M8.5 x 18

293050001

$1.29

42

Lock Washer 8 mm, Stainless

234181601

$0.46

43

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

44

Steering Nozzle

204160144

Unavailable

45

Venturi Bushing

293900001

$6.14

46

Plastic Bushing

293900010

$7.15

47

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

48

Venturi Spacer

204160153

Unavailable

49

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

50

Square Stud

250300022

$15.57

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

Flat Washer 10 mm, Stainless

234002600

$1.85

53

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

54

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

55

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

56

Hex. Screw M6 X 16

207161660

$1.22

57

Loctite 271, 10 ml

293800005

$20.77

58

Hex. Screw M6 X 45

207164560

$1.51

59

Stainless Flat Washer M6

234061600

$0.25

60

Flat Washer M6, Stainless

234062600

$0.64

61

Hex. Elastic Stop Nut M6

232561600

$0.92

62

Hex. Forming Screw M6 X 20

207162060

$1.03

63

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

64

Male Terminal | XT Models

278000222

$2.55

65

Wire Seal

278000218

$3.48

66

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

67

Paddle Wheel Kit

295500108

Unavailable

68

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

69

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

70

Reducer

291001761

Unavailable

71

Adaptor

293710078

$14.64

72

QUICK FITTING - Call your local BRP dealership

293710077

Unavailable
