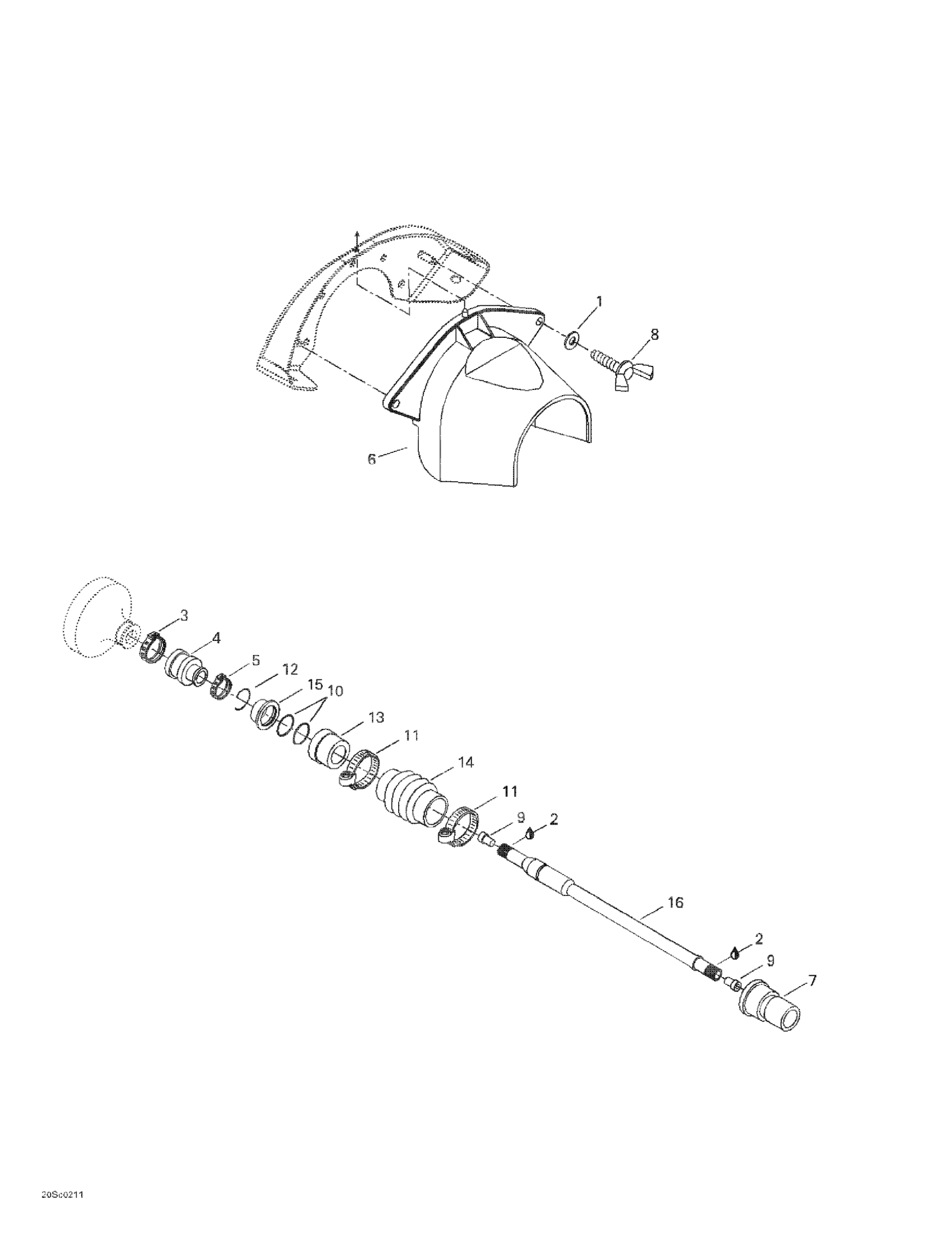

Sea-doo LRV DI, 5460, 2002 05- Drive System Diagram

Flat Washer 8 mm, Stainless

234082600

$2.43

Synthetic Grease, 400 G

293550010

Unavailable

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

Wing Screw M8 X 25

207982510

Unavailable

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

O-Ring

293300032

$6.03

Norma Clamp

293650075

$11.06

C-CLIP - Call your local BRP dealership

272000135

Unavailable

Carbon Ring

272000770

$45.99

BELLOWS - Call your local BRP dealership

272000184

$27.99

Support Ring

272000064

$66.49

Drive Shaft

204120232

Unavailable
