01- Crankshaft And Pistons

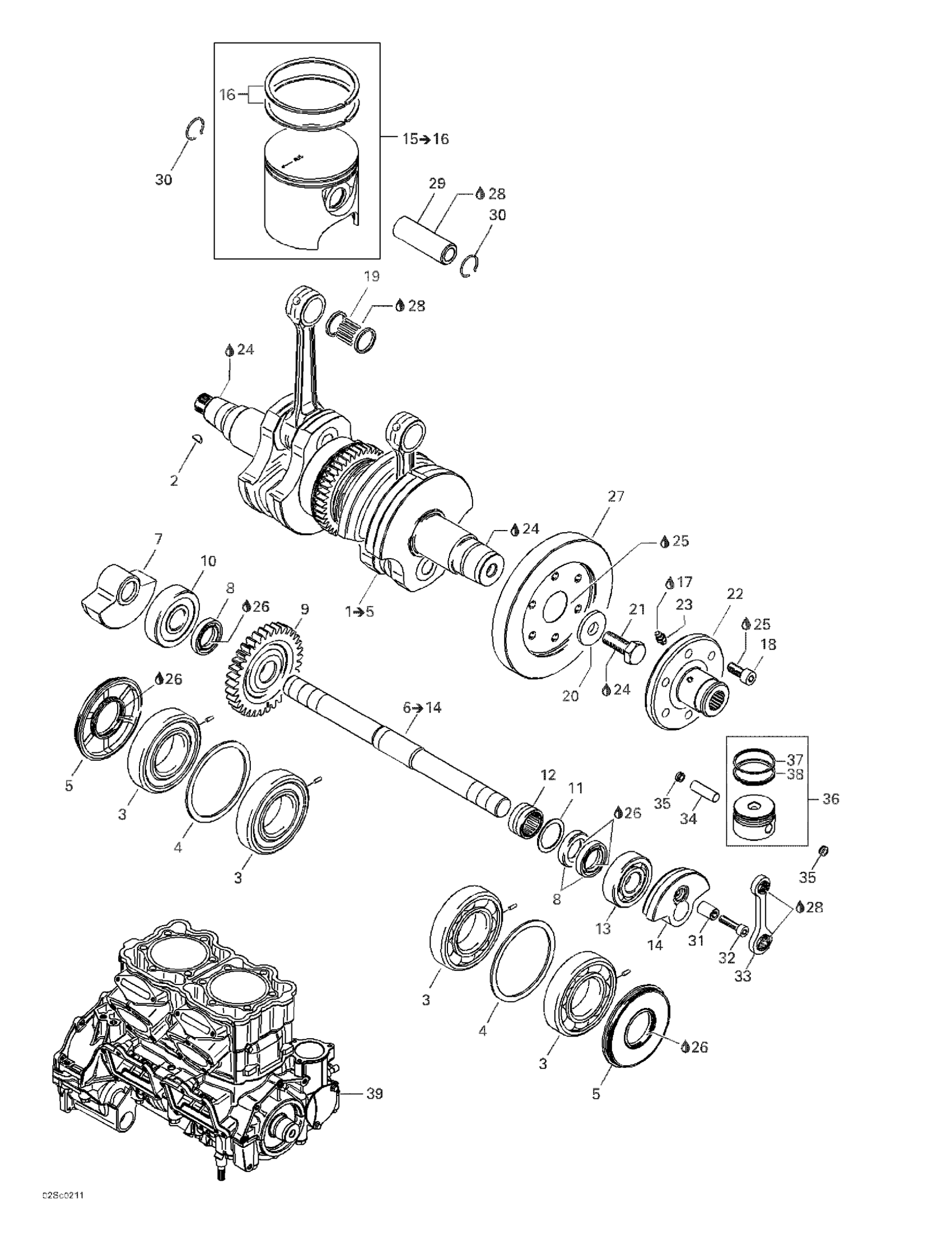

Sea-doo LRV DI, 5460, 2002 01- Crankshaft And Pistons Diagram
#
1
Crankshaft Ass'y | Includes 1 - 5.
290887767
Unavailable
2
Woodruff Key
420246055
$2.43
3
Bearing_Ball - Call your local BRP dealership
420432271
Unavailable
4
Washer
420926190
$11.63
5
OIL SEAL - Call your local BRP dealership
290931731
Unavailable
6
Shaft Balance Ass'y | Includes 6 - 14.
290837445
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Ball Bearing 6304
290932097
Unavailable
11
Washer
420927192
Unavailable
12
Needle Bearing
290232555
Unavailable
13
Ball Bearing 6304
290932096
Unavailable
14
Mass Balance
290818955
Unavailable
15
Piston with 2 Rings, 87.88 mm | Includes 15 - 16.
290889045
Unavailable
Piston Oversize, 88.16 mm
290889046
Unavailable
16
Rectangular Ring
290815267
Unavailable
Rectangular Ring (Oversize)
290815268
Unavailable
17
Synthetic Grease, 400 G
293550010
Unavailable
18
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
19
Bearing_Needle This part replaces 420832552.
420832553
$30.49
20
Washer
290827782
Unavailable
21
Hex. Screw M12 x 30
290640120
Unavailable
22
COUPLING FLANGE ASS'Y (SILVER) - Call your local BRP dealership | Includes 22 - 23.
290958122
Unavailable
23
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
Sealant Loctite 648
219703000
$45.99
26
Dow Corning 111, 150 g
413707000
$59.99
27
Coupling (Silver)
290958082
Unavailable
28
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
29
Piston Pin
290916398
Unavailable
30
Circlip
290845465
Unavailable
31
Compressor Pin
290921460
Unavailable
32
SCREW M6 X 45 - Call your local BRP dealership
290640690
Unavailable
33
Conrod Ass'y
290917505
Unavailable
34
Piston Pin M9 x 30
290916430
Unavailable
35
Distance Bushing
290847940
Unavailable
36
Piston Ass'y 38.95 mm | Includes 36 - 38.
290888550
Unavailable
37
Rectangular Ring
290215970
Unavailable
38
Oil Scraper Ring
290215960
Unavailable
39
Short Block Ass'y (947 DI)
290094706
Unavailable
40
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290888134
Unavailable
41
Cylinder Gasket Set (Not Shown)
290888139
Unavailable
