01- Crankcase, Reed Valve

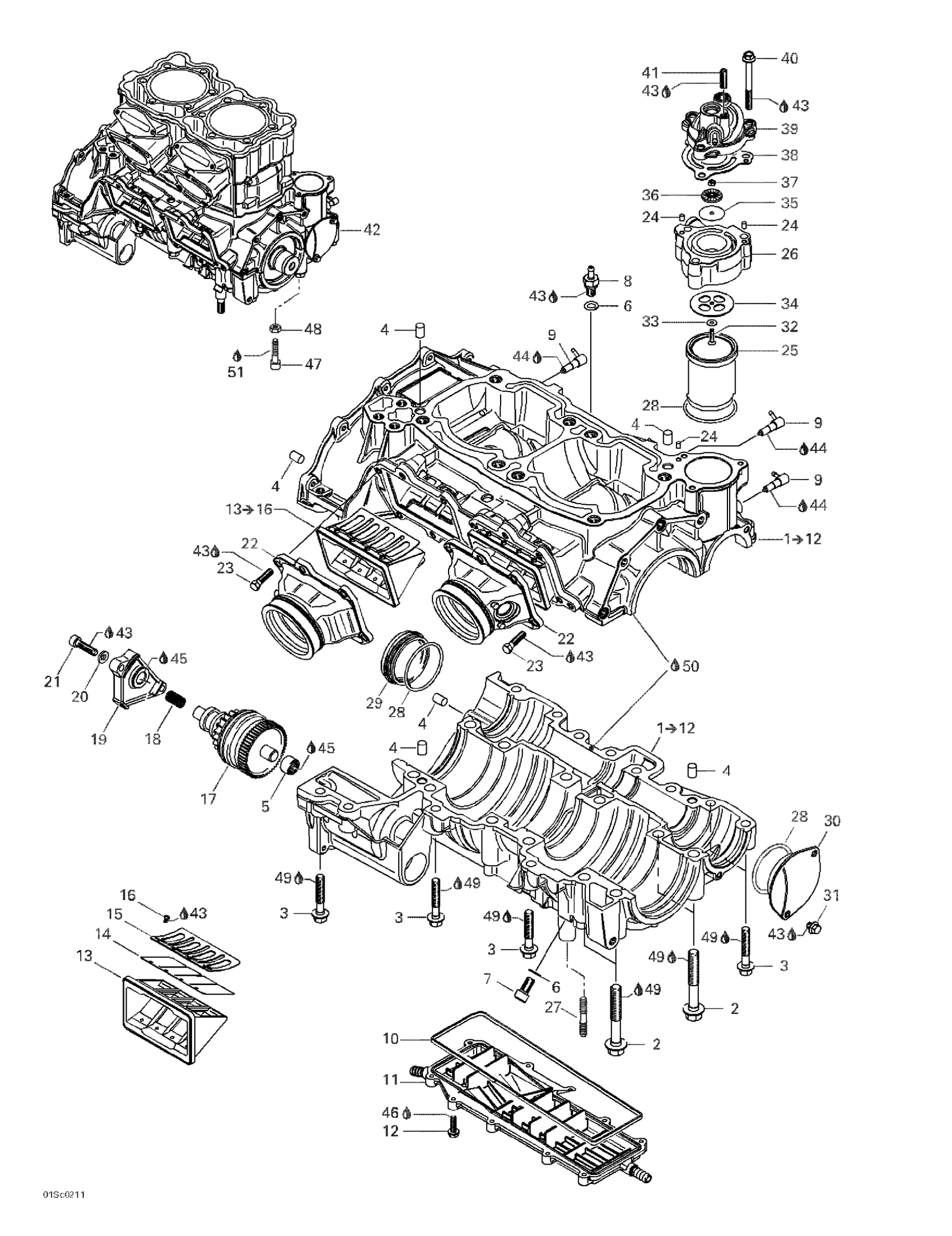

Sea-doo LRV DI, 5460, 2002 01- Crankcase, Reed Valve Diagram
#
1
CRANKCASE ASSY 947-DI - Call your local BRP dealership | Includes 1 to 12
420888534
Unavailable
2
Flange Screw M10 x 73,5
290941333
Unavailable
3
FLANGE SCREW M8 X 45 - Call your local BRP dealership
290940638
Unavailable
4
Center Pin 8 X 12
420632010
$4.01
5
Needle Bushing
420232482
$20.99
6
Sealing Ring
420950141
$2.00
7
Socket Head Screw M8 X 16
205081660
Unavailable
8
Vent Nipple M8
290640970
Unavailable
9
Check Valve
420956511
$35.99
10
Rubber Ring
290931880
Unavailable
11
Waterchannel Cover
290811430
Unavailable
12
Taptite Screw
290841558
Unavailable
13
REED VALVE ASS'Y - Call your local BRP dealership | Includes 23 to 27
420924602
$189.99
14
Reed Pedal
290924612
Unavailable
15
Reed Pedal Stop
290924617
Unavailable
16
Phillips Screw M3 X 5
420941215
$1.69
17
Starter Drive Ass'y
420888042
$369.99
18
Spring
420938204
$7.65
19
Cover
290811210
Unavailable
20
SPRING WASHER - Call your local BRP dealership
420845020
Unavailable
21
Allen Screw M6 x 22 This part replaces 420840401.
420840403
$1.48
22
Carburator Adapter Ass'y
290867890
Unavailable
23
Hex. Flange Screw M6 X 25
207662544
$0.64
24
Pin
290232020
Unavailable
25
Compressor Sleeve
290923910
Unavailable
26
Compressor Head
290923891
Unavailable
27
STUD M10 X 18 - Call your local BRP dealership
420840290
Unavailable
28
O-Ring
290230300
Unavailable
29
Bearing Cover
290811200
Unavailable
30
BEARING COVER - Call your local BRP dealership
420811205
Unavailable
31
Hex. Flange Screw M6 X 12
207661244
$2.11
32
Oval Head Screw
290841368
Unavailable
33
Washer
290944590
Unavailable
34
Inlet Reed Disk
290854500
Unavailable
35
Outlet Reed Disk
290854510
Unavailable
36
Diaphragm Guide
290944600
Unavailable
37
Lock Nut M4
290242533
Unavailable
38
Gasket
290931870
Unavailable
39
Compressor Cover
290923901
Unavailable
40
Hex. Flange Screw
290640563
Unavailable
41
Adjuster Screw M6 x 25
290640873
Unavailable
42
Short Block Ass'y (947 DI)
290094706
Unavailable
43
Loctite 243, 10 ml
293800060
$21.49
44
Sealant Loctite 648
219703000
$45.99
45
Dow Corning 111, 150 g
413707000
$59.99
46
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
47
Socket Screw M10 X 30
205003060
Unavailable
48
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
49
Was 413702700 Loctite 515, 50 ml
219704462
$33.99
50
Loctite 5910, 300 ml
293800081
$57.99
51
Loctite 271, 10 ml
293800005
$26.99
52
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290888134
Unavailable
