Description

Price

1

Loctite 243, 10 ml

293800060

$21.49

2

Was 293800013 Loctite 56765

219704454

$65.99

3

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

4

Male Terminal | XT Models

278000222

$3.19

5

Wire Seal

278000218

$4.39

6

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

7

Paddle Wheel Kit

295500108

Unavailable

8

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

9

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

12

Bilge Pump This part replaces 204470220.

278002020

$99.49

13

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

14

Bilge Pump Support

204050304

Unavailable

15

Pop Rivet 3/16"

293150008

$0.50

16

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 14 - 17. This part replaces 278001398.

278001525

Unavailable

17

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

18

Cover Seal

278001070

Unavailable

19

Fuse, 15 Amperes

278000343

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

20

Was 293200017 Neoprene Seal

219704365

$149.99

21

Flat Washer M6, Stainless

234062600

$0.77

22

Hex. Elastic Stop Nut M6

232561600

$1.15

23

(Ormd) Deoxit Aerosol *

293550034

$38.99

24

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

25

Female Terminal

278000223

$3.19

26

Wire Seal

278000218

$4.39

27

Male Connector, 2 Circuits

278000220

$15.49

28

Safety Switch | Includes 15 - 19.

278000977

Unavailable

29

Male Terminal | XT Models

278000222

$3.19

30

Wire Seal

278000218

$4.39

31

Wire Seal

278000216

$3.19

32

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

33

Safety Nut (DESS Switch)

278002963

$3.28

34

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

35

LCD Info Gauge | Includes 35 - 50.

204620176

Unavailable

36

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

37

Male Housing, 3 Circuits

278000273

$9.59

38

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

39

Female Terminal

278000223

$3.19

40

Wire Seal

278000216

$3.19

41

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

42

Female Housing, 2 Circuits

278000217

$9.59

43

Male Terminal | XT Models

278000222

$3.19

44

Wire Seal

278001065

$7.69

45

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

46

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

47

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

48

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

49

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

50

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

51

Gauge Support

293720047

Unavailable

52

Speedometer | Includes 22 - 27.

278001359

Unavailable

53

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

54

Female Housing, 2 Circuits

278000217

$9.59

55

Male Terminal | XT Models

278000222

$3.19

56

Wire Seal

278001065

$7.69

57

Wire Seal

278000216

$3.19

58

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

59

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

60

Male Connector, 2 Circuits

278000220

$15.49

61

Female Terminal

278000223

$3.19

62

Wire Seal

278000218

$4.39

63

Black, Dart

293730016

$9.97

64

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

65

Male Connector, 2 Circuits

278000220

$15.49

66

Female Terminal

278000223

$3.19

67

Wire Seal

278000218

$4.39

68

Flat Washer 10 mm, Stainless

234000600

$1.46

69

NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership

250100004

Unavailable

70

Temperature Sensor

278002895

$39.99

71

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

72

Solenoid Valve

270600005

$116.49

73

Flat Washer M5, Stainless

234051600

$0.77

74

Hex. Elastic Nut M5 | X

232551600

$1.15

75

Oil Sensor | Includes 44 to 48

278001402

Unavailable

76

Wire Seal

278000218

$4.39

77

Male Terminal | XT Models

278000222

$3.19

78

Female Housing, 2 Circuits

278000217

$9.59

79

Grommet

293720008

$14.75

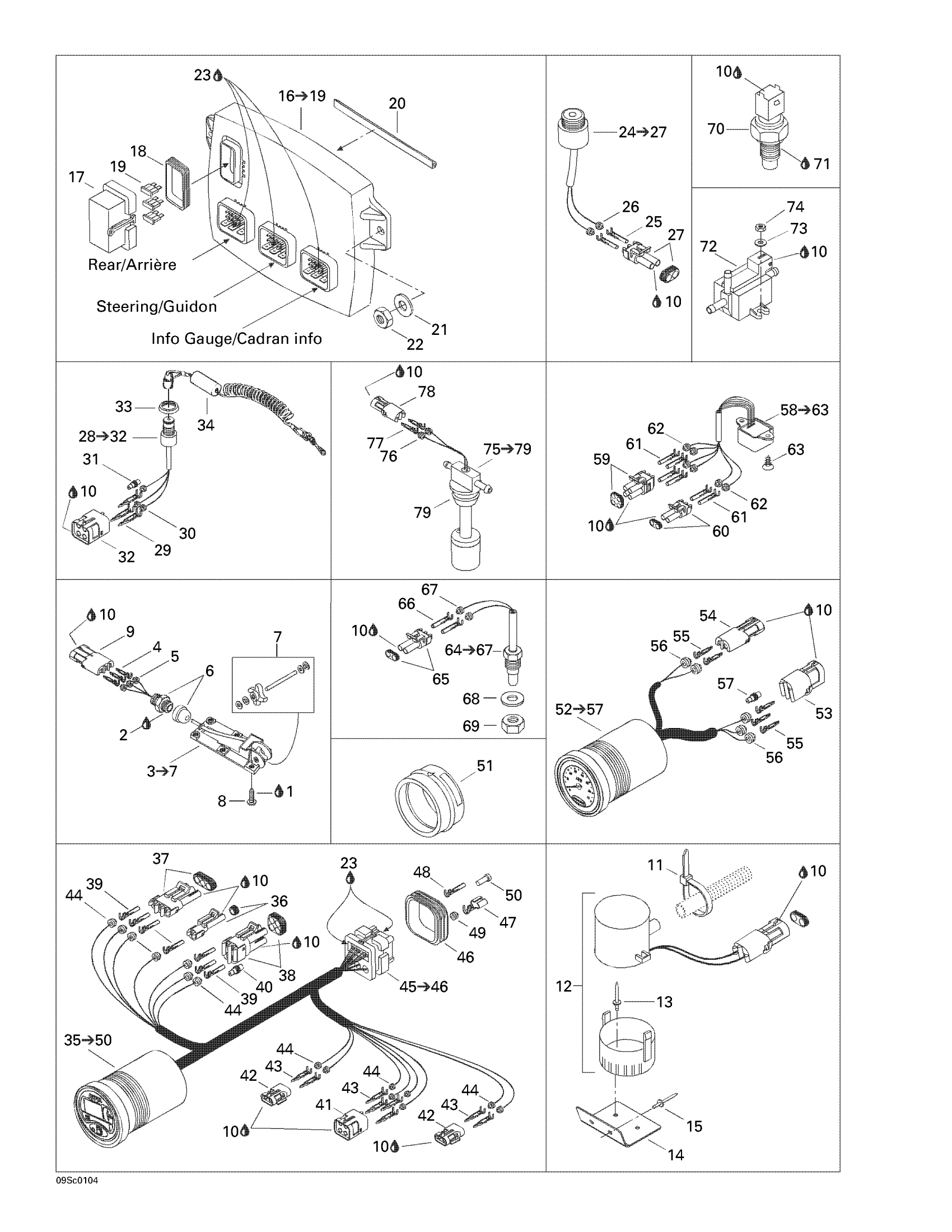

Sea-doo LRV, 5697, 2001 Electronic Module And Electrical Accessories Diagram
