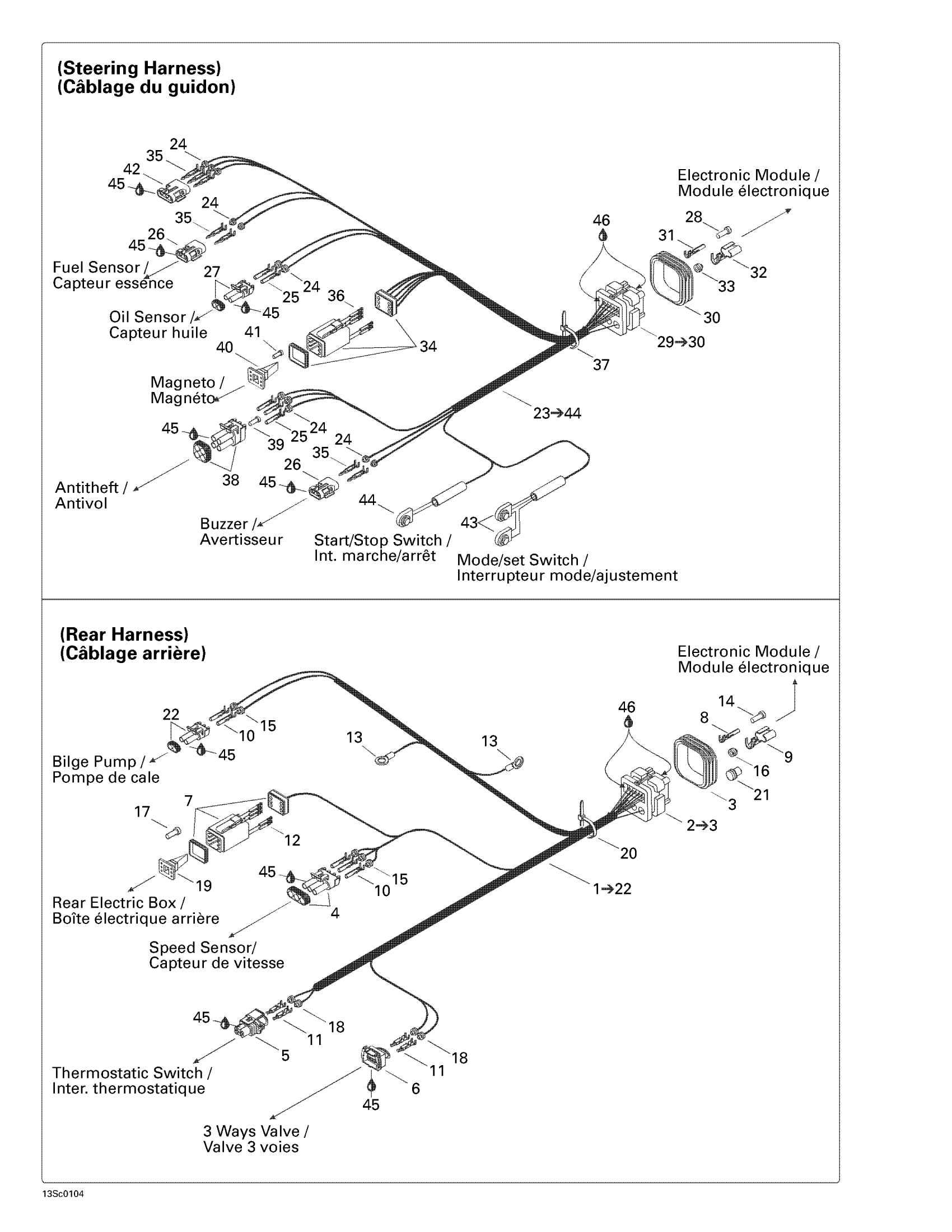

Sea-doo LRV, 5697, 2001 Electrical Harness Diagram

#

Description
Price

1

Rear Harness | Includes 1 - 22.

204050286

Unavailable

2

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

3

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

4

Male Housing, 3 Circuits

278000273

$9.59

5

Male Housing, 2 Circuits

278001005

$19.49

6

Male Connector, 2 Circuits

278001003

$46.49

7

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

8

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

Female Terminal

278000223

$3.19

11

Female Terminal

278000998

$4.39

12

Female Terminal

278000632

$2.09

13

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

14

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

15

Wire Seal

278000218

$4.39

16

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

17

Sealing Cap

293000052

$3.19

18

Wire Seal

278000999

$3.19

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

20

Tie Wrap 142 mm

293750002

$1.25

21

SEAL - Call your local BRP dealership

409013900

Unavailable

22

Male Connector, 2 Circuits

278000220

$15.49

23

Steering Harness | Includes 23 - 44.

204390228

Unavailable

24

Wire Seal

278000218

$4.39

25

Female Terminal

278000223

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Male Connector, 2 Circuits

278000220

$15.49

28

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

29

Male Terminal Housing, 26 Circuits

278001062

Unavailable

30

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

31

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

32

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

33

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

34

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

35

Male Terminal | XT Models

278000222

$3.19

36

Female Terminal

278000632

$2.09

37

Tie Wrap 142 mm

293750002

$1.25

38

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

39

Wire Seal

278000216

$3.19

40

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

41

Sealing Cap

293000052

$3.19

42

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

43

Switch - Mode/Set

204390229

Unavailable

44

Stop/Start Switch Ass'y

204390230

Unavailable

45

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

46

*(Ormd) *Deoxit Aerosol *

293550034

$38.99
