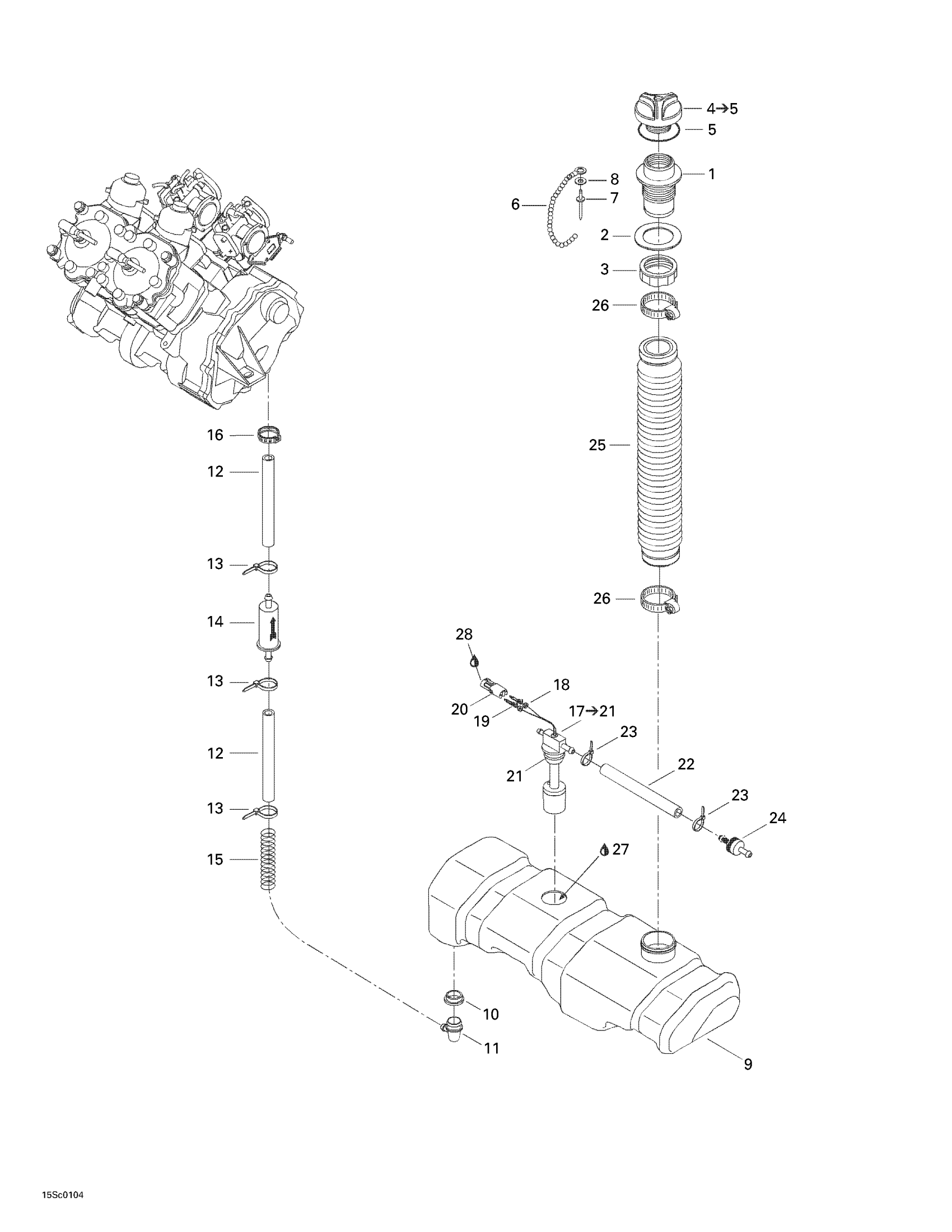

Sea-doo LRV, 5697, 2001 Oil Injection System Diagram

#

Description
Price

1

Filler Neck

275000212

Unavailable

2

Gasket

293250016

Unavailable

3

Nut-Neck Oil Filler

211100013

Unavailable

4

Oil Cap

275000186

Unavailable

5

O-RING - Call your local BRP dealership

293250025

Unavailable

6

Oil Cap Chain

275500015

Unavailable

7

Pop Rivet 1/8"

390407900

$1.49

8

Flat Washer M3, Stainless

234032600

$0.55

9

Oil Tank

275000238

$98.99

10

Grommet

293720008

$14.75

11

Elbow Fitting 90°

293710070

Unavailable

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

15

SPRING - Call your local BRP dealership

204550064

Unavailable

16

Oetiker Clamp

293650042

$3.09

17

Oil Sensor | Includes 44 to 48

278001402

Unavailable

18

Wire Seal

278000218

$4.39

19

Male Terminal | XT Models

278000222

$3.19

20

Female Housing, 2 Circuits

278000217

$9.59

21

Grommet

293720008

$14.75

22

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

23

Tie Wrap 142 mm

293750002

$1.25

24

Check Valve

275500398

$10.99

25

Filler Hose

275000185

Unavailable

26

Tridon Clamp

293650035

$7.29

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
