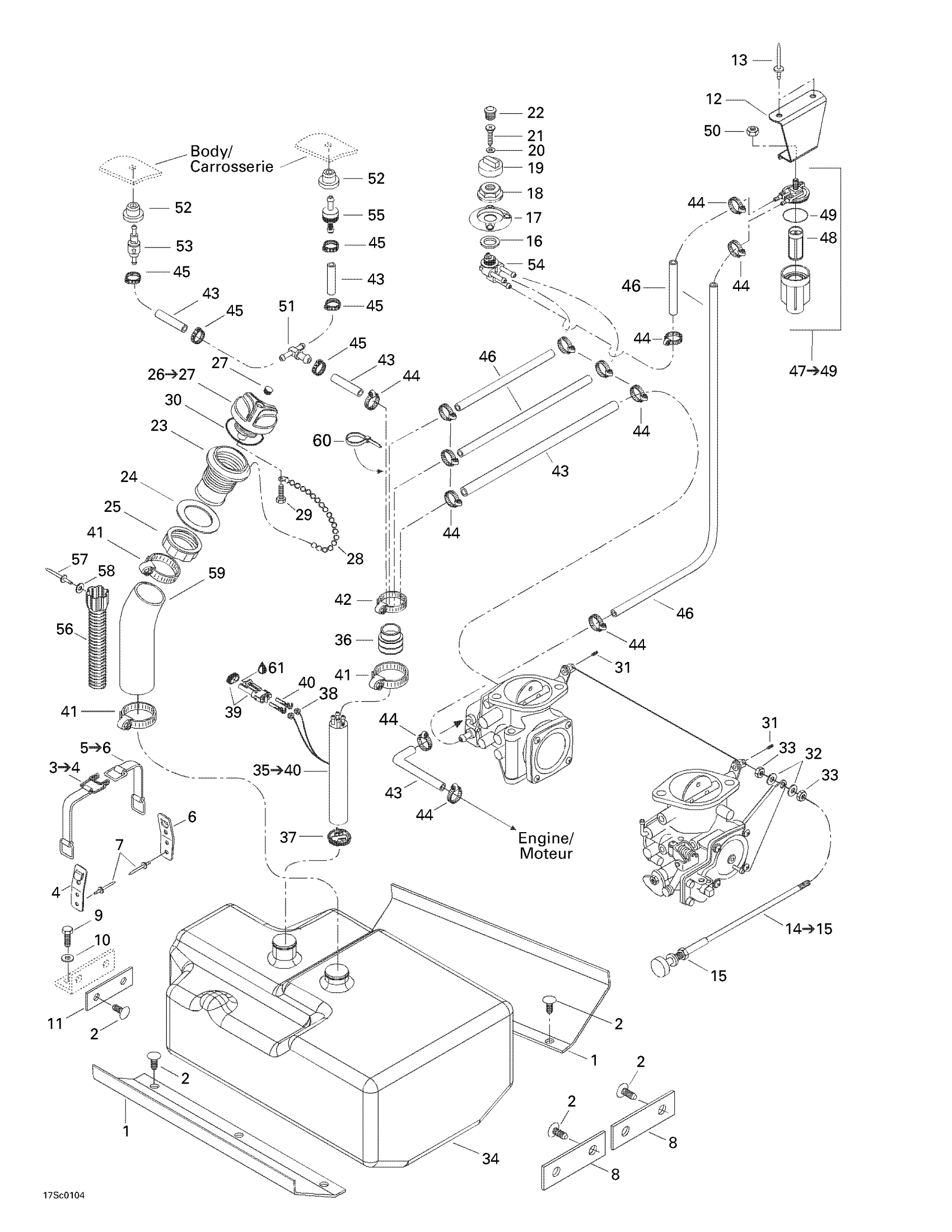

Sea-doo LRV, 5697, 2001 Fuel System Diagram

#

Description
Price

1

Pad Rubber

204050298

Unavailable

2

Black, Dart

293730006

$0.99

3

Strap | Includes 69 - 70.

293850025

Unavailable

4

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

5

Fuel Tank Strap | Includes 48 - 49.

293850026

Unavailable

6

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

7

Pop Rivet 3/16"

293150008

$0.50

8

Rubber Pad

292000415

Unavailable

9

Hex. Forming Screw M6 X 20

207162060

$1.29

10

Flat Washer M6, Stainless

234062600

$0.77

11

Rubber Pad

293830055

Unavailable

12

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

13

Pop Rivet 3/16"

293150039

$1.49

14

Choke Cable | Includes 14 - 15.

204250153

Unavailable

15

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Fuel Valve Plate

275500285

Unavailable

18

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

19

FUEL VALVE KNOB - Call your local BRP dealership

275500299

Unavailable

20

Flat Washer 4 mm

234040600

$0.55

21

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

22

Black, Cap

275500241

$3.49

23

Filler Neck

275500247

Unavailable

24

Gasket

293250029

$14.82

25

Filler Neck Nut, Fuel

211100012

$14.22

26

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

27

Black, Snap Cap

293000034

$9.39

28

Oil Cap Chain

275500015

Unavailable

29

Screw K40 X 10

241140060

$1.48

30

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

31

Socket Set Screw M4 x 6

206540660

Unavailable

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Nut M6

232160600

$1.15

34

Fuel Tank

204560158

Unavailable

35

BAFFLE - Call your local BRP dealership | Includes 6 - 11.

275500472

Unavailable

36

Tube Adapter

275500111

Unavailable

37

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

38

Wire Seal

278000218

$4.39

39

Male Connector, 2 Circuits

278000220

$15.49

40

Female Terminal

278000223

$3.19

41

Tridon Clamp

293650023

$13.49

42

Tridon Clamp

293650035

$7.29

43

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

44

Tridon Gear Clamp

293650170

$1.99

45

Oetiker Clamp

293650042

$3.09

46

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

47

FUEL FILTER ASS'Y - Call your local BRP dealership | Includes 30 - 32.

275500358

Unavailable

48

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

49

O-Ring

275500090

$8.79

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

T-Fitting | Europe

293710024

$14.75

52

Grommet

293720029

$1.59

53

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

54

Fuel Valve

275500400

Unavailable

55

Check Valve

275500398

$10.99

56

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

57

Rivet 1/8”

293150057

Unavailable

58

Flat Washer M3, Stainless

234032600

$0.55

59

Filler Neck Hose

204250135

Unavailable

60

Tie-Rap 180 mm

414115200

$0.11

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
