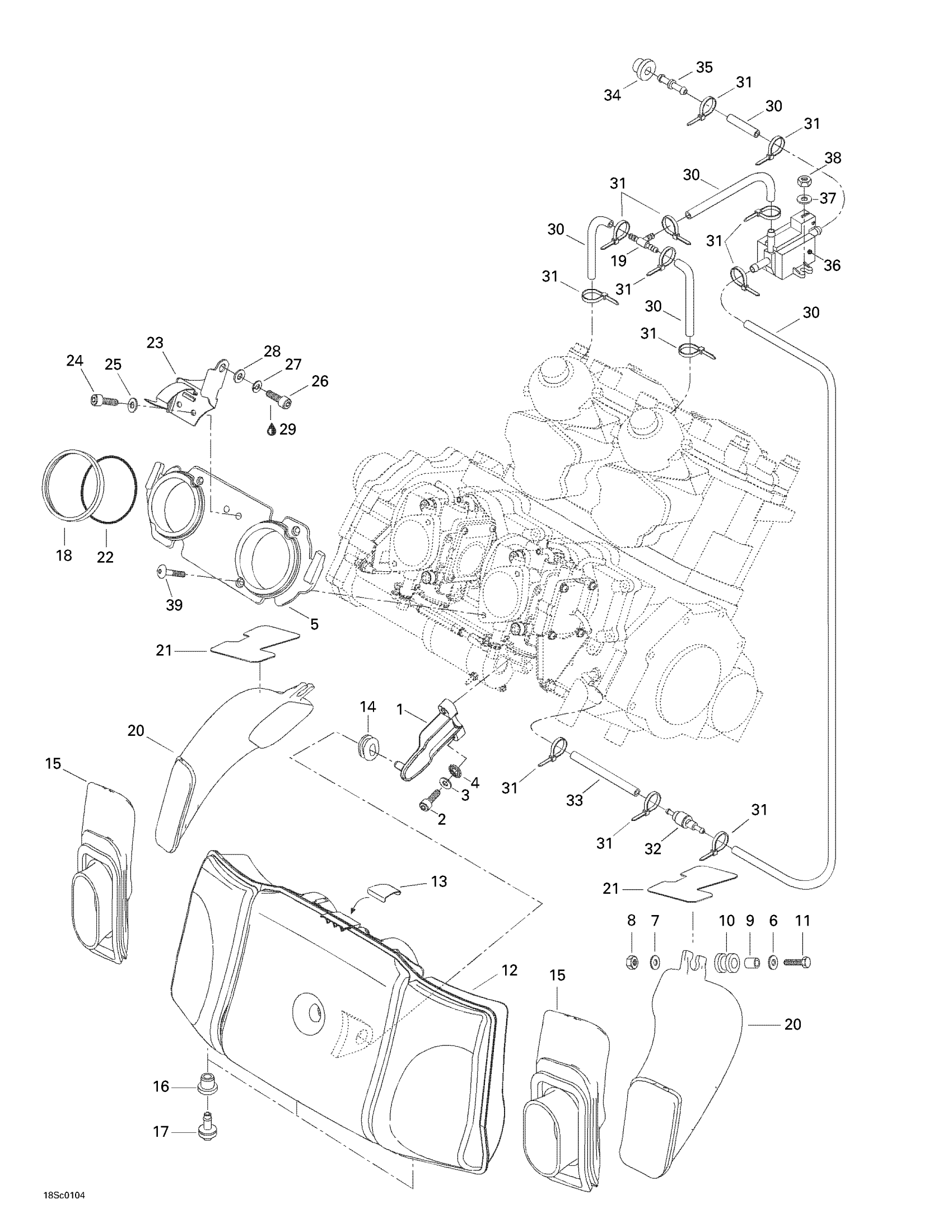

Sea-doo LRV, 5697, 2001 Air Intake System Diagram

#

Description
Price

1

Silencer Support

273000123

Unavailable

2

Socket Head Screw M6 X 35

205063560

$2.22

3

Stainless Flat Washer M6

234061600

$0.33

4

External Serrated Lock Washer 6 mm

234461608

$1.15

5

Air Silencer Adaptor

270500383

Unavailable

6

Flat Washer M6, Stainless

234062600

$0.77

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

SPACER - Call your local BRP dealership

272000074

Unavailable

10

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

11

Hex. Screw M6 X 35

207063560

$2.22

12

Air Silencer

273000183

Unavailable

13

Support Plate

273000112

Unavailable

14

Cable Grommet

293720052

Unavailable

15

Intake Adaptor (MAG)

273000153

Unavailable

Intake Adaptor (PTO)

273000152

Unavailable

16

GROMMET - Call your local BRP dealership

293720064

Unavailable

17

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

18

Gasket

293250122

$67.99

19

T-Fitting

293710068

$8.29

20

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

High Air Duct, Mag

273000150

Unavailable

21

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

22

O-Ring

293250065

Unavailable

23

HOLDER - Call your local BRP dealership

270000455

Unavailable

24

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

25

Stainless Flat Washer M6

234061600

$0.33

26

Socket Head Screw M8 X 16

205081660

Unavailable

27

Lock Washer 8 mm, Stainless

234181601

$0.55

28

Flat Washer 8 mm, Stainless

234082600

$2.43

29

Loctite 243, 10 ml

293800060

$21.49

30

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

31

Tie Wrap 94 mm | 4X4

293750001

$1.03

32

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

33

Hose 6 Mm 15000Mm Long

219704360

$132.49

34

Grommet

293720029

$1.59

35

Fitting

293700031

Unavailable

36

Solenoid Valve

270600005

$116.49

37

Flat Washer M5, Stainless

234051600

$0.77

38

Hex. Elastic Nut M5 | X

232551600

$1.15

39

Screw

270500357

Unavailable
