10- Electronic Module And Electrical Accessories

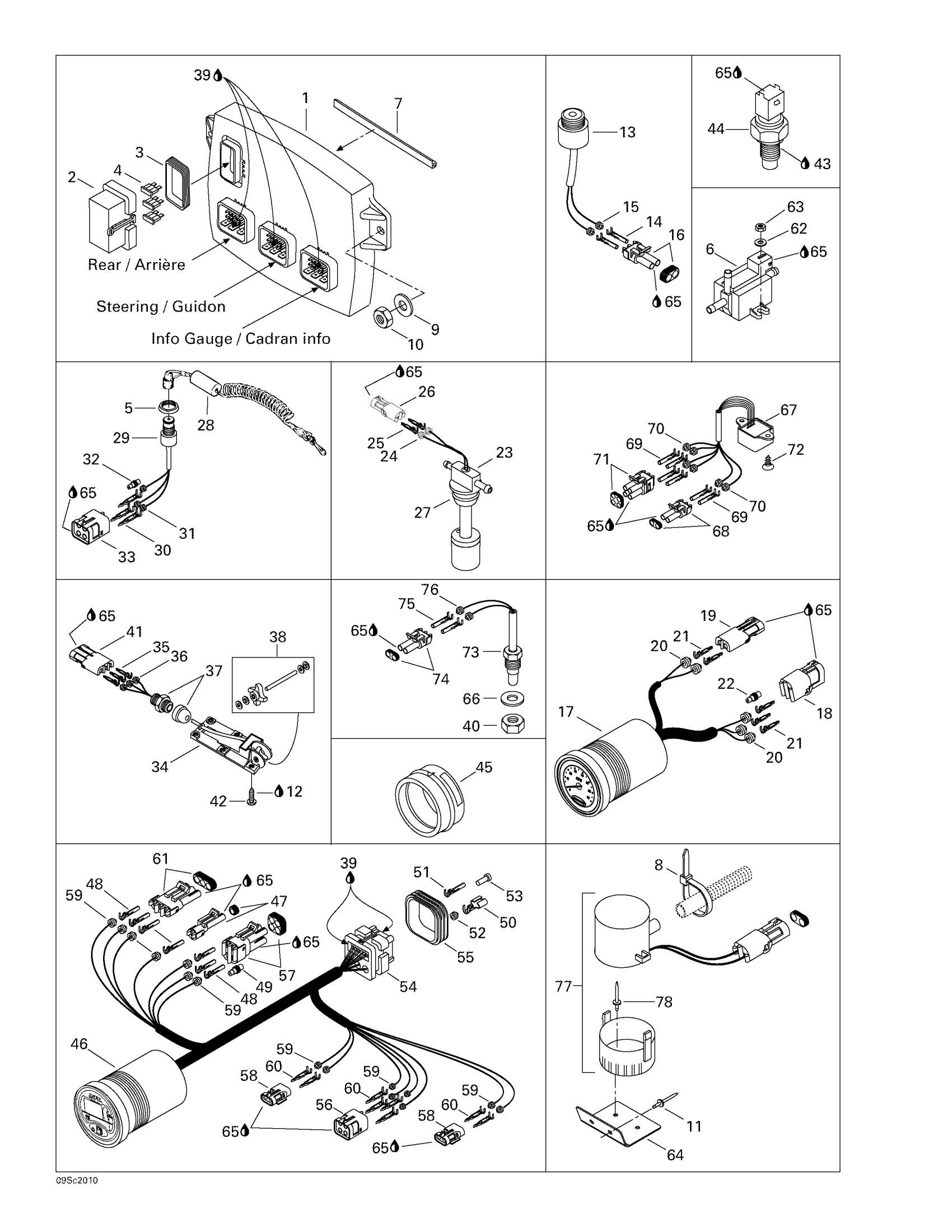

Sea-doo LRV, 5688, 2000 10- Electronic Module And Electrical Accessories Diagram
#
1
ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 14 - 17. This part replaces 278001398.
278001525
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
Cover Seal
278001070
Unavailable
4
Fuse, 15 Amperes
278000343
$3.28
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
Fuse, 5 Amperes | CE
278000344
$3.28
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Safety Nut (DESS Switch)
278002963
$3.28
6
Solenoid Valve
270600005
$116.49
7
Was 293200017 Neoprene Seal
219704365
$149.99
8
Tie Wrap 94 mm | 4X4
293750001
$1.03
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
Pop Rivet 3/16"
293150008
$0.50
12
Loctite 243, 10 ml
293800060
$21.49
13
Buzzer Ass'y | Includes 11 - 14.
278000978
Unavailable
14
Female Terminal
278000223
$3.19
15
Wire Seal
278000218
$4.39
16
Male Connector, 2 Circuits
278000220
$15.49
17
Speedometer | Includes 22 - 27.
278001359
Unavailable
18
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
19
Female Housing, 2 Circuits
278000217
$9.59
20
Wire Seal
278001065
$7.69
21
Male Terminal | XT Models
278000222
$3.19
22
Wire Seal
278000216
$3.19
23
Oil Sensor | Includes 44 to 48
278001402
Unavailable
24
Wire Seal
278000218
$4.39
25
Male Terminal | XT Models
278000222
$3.19
26
Female Housing, 2 Circuits
278000217
$9.59
27
Grommet
293720008
$14.75
28
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
29
Safety Switch | Includes 15 - 19.
278000977
Unavailable
30
Male Terminal | XT Models
278000222
$3.19
31
Wire Seal
278000218
$4.39
32
Wire Seal
278000216
$3.19
33
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
34
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
35
Male Terminal | XT Models
278000222
$3.19
36
Wire Seal
278000218
$4.39
37
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
38
Paddle Wheel Kit
295500108
Unavailable
39
*(Ormd) *Deoxit Aerosol *
293550034
$38.99
40
NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership
250100004
Unavailable
41
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
42
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
43
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
44
Temperature Sensor
278002895
$39.99
45
Gauge Support
293720047
Unavailable
46
LCD Info Gauge | Includes 35 - 50.
204620176
Unavailable
47
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
48
Female Terminal
278000223
$3.19
49
Wire Seal
278000216
$3.19
50
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
51
FEMALE TERMINAL - Call your local BRP dealership
278000995
Unavailable
52
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
53
SEALING CAP - Call your local BRP dealership
293000070
Unavailable
54
Male Connector, 26 Circuits | Includes 16a - 17.
278000993
Unavailable
55
WIRE SEAL - Call your local BRP dealership
278001307
Unavailable
56
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership
278000890
Unavailable
57
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
58
Female Housing, 2 Circuits
278000217
$9.59
59
Wire Seal
278001065
$7.69
60
Male Terminal | XT Models
278000222
$3.19
61
Male Housing, 3 Circuits
278000273
$9.59
62
Flat Washer M5, Stainless
234051600
$0.77
63
Hex. Elastic Nut M5 | X
232551600
$1.15
64
Bilge Pump Support
204050304
Unavailable
65
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
66
Flat Washer 10 mm, Stainless
234000600
$1.46
67
Compass | GTI RFI LE, Includes 38 to 42
278001243
Unavailable
68
Male Connector, 2 Circuits
278000220
$15.49
69
Female Terminal
278000223
$3.19
70
Wire Seal
278000218
$4.39
71
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership
278000891
Unavailable
72
Black, Dart
293730016
$9.97
73
Temperature Sensor | Includes 55 - 58.
278000851
Unavailable
74
Male Connector, 2 Circuits
278000220
$15.49
75
Female Terminal
278000223
$3.19
76
Wire Seal
278000218
$4.39
77
Bilge Pump This part replaces 204470220.
278002020
$99.49
78
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
