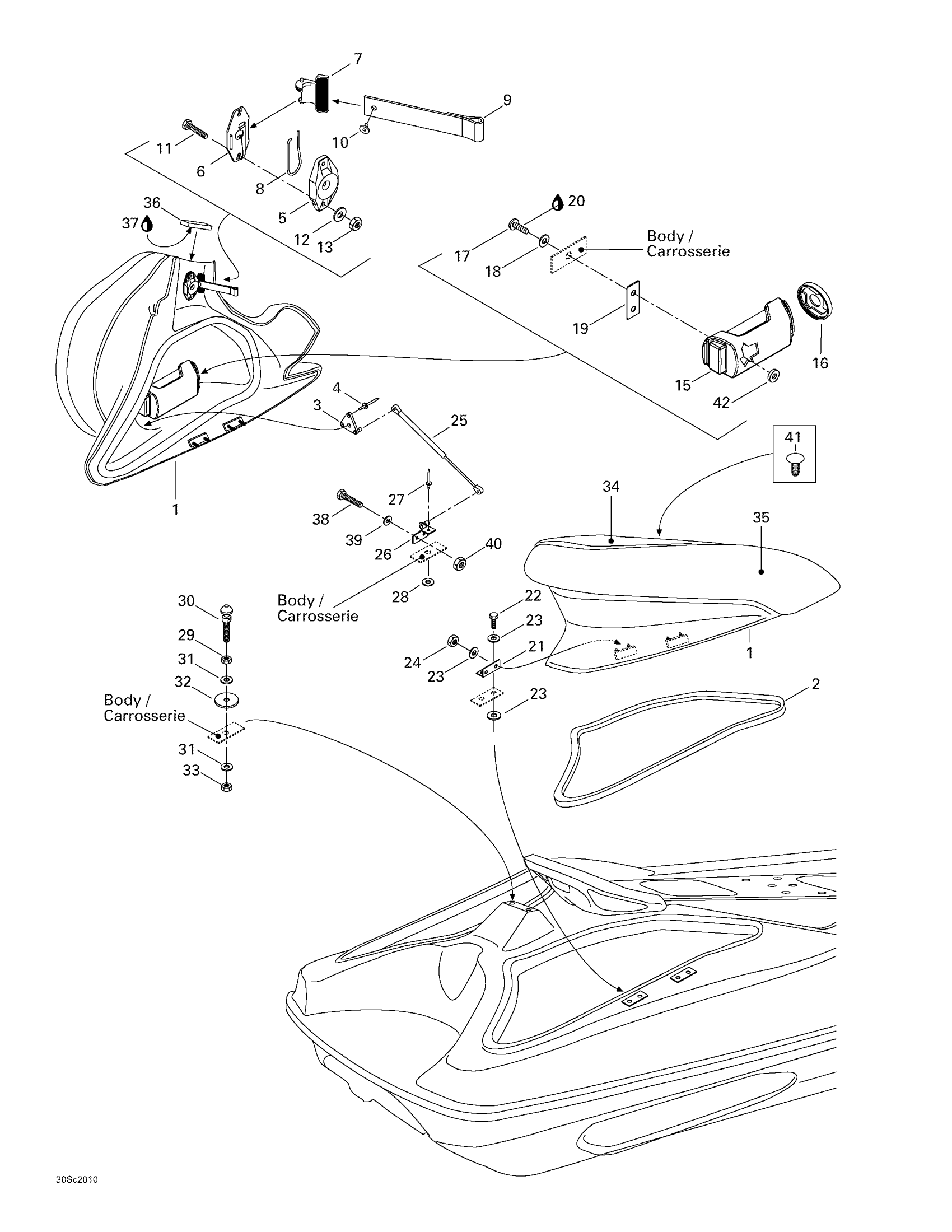

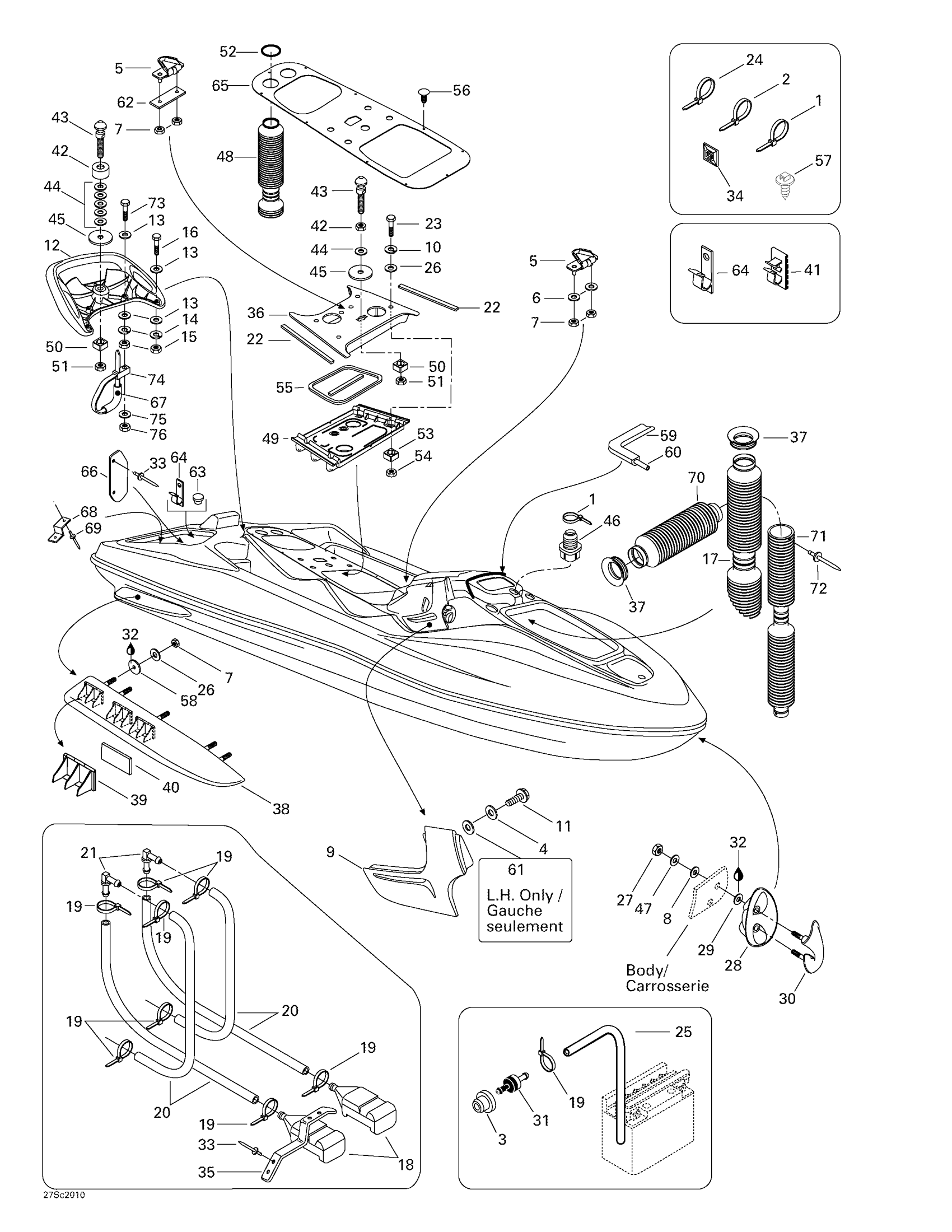

Sea-doo LRV, 5688, 2000 Body Diagram

#

Description
Price

1

Tie-Rap 180 mm

414115200

$0.09

2

Tie Wrap 368 mm

293750008

$0.85

3

Grommet

293720029

$1.13

4

Flat Washer 4 mm, Stainless

234042600

$0.92

5

Hook (Seat)

291001353

Unavailable

6

Flat Washer M6, Stainless

234062600

$0.64

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Rubber Washer

293830037

$2.75

9

RH Intake Grill (Black)

291000854

Unavailable

LH Intake Grill (Black)

291000853

Unavailable

10

Lock Washer Helical M6

234161601

$0.92

11

Hex. Flange Screw K40 X 16

241141660

$1.25

12

Grab Handle (Black) | Includes 42 - 46.

295500369

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.64

14

Lock Washer Helical M6

234161601

$0.92

15

Hex. Nut M6

232061600

$0.91

16

Hex. Screw M6 X 40

207064060

$1.40

17

Vent Hose

204070570

Unavailable

18

Screen Bailer

292000079

Unavailable

19

Tie Wrap 94 mm | 4X4

293750001

$0.83

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

22

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

23

Hex. Screw M6 X 70

207067060

$4.62

24

Tie Wrap 142 mm

293750002

$0.88

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

26

Flat Washer M6, Stainless

234062600

$0.64

27

Hex. Elastic Nut M8

232581600

$1.25

28

Shell (Aztec Red)

292000482

Unavailable

29

Stainless, Flat Washer 8 mm

234081600

$0.46

30

Bow Eye (Aztec Red)

292000481

Unavailable

31

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$35.72

33

Pop Rivet 3/16"

293150008

$0.40

34

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

35

LH SPRING CLIP - Call your local BRP dealership

292000398

Unavailable

36

Bridge Upper

204070571

Unavailable

37

VENT ADAPTOR - Call your local BRP dealership

291001100

Unavailable

38

RH SPONSON - Call your local BRP dealership

292000594

Unavailable

LH SPONSON - Call your local BRP dealership

292000595

Unavailable

39

Insert

293450149

Unavailable

40

CUSHION - Call your local BRP dealership

292000414

Unavailable

41

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

42

Rubber Pad

293830025

Unavailable

43

Stud Latch

291000664

Unavailable

44

Flat Washer 10 mm, Stainless

234002600

$1.85

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

GROMMET - Call your local BRP dealership

293720042

Unavailable

47

Flat Washer 8 mm, Stainless

234082600

$1.98

48

Vent Tube (Rear)

204070579

Unavailable

49

Bridge Lower

291001231

Unavailable

50

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

51

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

52

O-Ring

293300063

Unavailable

53

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

54

Hex. Nut M6

232061600

$0.91

55

Neoprene Seal (1PAC=3M)

219704364

$22.72

56

Black, Dart

293730006

$0.81

57

Mount Dart

293730040

$0.86

58

GASKET - Call your local BRP dealership

293250026

Unavailable

59

Was 293200017 Neoprene Seal

219704365

$118.27

60

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

61

FLAT WASHER - Call your local BRP dealership

211200033

Unavailable

62

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

63

Black Plug

291000279

$5.99

64

Clip Cable

414839700

Unavailable

65

Engine Access Panel

204070561

Unavailable

66

Storage Extension

204050197

Unavailable

67

Hose 5/16"

204560070

Unavailable

68

Retaining Plate

204050308

Unavailable

69

Pop Rivet 3/16"

293150043

$1.61

70

Vent Hose

291001368

Unavailable

71

Vent Hose

204070575

Unavailable

72

Pop Rivet 1/8”

293150015

$0.34

73

Hex. Screw M6 X 65

207166560

$2.69

74

Tie-Rap

293750017

Unavailable

75

Stainless Flat Washer M6

234061600

$0.25

76

Hex. Elastic Stop Nut M6

232561600

$0.92
