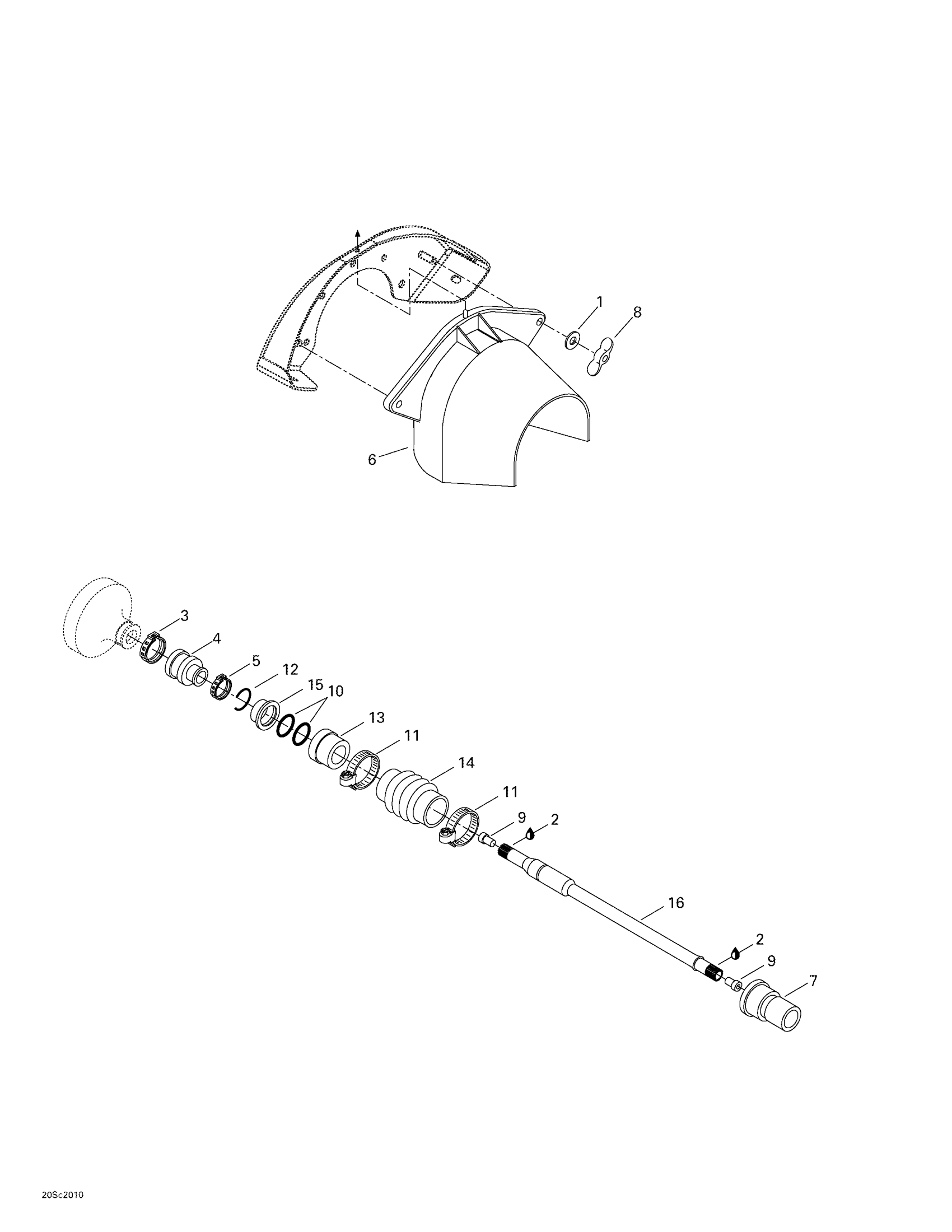

Sea-doo LRV, 5688, 2000 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.43

2

Synthetic Grease, 400 G

293550010

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

7

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

8

Wing Nut M8

232681100

$2.19

9

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

10

O-Ring

293300032

$6.03

11

Norma Clamp

293650075

$11.06

12

C-CLIP - Call your local BRP dealership

272000135

Unavailable

13

Carbon Ring

272000770

$45.99

14

BELLOWS - Call your local BRP dealership

272000184

$27.99

15

Support Ring

272000064

$66.49

16

DRIVE SHAFT - Call your local BRP dealership

272000160

Unavailable
