01- Engine Support And Muffler

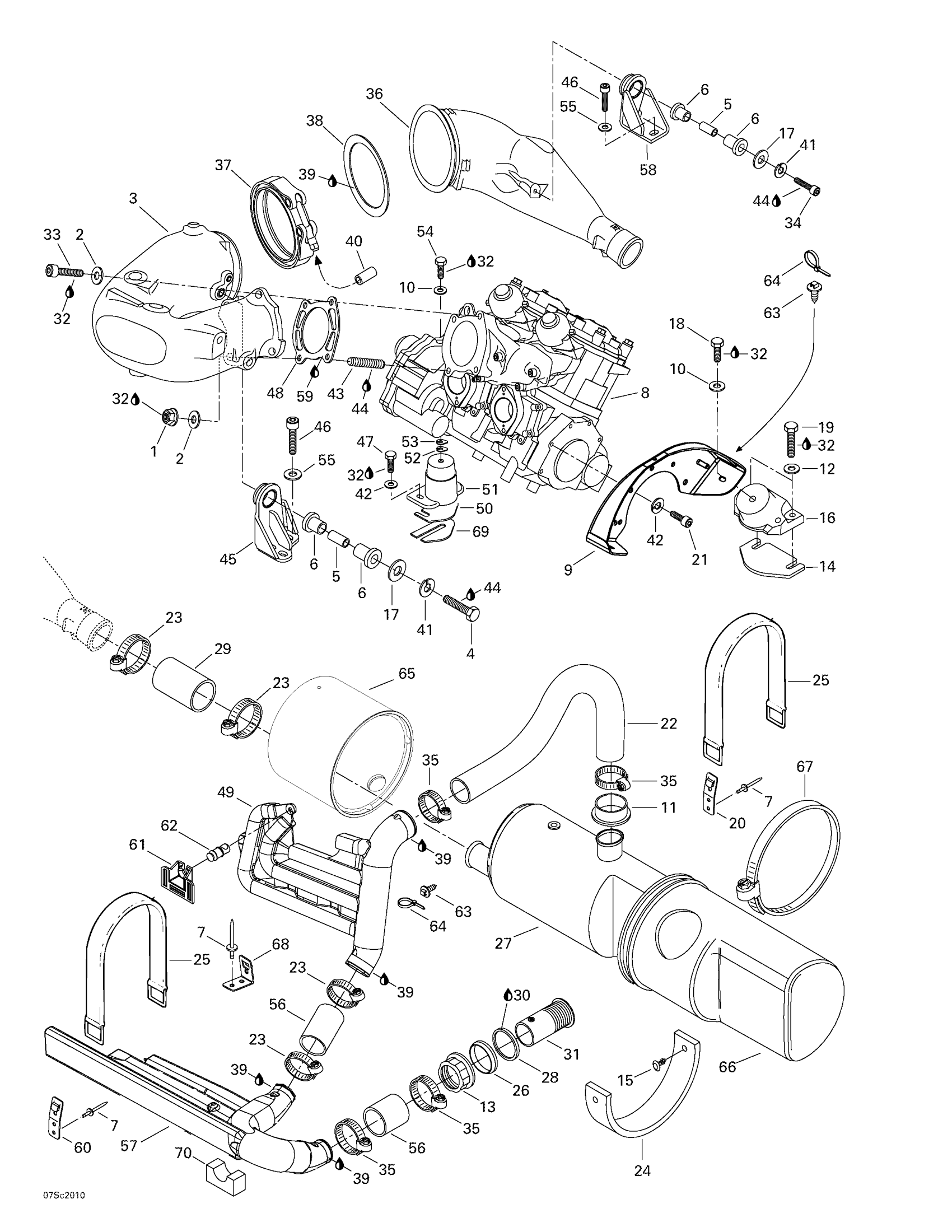

Sea-doo LRV, 5688, 2000 01- Engine Support And Muffler Diagram
#
1
Hex. Flange Nut M10
233101600
$5.29
2
Flat Washer
211200051
$1.68
3
Head Pipe Ass'y | Includes 34 - 38.
274000768
Unavailable
4
Hex. Screw M10 x 40 (Scotch Grip)
207004060
Unavailable
5
Bushing
274000656
Unavailable
6
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
7
Pop Rivet 3/16"
293150008
$0.50
8
Rotax Engine 947 (Silver)
270000461
Unavailable
9
Engine Support
270000359
Unavailable
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Hose Adaptor
274000766
Unavailable
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Nut 72 mm
274000224
$16.34
14
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
15
Black, Dart
293730006
$0.99
16
Rubber Mount, Black
270000421
Unavailable
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
Hex. Screw M8 X 16
207181660
Unavailable
19
Hex. Screw M8 X 40
207184060
$2.22
20
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
21
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
22
Exhaust Hose
274000711
Unavailable
23
Tridon Clamp
293650064
$8.29
24
Rubber Pad
293830055
Unavailable
25
Retainer Strap
293850097
$11.64
26
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
27
Muffler (Black)
274000749
Unavailable
28
GASKET - Call your local BRP dealership
293250041
Unavailable
29
EXHAUST HOSE - Call your local BRP dealership
274000530
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
Socket Head Screw M10 x 35
205003560
Unavailable
34
SOCKET HEAD SCREW M10 X 40 - Call your local BRP dealership
205004060
Unavailable
35
Tridon Clamp
293650064
$8.29
36
Exhaust Cone
274000658
Unavailable
37
EXHAUST CLAMP - Call your local BRP dealership
274000510
Unavailable
38
SEALING RING - Call your local BRP dealership
274000511
Unavailable
39
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
40
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
41
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
42
Stainless, Flat Washer 8 mm
234081600
$0.55
43
Stud M10 x 55
211300025
Unavailable
44
Loctite 271, 10 ml
293800005
$26.99
45
Support Pipe
274000662
Unavailable
46
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
47
Hex. Screw M8 X 40
207184060
$2.22
48
Gasket
293250080
Unavailable
49
LH Resonator
274000655
Unavailable
50
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
51
Rubber Mount, Black
270000422
Unavailable
52
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
53
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
54
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
55
Flat Washer M8.5 x 18
293050001
$3.07
56
Exhaust Hose
274000616
Unavailable
57
Resonator
295500683
Unavailable
58
Pipe Support
274000666
Unavailable
59
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
60
Strap Clip
293850030
$11.12
61
Pad Support
291001352
Unavailable
62
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
63
Mount Dart
293730040
$1.04
64
Tie-Rap 180 mm
414115200
$0.11
65
Muffler Cover
274000732
Unavailable
66
Muffler Cover
274000733
Unavailable
67
Norma Gear Clamp
293650092
Unavailable
68
Strap Clip 90°
204060017
Unavailable
69
Shim 0.3 mm - Call your local BRP dealership
204250048
Unavailable
SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
204250049
Unavailable
70
Support Foam Lower
204060190
Unavailable
