TUNNEL and SEAT LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A005)

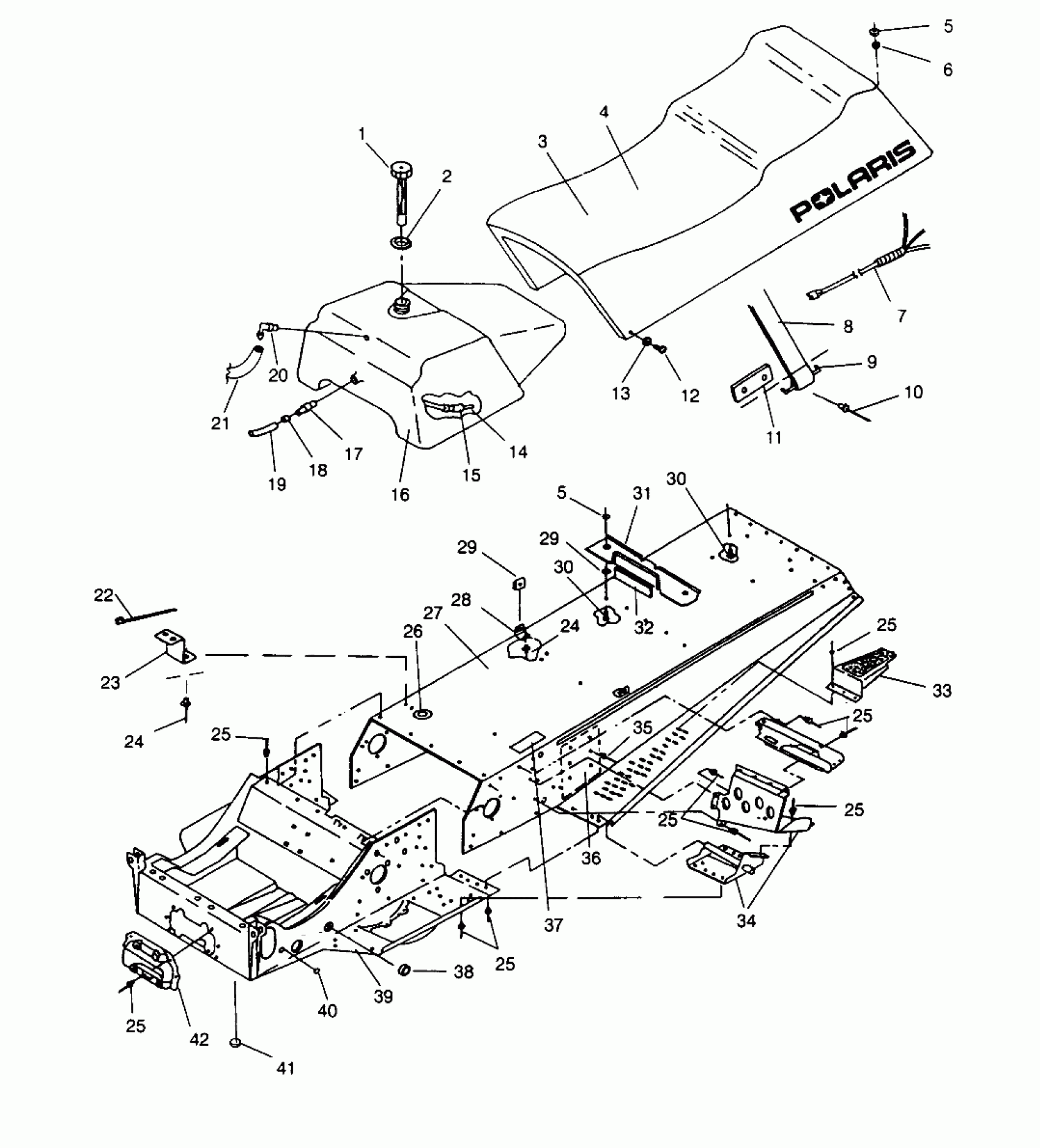

Polaris LITE GT - 0963133 TUNNEL and SEAT LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A005) Diagram
#
1
CAP,GAS,W/GAUGE
2511245
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM,(LITE GT) (Incl. 7)
2681518
Unavailable
4
COVER,SEAT,(LITE GT)
2681519
Unavailable
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER,WROUGHT(10)
7558302
$1.59
7
HARNESS-TAILLIGHT
2460237
Unavailable
8
Belt, Seat
7080434
$14.40
9
WIRE-SEAT-BELT
5223864
Unavailable
10
POP RIVET(50)
7621323
$1.49
11
PLATE-SEAT BELT
5210842
Unavailable
12
SCREW(10)
7515111
$7.19
13
WASHER(10)
7555798
$1.49
14
FUELPICKUP,W/STRAINER
7052037
$12.94
15
RING, COMPRESSION(10)
7080402
$1.60
16
TANK,FUEL,(LITE GT) Substituted by 2520179 (Incl. 14-17, 20)
2511214
Unavailable
17
FITTING - OUTLET(10)
7052023
$24.99
18
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
19
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
21
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
BRKT,STAND,BLK.
5220520-067
$4.13
24
RIVET(50)
7621453
$3.19
24
RIVET(50)
7621453
$3.19
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
26
GROMMET RUBBER
5410021
Unavailable
27
TUNNEL, (LITE GT) (Incl. 29, 36)
1011864
$366.65
28
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
29
SPEED NUT(10)
7670021
$6.99
29
SPEED NUT(10)
7670021
$6.99
30
BOLT(10)
7512193
$2.39
30
BOLT(10)
7512193
$2.39
31
STRAP,GASTANK,BLK.
5222330-067
Unavailable
32
CUSHION,TANK H.D.
5420126
Unavailable
33
FOOTREST,LH REAR
5220893
Unavailable
33
FOOTREST,RH REAR
5220894
$32.15
33
PAD,LH FOOT SAFETY
5830007
$7.89
33
PAD,RH FOOT SAFETY
5830008
$4.92
34
FOOTREST ASM,LH
1011830
$140.79
34
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
35
RIVET ,(50)
7661837
$1.49
36
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
37
Pad, Air Box
5810502
Unavailable
38
BUSHING,SNAP(10)
7080404
Unavailable
39
BULKHEAD,BLK,(94LITE) Substituted by 1012587-067
1011983-067
$649.99
40
PLUG, HOLE(10)
7080416
$5.65
41
PLUG-HOLE
7080398
$4.84
42
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
