RACK and TUNNEL EXTENSION LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A013)

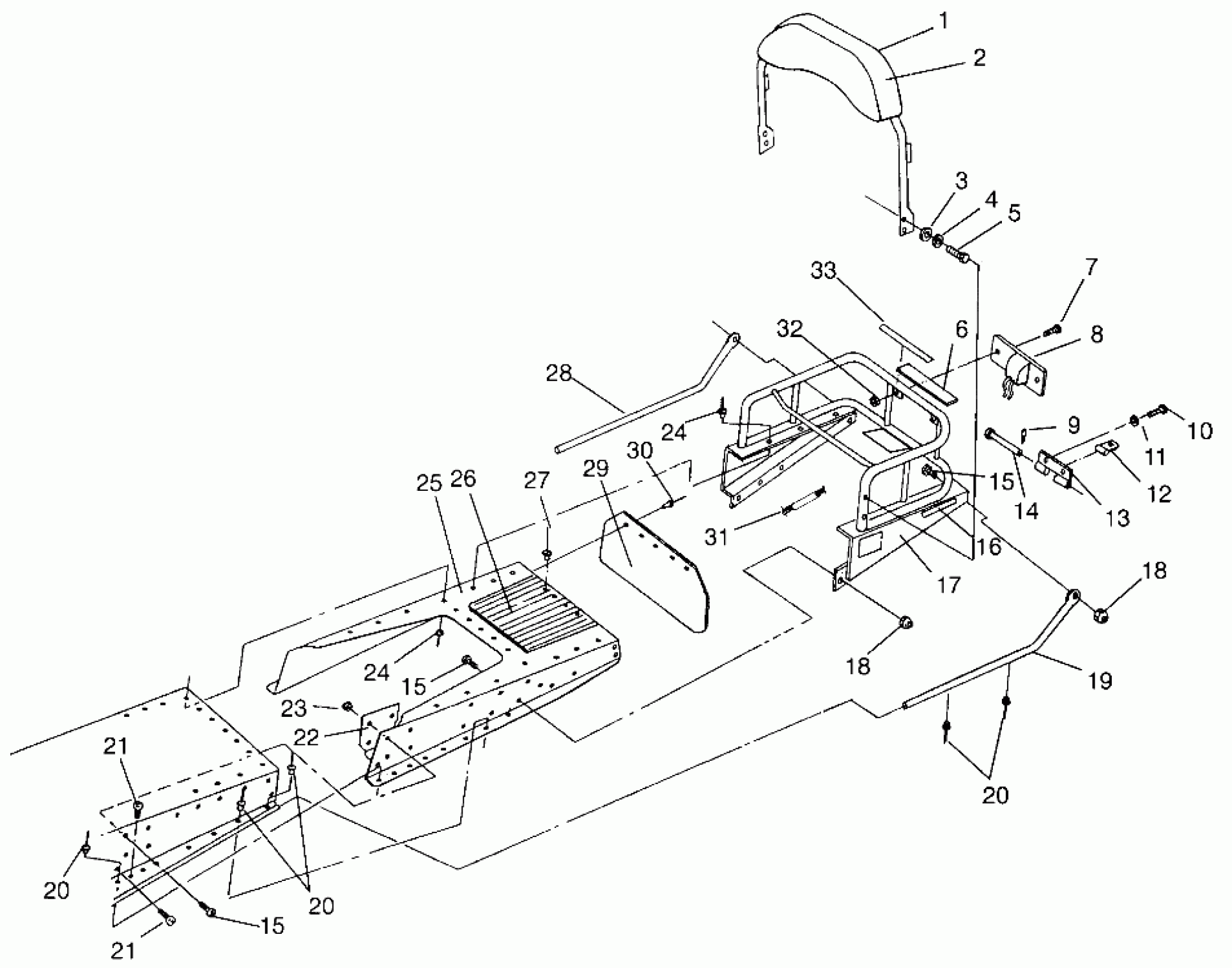

Polaris LITE GT - 0963133 RACK and TUNNEL EXTENSION LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A013) Diagram
#
1
BACKREST ASM.
2681356
$284.75
2
COVER, BACKREST
2681265
$257.13
3
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
4
WASHER(10)
7552606
$4.79
5
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
6
DECAL,TRACK/RACK,LITE GT [No Longer Available]
7073291
Unavailable
7
SCREW(10)
7511985
Unavailable
8
TAILLIGHT ASM. (Incl. Bulb, Lens & Gasket)
4030041
$91.19
8
Gasket
4032015
Unavailable
8
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
8
LENS-TAIL-LIGHT
4032014
$36.41
9
COTTER PIN(10)
7661401
$1.49
10
SCREW(10) Substituted by 7512490
7512402
Unavailable
11
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
12
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
13
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
14
CLEVIS PIN(10)
7662209
$9.59
15
BOLT(10)
7515107
Unavailable
15
BOLT(10)
7515107
Unavailable
15
BOLT(10)
7515107
Unavailable
16
REFLECTOR RED
2670070
$9.91
17
RACK,REAR,BLK.
2670129-067
Unavailable
18
NUT, LOCK(10)
7542131
Unavailable
18
NUT, LOCK(10)
7542131
Unavailable
19
TUBE,LH TUNNEL,BLK.
5224461-067
Unavailable
20
RIVET(50)
7621453
$3.19
20
RIVET(50)
7621453
$3.19
20
RIVET(50)
7621453
$3.19
21
BOLT(10)
7515106
$2.39
21
BOLT(10)
7515106
$2.39
22
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
22
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
23
NUT HEX-LOCK(10)
7542101
$3.99
24
RIVET(50)
7621470
$3.17
24
RIVET(50)
7621470
$3.17
25
PANEL,R.CLOSEOFF
5222608-067
Unavailable
26
Protector, Bed
5410619
$22.06
27
RIVET(50)
7621463
Unavailable
28
TUBE,RH TUNNEL,BLK.
5224466-067
$28.95
29
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
30
POP RIVET(50)
7621418
$1.49
31
Protector, Harness
5521246
$3.05
32
NUT(10)
7541925
$1.49
33
DECAL,WARN.,RACK [No Longer Available]
7073290
Unavailable
