NOSEPAN and CONSOLE LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A007)

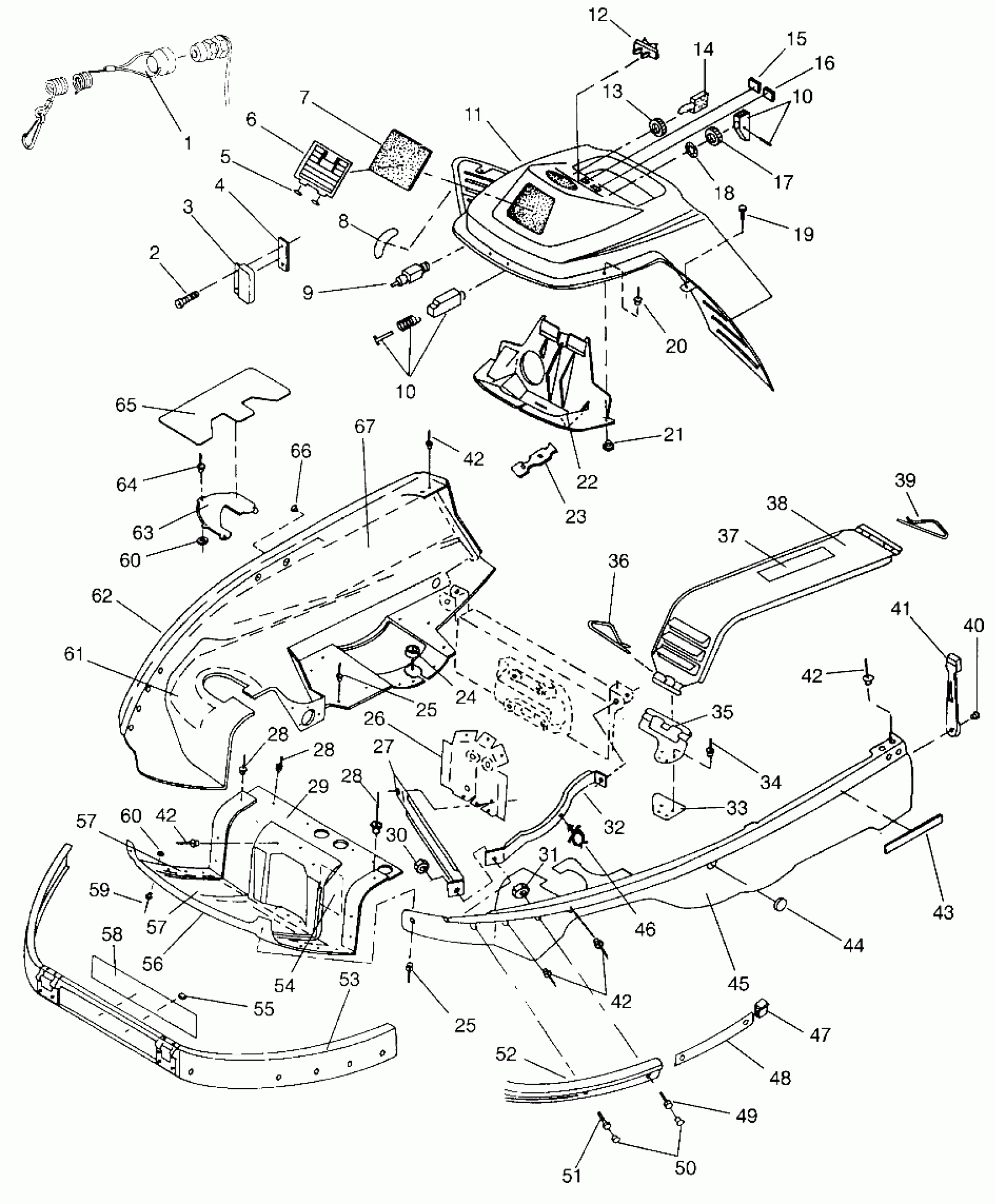

Polaris LITE GT - 0963133 NOSEPAN and CONSOLE LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A007) Diagram
#
1
SWITCH,TETHER Substituted by 2870668 (Euro Only)
4110156
$84.99
2
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
3
REGULATOR,14 VAC.LR-9
4060122
Unavailable
4
HEAT SINK
5210650
Unavailable
5
SEAL, O RING,(10)
5410374
$1.83
6
LOUVER, INTAKE
5431211-070
Unavailable
7
Foam, Intake
5810458
Unavailable
8
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
9
SWITCH IGNITION
4110038
$44.51
10
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
10
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
11
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070
5431636
Unavailable
12
SWITCH,ROCKER,W/INDIC.
4110195
Unavailable
13
NUT-IGNITION SWITCH
7542807
Unavailable
14
KEY, IGNITION
5410378
$13.75
15
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
16
INDICATOR,'ACC'WARN.
4040014
Unavailable
17
Nut
7080229
$19.99
18
WASHER-LOCK(10)
7571610
$3.99
19
SCREW(10)
7512253
$3.99
20
RIVET,(50)
7621336
$1.59
21
RIVET BURR(50)
7555727
$1.49
22
CONSOLE, INNER
5431214-070
$66.39
23
STRAP,TOOL COMPARTMENT
5410425
Unavailable
24
SHIELD,NOSEPAN DRAIN HOLE
5811078
Unavailable
25
RIVET, BLIND(50)
7621467
$1.49
25
RIVET, BLIND(50)
7621467
$1.49
26
BRKT,SUPPORT,BLK.
5222356-067
$38.19
27
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
27
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
28
RIVET(50)
7621479
$1.99
28
RIVET(50)
7621479
$1.99
28
RIVET(50)
7621479
$1.99
29
TAPE, FOIL
5810476
Unavailable
30
NUT, LOCK(10)
7542103
$5.59
31
NUT(10)
7542124
Unavailable
32
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
32
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
33
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
34
RIVET(50)
7621449
$3.19
35
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
36
PIN
5224440
Unavailable
37
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
38
GUARD, CLUTCH Substituted by 5243761 (U.S.)
5230124
Unavailable
38
GUARD,CLUTCH(SWED.LITE GT) (Euro)
1011839
Unavailable
39
PIN, FRONT
7080311
Unavailable
40
RIVET,(50)
7621601
Unavailable
41
STRAP, HOOD
5410573
Unavailable
42
RIVET(50)
7621472
$1.49
42
RIVET(50)
7621472
$1.49
42
RIVET(50)
7621472
$1.49
42
RIVET(50)
7621472
$1.49
43
REFLECTOR AMBER
2670071
Unavailable
44
PLUG,CATCH HOLE
5410582
$7.27
45
NOSEPAN,LH,BLK.
5431155-070
Unavailable
46
CLIP, PLASTIC(10)
4020139
$4.79
47
CAP,BUMPER END,LH,BLK Substituted by 5431250-070
5431250
Unavailable
47
CAP,BUMPER END,RH,BLK Substituted by 5431251-070
5431251
Unavailable
48
PLATE,BUMPER
5222611-067
Unavailable
49
SCREW(10)
7512164
Unavailable
50
PLUG, BUTTON(10)
7080430
$3.51
51
SCREW(10)
7515102
$4.79
52
BUMPER,FRT,BLK.
5224434-067
Unavailable
53
HINGE,LOWER,BLK.
2635010-067
Unavailable
54
TAPE, FOIL
5810509
Unavailable
55
FASTENER-U TYPE CLIP
7670040
$3.99
56
NOSEPAN, CTR.
5431154-070
Unavailable
57
Tape, Foil
5810475
Unavailable
57
Tape, Foil
5810475
Unavailable
58
SCREEN
5211267-067
Unavailable
59
POP RIVET(50)
7621418
$1.49
60
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
60
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
61
TAPE, FOIL
5810477
Unavailable
62
NOSEPAN,RH,BLK.
5431156-070
Unavailable
63
COVER, RH SHOCK
5431253
Unavailable
63
COVER, LH SHOCK
5431252
Unavailable
64
RIVET(50)
7621457
$1.49
65
TAPE, FOIL,(PAN)
5810482
Unavailable
66
CLIP, DART (Nylon)
7670067
$3.99
67
KIT-CHOKE CONTROL
2200188
$24.27
67
TAPE, FOIL
5810478
Unavailable
