- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1996
- LITE GT - 0963133
HOOD LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A009)

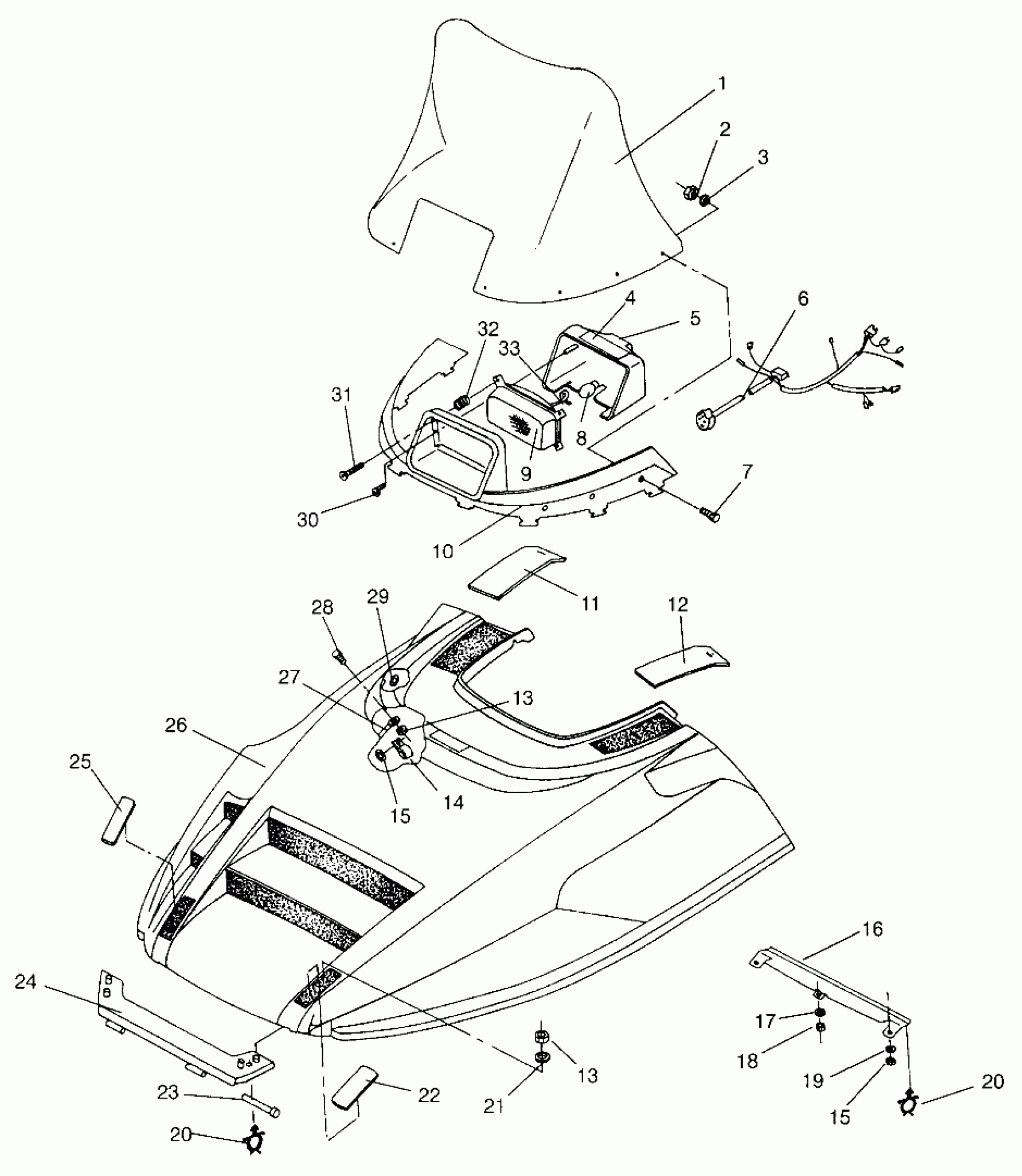

Polaris LITE GT - 0963133 HOOD LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308A009) Diagram
#
Description
Price
1
WINDSHIELD, (LITE GT)
5431338
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
3
WASHER(10) Substituted by 7558201
7555799
Unavailable
4
DECAL,OPER.CAUTION
7075356
Unavailable
5
COVER, HEADLAMP
5431209-070
Unavailable
6
HARNESS,MAIN WIRE(LITE GT)
2460426
$65.87
7
SCREW(10)
7512023
Unavailable
8
BULB, H/L
4030028
$29.99
9
HEADLIGHT ASM.
4032038
Unavailable
10
MOUNT,W/S,DARK CLOISONNE
5431208-204
Unavailable
11
COVER ASM,LH,TOOL,DK CLOISSONE
2652131-204
Unavailable
12
COVER ASM,RH,TOOL,DK CLOISSONE
2652132-204
Unavailable
13
NUT-LOCK(10)
7542122
$1.49
13
NUT-LOCK(10)
7542122
$1.49
14
CLAMP(10)
7080583
Unavailable
15
PUSH-ON NUT(10)
7670017
$1.83
15
PUSH-ON NUT(10)
7670017
$1.83
16
DEFLECTOR, HOOD
5222477
Unavailable
17
WASHER, FLAT(10)
7558201
$5.79
18
NUT, PUSH-ON(10)
7670068
$2.39
19
WASHER(10)
7555806
$1.49
20
CLIP, PLASTIC(10)
4020139
$4.79
20
CLIP, PLASTIC(10)
4020139
$4.79
21
WASHER,WROUGHT(10)
7558302
$1.59
22
COVER,RH,HINGE,CLOISONE
5431218-204
Unavailable
23
RIVET(50)
7661626
Unavailable
24
HINGE, BLK.
2635009-067
Unavailable
25
COVER,LH,HINGE,CLOISONE
5431217-204
$19.83
26
HOOD ASM.LITE,CLOISONE (Incl. Foam/Foil)
2631747-204
Unavailable
27
CABLE,HOOD RETAINER
7080414
Unavailable
28
BOLT(10)
7512261
$4.99
29
RETAINER,WINDSHIELD,(10)
5410970
$1.49
30
SCREW(10)
7512054
$2.39
31
SCREW, ADJ.(10)
4032003
Unavailable
32
SPRING-ADJ
4032002
Unavailable
33
RETAINER,H/L BULB
4032063
Unavailable
