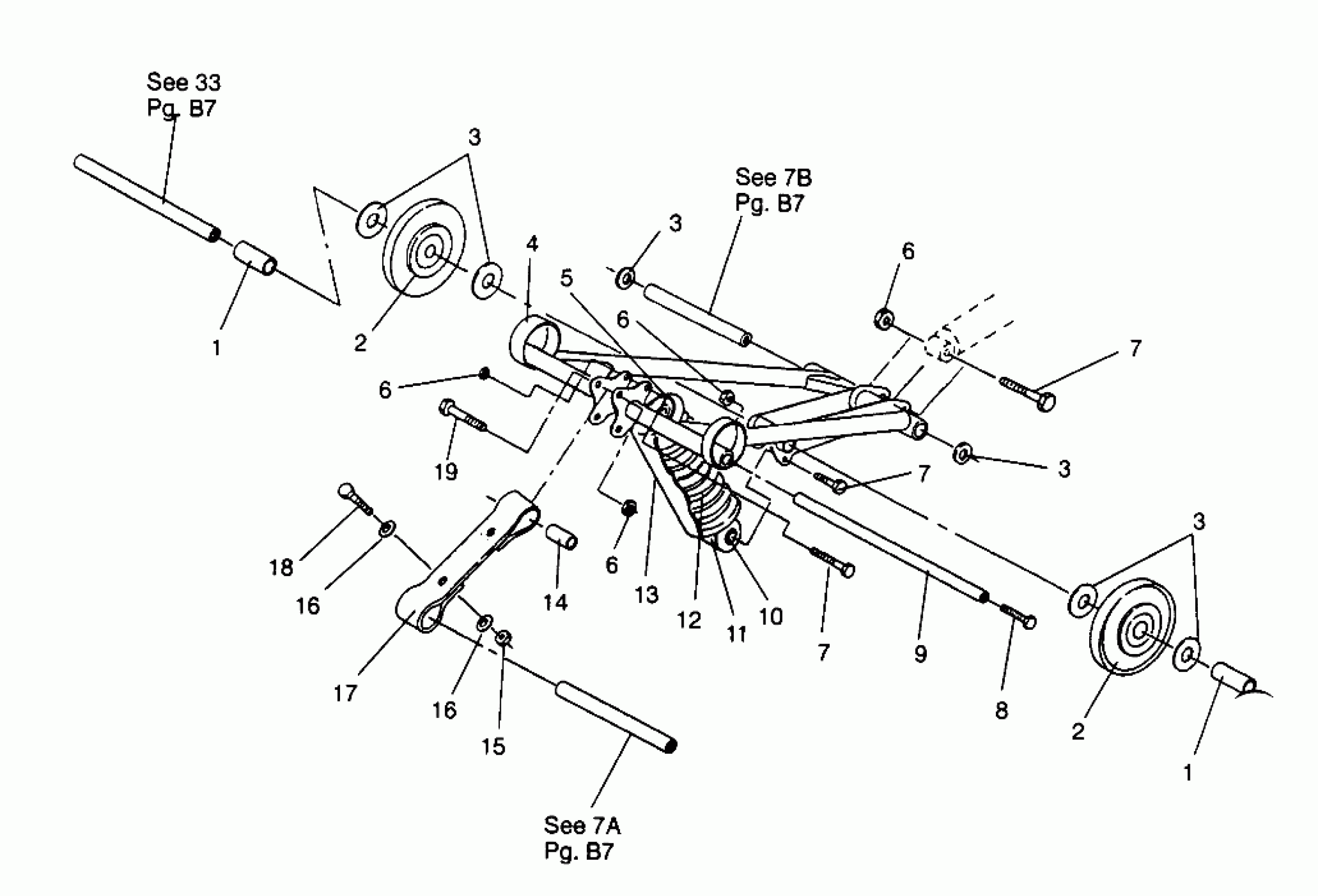

Polaris LITE GT - 0963133 FRONT TORQUE ARM LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308B009) Diagram

#

Description
Price

1

SPACER, OUTER

5332784

Unavailable

1

SPACER, OUTER

5332784

Unavailable

2

Asm., Bogie Wheel (See Pg. A18, Ref. 21)

-------

Unavailable

2

Asm., Bogie Wheel (See Pg. A18, Ref. 21)

-------

Unavailable

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

ARM,F.TORQUE,BLK.

1540722-067

Unavailable

5

RETAINER-TOP

5220225

$10.39

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515415

$1.49

8

BOLT(10)

7515432

Unavailable

9

SHAFT,MOUNTING

5010149

Unavailable

10

SHOCK-SUSP

7041142

Unavailable

11

SPACER,SHOCK RETAINER(10)

5210953

$6.39

12

SPRING-SHOCK

7041127

Unavailable

13

SHIELD-SPRING

5430671

$24.27

14

BUSHING,SUSPENSION

5010212

Unavailable

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

WASHER(10)

7555716

$1.59

16

WASHER(10)

7555716

$1.59

17

STRAP, LIMITER

5410397

Unavailable

18

BOLT(10)

7515307

$3.99

19

BOLT(10)

7515438

$4.79
