ENGINE MOUNTING LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308B013)

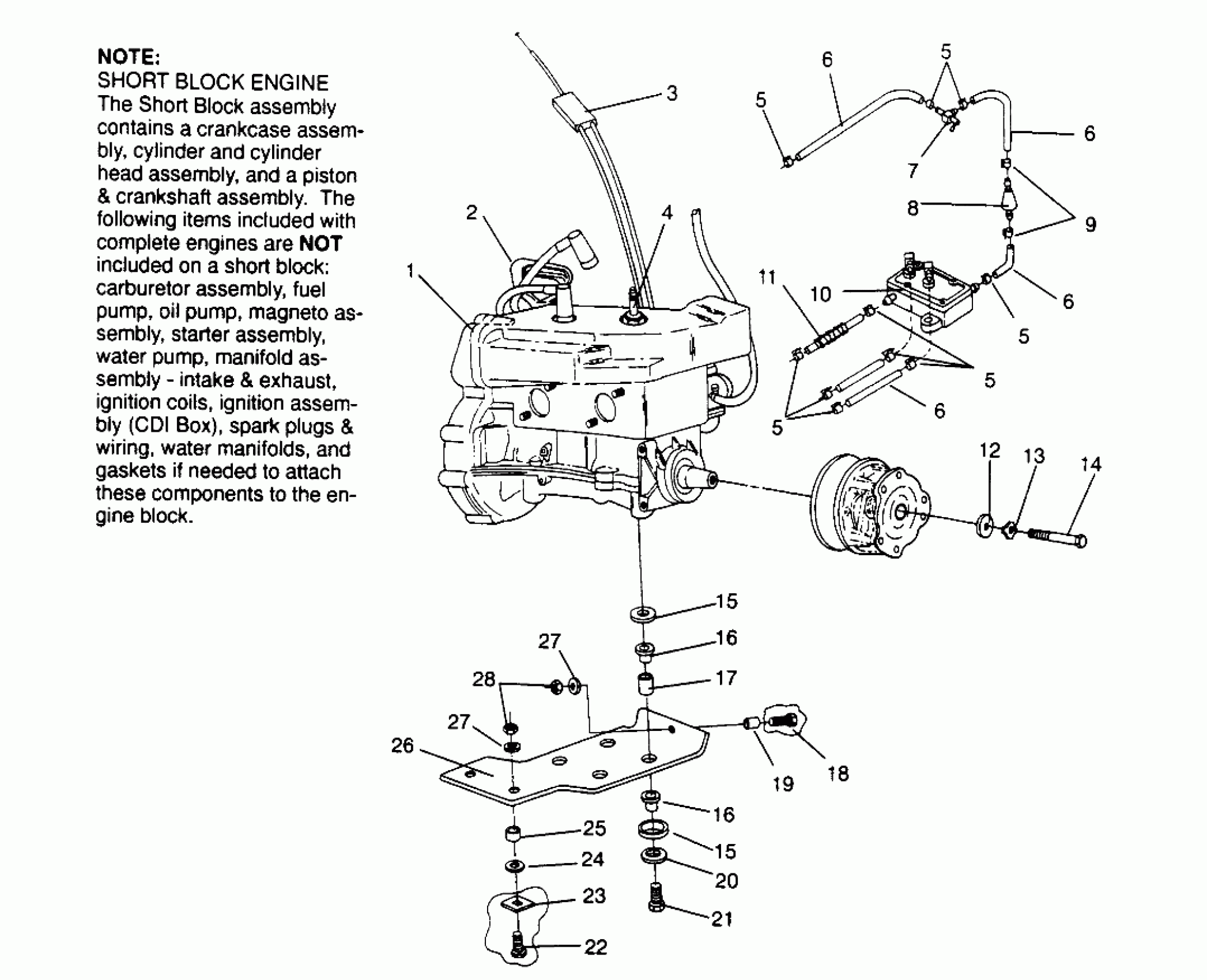

Polaris LITE GT - 0963133 ENGINE MOUNTING LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308B013) Diagram
#
Description
Price
1
ENG.(S.B.)EC34-2PM-02/04
3084620
Unavailable
2
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
3
CABLE, THROTTLE
7080557
$154.99
5
HOSE CLAMP, RED (Red)
7080003
$1.49
5
HOSE CLAMP, RED (Red)
7080003
$1.49
5
HOSE CLAMP, RED (Red)
7080003
$1.49
5
HOSE CLAMP, RED (Red)
7080003
$1.49
5
HOSE CLAMP, RED (Red)
7080003
$1.49
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
6
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
7
VALVE,FUEL SHUT-OFF
7052060
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
CLAMP, HOSE
7080490
Unavailable
10
Fuel Pump (See Pg. A33)
-------
Unavailable
11
TUBE,CONVOLUTED,SVC.
5521278
Unavailable
12
WASHER,CLUTCH RETAINER
5010278
Unavailable
13
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
14
BOLT(10)
7512566
$30.79
15
CAP
5221901
Unavailable
16
DAMPNER-VIB.
5410320
Unavailable
16
DAMPNER-VIB.
5410320
Unavailable
17
BUSHING-MOTOR MT.
5010163
Unavailable
18
BOLT(10)
7515503
$5.43
19
BUSHING,THREADED
5020840
$9.03
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512515
$3.19
22
BOLT(10)
7515510
$3.59
23
Plate, Spacer
5211201
$4.95
24
WASHER(10)
7555823
$3.99
25
BUSHING,THREADED
5020562
$3.83
26
PLATE,MOTOR MOUNT Substituted by 5224836
5222292
Unavailable
27
WASHER(10)
7555761
$2.39
27
WASHER(10)
7555761
$2.39
28
NUT LOCK(10)
7542403
$3.99
