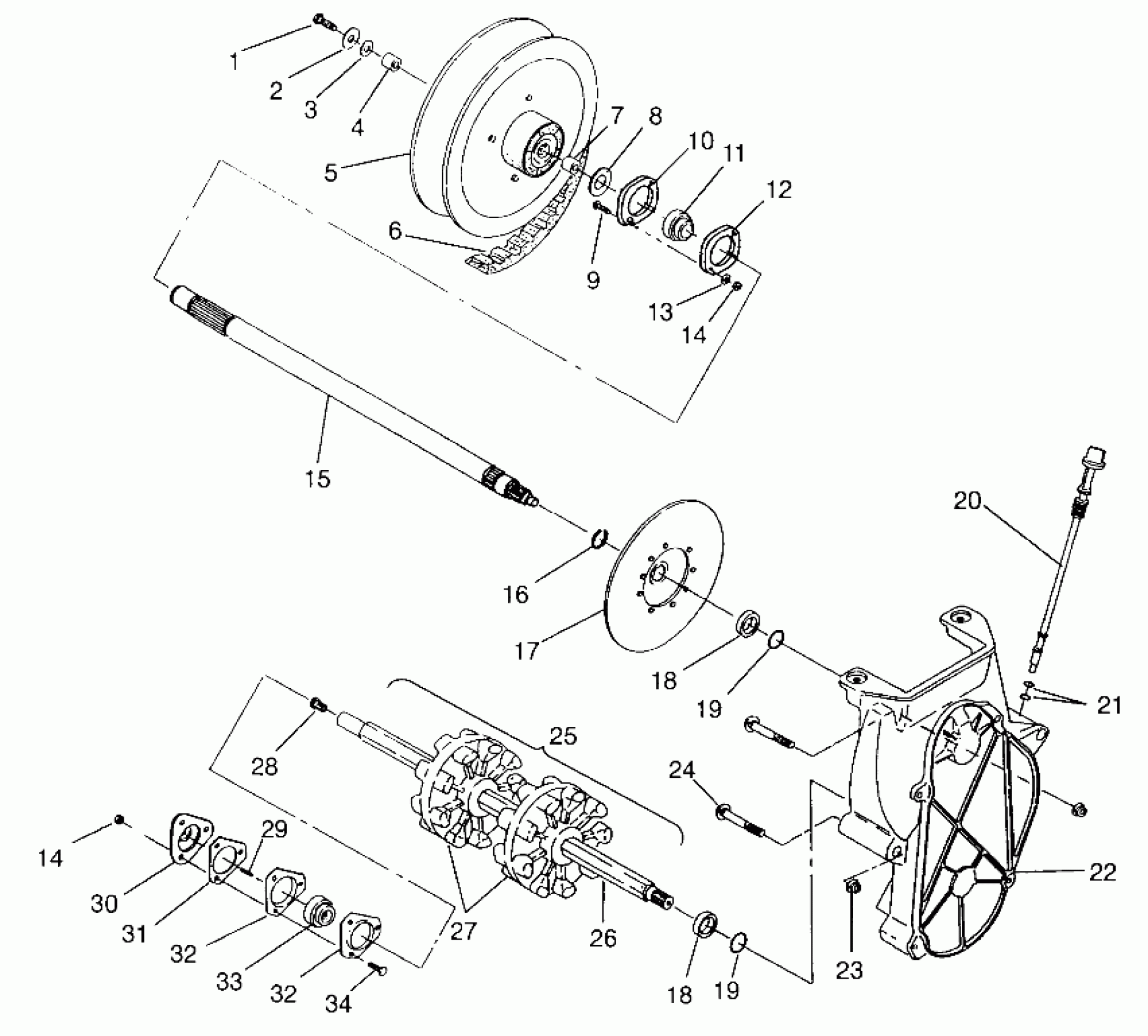

Polaris LITE GT - 0963133 DRIVE TRAIN LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308B006) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER,DRIVEN CLUTCH

5020645

Unavailable

5

Asm., Driven Clutch (See Pg. )

-------

Unavailable

6

BELT, DRIVE(5)

3211058

$79.99

7

SPACER, DRIVEN Substituted by 2200385

5020596

Unavailable

8

WASHER SPECIAL(10)

7556509

Unavailable

9

BOLT(10) Substituted by 7512377

7512394

Unavailable

10

FLANGETTE,(GREASABLE)

5222647

$24.27

11

BEARING,JACKSHAFT

3514519

$64.99

12

FLANGETTE, (2-BOLT)

5222393

Unavailable

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

JACKSHAFT ASM. (Incl. 16)

1332146-067

Unavailable

16

RING, RETAINING(10)

7710422

$3.99

17

DISC ASM, BRAKE

1910086

Unavailable

18

SLEEVE, SEAL

5020588

$23.99

18

SLEEVE, SEAL

5020588

$23.99

19

O RING,(10)

5410613

$1.99

19

O RING,(10)

5410613

$1.99

20

DIPSTICK Substituted by 1332143

5431419

Unavailable

21

O-RING

5410675

$1.60

22

Chaincase (See Pg. )

-------

Unavailable

23

NUT(10)

7542423

$3.99

24

BOLT(10)

7515428

$4.79

25

DRIVESHAFT ASM,HD,2DR Substituted by 1590250 (Incl. 26-28)

1590249

Unavailable

26

SHAFT,DRIVE(HI.STRENGTH)

6230083

Unavailable

27

SPROCKET, 9T

5430571

Unavailable

28

BUSHING METAL SPEEDO

3280019

$11.99

29

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

30

ADAPTER,DRIVE,W/ZERK

3280116

$101.17

31

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

32

FLANGETTE

5222751

$16.44

32

FLANGETTE

5222751

$16.44

33

BEARING,DRIVESHAFT

3514518

$64.99

34

BOLT(10)

7512331

$3.99
