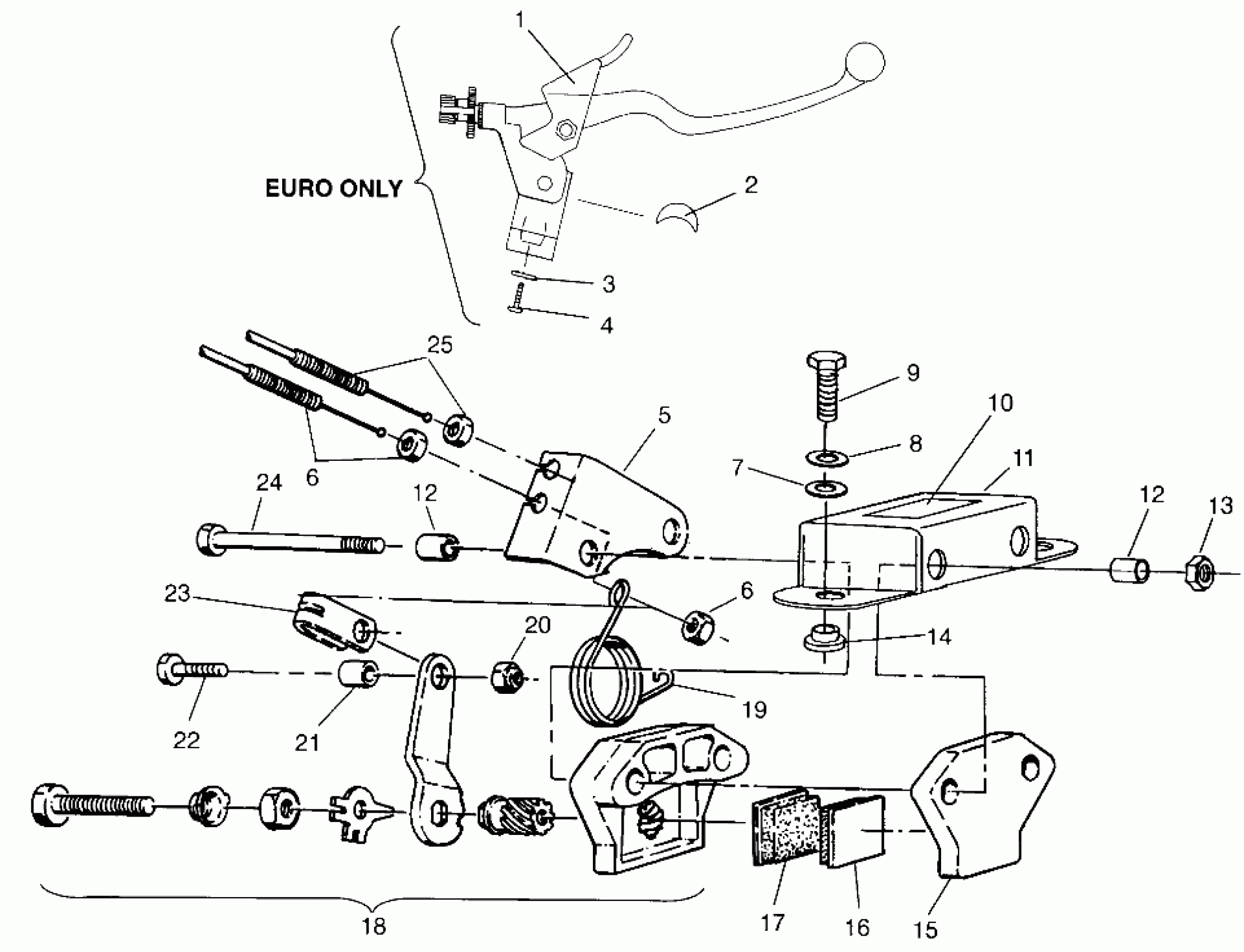

Polaris LITE GT - 0963133 BRAKE LITE GT 0963133 and EUROPEAN LITE GT E963133 (4933083308C002) Diagram

#

Description
Price

1

LEVER ASM,BRAKE (Euro)

2050039

Unavailable

2

SPACER,BRAKE LEVER

5130860

$13.59

3

WASHER,TOOTH-LOCK(10)

7555780

Unavailable

4

SCREW(10)

7512040

Unavailable

5

BRKT,BRAKE,BLK. (US)

5220211-067

$4.10

5

BRACKET (Euro)

1910024-067

$12.43

6

Cable, Brake

7080613

Unavailable

6

Cable, Brake

7080613

Unavailable

7

WASHER(10)

7555806

$1.49

8

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

9

BOLT(10)

7515440

$3.99

10

DECAL, BRAKE [No Longer Available]

7072088

Unavailable

11

BRKT,BRAKE,TOP MT.

5240240-067

$19.83

12

BUSHING

1930559

Unavailable

12

BUSHING

1930559

Unavailable

13

NUT(10)

7542425

$1.75

14

SPACER,ALIGNMENT

5020695

$2.87

15

CALIPER

5630305

$36.41

16

PUCK

1930592

Unavailable

17

PAD, BRAKE,(THICK)

1930588

Unavailable

18

CALIPER

1930593

Unavailable

19

SPRING, BRAKE RETURN

7041147

Unavailable

20

NUT-LOCK(10)

7542122

$1.49

21

BUSHING

5332795

$5.56

22

BOLT(10)

7512240

$3.99

23

PIN, CLEVIS (Euro)

7080316

Unavailable

23

PIN, CLEVIS (U.S.)

7080316

Unavailable

24

BOLT(10)

7515478

$11.43

25

CABLE, BRAKE (Euro)

7080349

Unavailable
