TUNNEL and SEAT LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166A005)

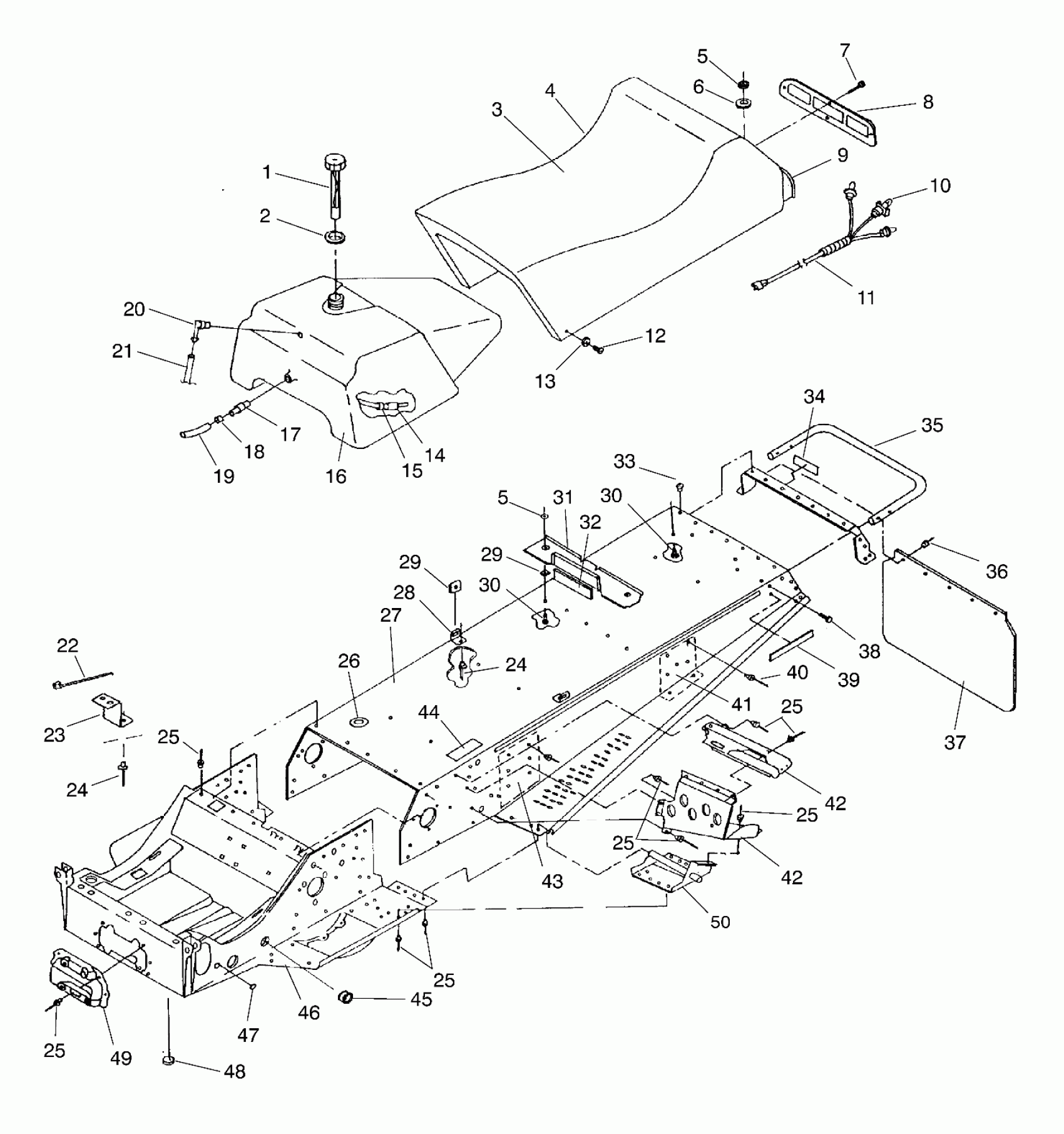

Polaris LITE - 0963433 TUNNEL and SEAT LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166A005) Diagram
#
1
CAP,GAS,W/GAUGE
2511245
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM,(LITE DLX.) (Dlx)(Incl. 4-11)
2681766
Unavailable
3
SEAT ASM,(LITE) [No Longer Available] (Lite)(Incl. 4-11)
2681764
Unavailable
4
COVER,SEAT (Deluxe)
2681767
Unavailable
4
COVER,SEAT,(LITE) (Lite)
2681765
Unavailable
5
NUT-LOCK(10)
7542122
$1.49
5
NUT-LOCK(10)
7542122
$1.49
6
WASHER,WROUGHT(10)
7558302
$1.59
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
Harness, Taillight
2460399
Unavailable
12
SCREW(10)
7515111
$7.19
13
WASHER(10)
7555798
$1.49
14
FUELPICKUP,W/STRAINER
7052037
$12.94
15
RING, COMPRESSION(10)
7080402
$1.60
16
TANK,FUEL,(LITE GT) Substituted by 2520179 (Incl. 14-21)
2511214
Unavailable
17
FITTING - OUTLET(10)
7052023
$24.99
18
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
19
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
21
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
BRKT,STAND,BLK.
5220520-067
$4.13
24
RIVET(50)
7621453
$3.19
24
RIVET(50)
7621453
$3.19
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
25
RIVET-3/16-.090-.290
7661637
$1.49
26
GROMMET RUBBER
5410021
Unavailable
27
TUNNEL ASM,(LITE) (Incl. 29, 41, 43)
1011881
$420.41
28
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
29
SPEED NUT(10)
7670021
$6.99
29
SPEED NUT(10)
7670021
$6.99
30
BOLT(10)
7512193
$2.39
30
BOLT(10)
7512193
$2.39
31
STRAP,GASTANK,BLK.
5222330-067
Unavailable
32
CUSHION,TANK H.D.
5420126
Unavailable
33
RIVET ,(50)
7661836
$0.63
34
DECAL,LH,TRACK/SEAT,ENGLISH
7075414
Unavailable
34
DECAL,RH,TRACK/SEAT,FRENCH
7075415
Unavailable
35
BUMPER, REAR
5224480-067
Unavailable
36
POP RIVET(50)
7621418
$1.49
37
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
38
SCREW(10)
7512252
Unavailable
39
REFLECTOR RED
2670070
$9.91
40
RIVET ,(50)
7661837
$1.49
41
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
41
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
42
FOOTREST ASM,LH
1011830
$140.79
42
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
42
FOOTREST ASM,LH
1011830
$140.79
42
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
43
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
44
Pad, Air Box
5810502
Unavailable
45
BUSHING,SNAP(10)
7080404
Unavailable
46
BULKHEAD,BLK,(94LITE) Substituted by 1012587-067
1011983-067
$649.99
47
PLUG, HOLE(10)
7080416
$5.65
48
PLUG-HOLE
7080398
$4.84
49
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
50
SUPPORT, TRAILING ARM, LH, BLACK
1011792-067
Unavailable
50
SUPPORT, TRAILING ARM, RH, BLACK
1011793-067
Unavailable
