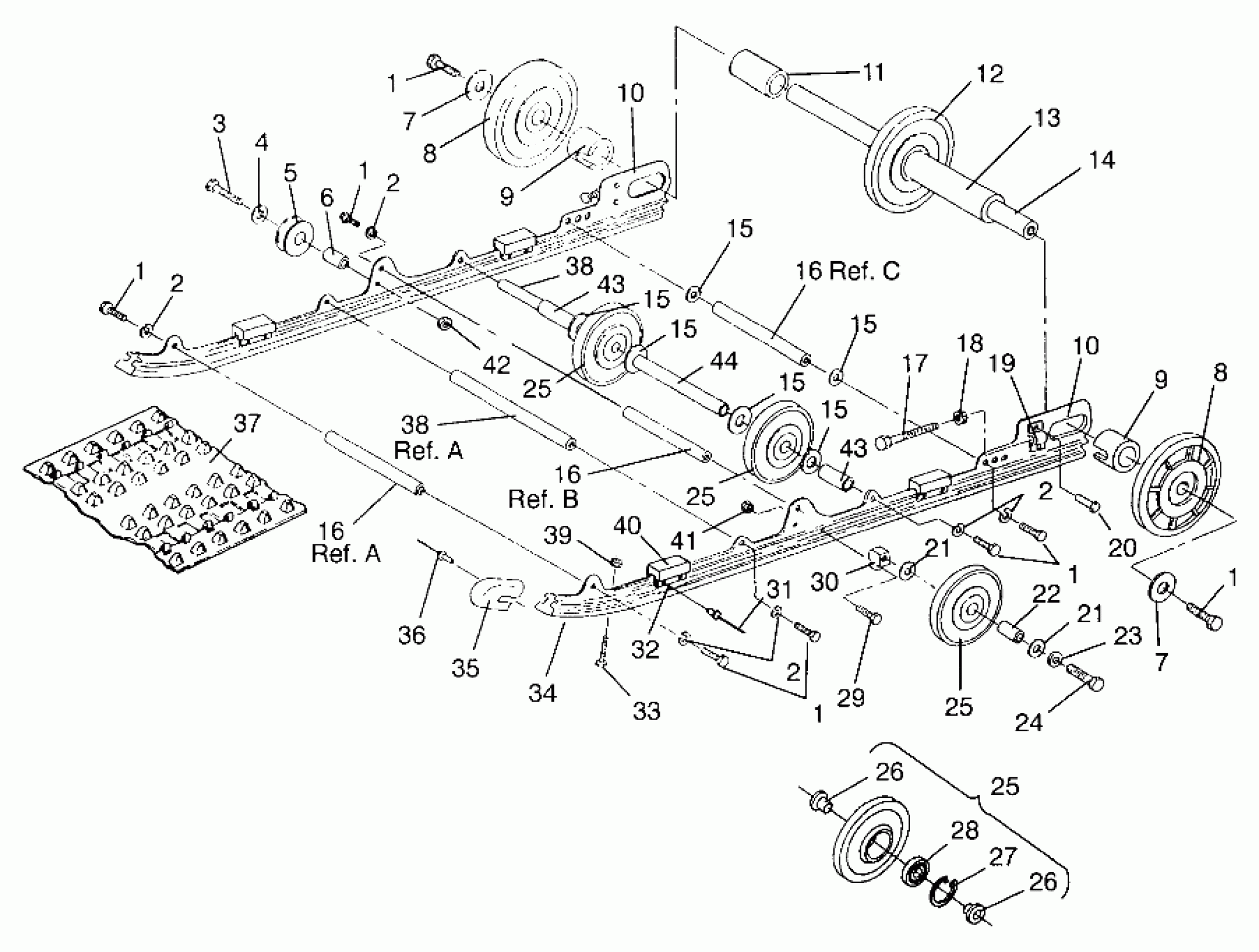

Polaris LITE - 0963433 SUSPENSION LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B008) Diagram

#

Description
Price

1

BOLT

7515542

Unavailable

1

BOLT

7515542

Unavailable

1

BOLT

7515542

Unavailable

1

BOLT

7515542

Unavailable

1

BOLT

7515542

Unavailable

1

BOLT

7515542

Unavailable

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

BOLT Substituted by 7515491

7515433

$1.59

4

WASHER(10)

7555743

Unavailable

5

ROLLER-SPRING

5430540

Unavailable

6

Spacer

5332787

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

7

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WHEEL,IDLER,PURPLE"C" (Lite)

1594060

Unavailable

8

WHEEL,IDLER,TEAL (Deluxe)

1594050

Unavailable

8

WHEEL,IDLER,PURPLE"C" (Lite)

1594060

Unavailable

8

WHEEL,IDLER,TEAL (Deluxe)

1594050

Unavailable

9

SPACER-IDLER-OUTER

5332641

Unavailable

9

SPACER-IDLER-OUTER

5332641

Unavailable

10

RAIL ASM,RH, SILVER (Incl. 19, 32, 40, 35)

1540554

Unavailable

10

RAIL ASM, LH,SILVER (Incl. 19, 32, 40, 35)

1540553

Unavailable

10

RAIL ASM,RH, SILVER (Incl. 19, 32, 40, 35)

1540554

Unavailable

10

RAIL ASM, LH,SILVER (Incl. 19, 32, 40, 35)

1540553

Unavailable

11

SPACER INNER IDLER

5010169

Unavailable

12

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

13

SPACER,IDLER,R.INNER

5333086

Unavailable

14

SHAFT,IDLER

5020722

Unavailable

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

16

SHAFT,PIVOT ARM

5020723

$29.99

16

SHAFT,PIVOT ARM

5020723

$29.99

16

SHAFT,PIVOT ARM

5020723

$29.99

17

BOLT, ADJUSTER(10)

7515455

$29.99

18

NUT(10)

7542440

Unavailable

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

RIVET,(50)

7621501

$2.39

21

WASHER(10)

7555804

$3.99

21

WASHER(10)

7555804

$3.99

22

SPACER

5332786

$7.99

23

LOCK WASHER(10)

7553201

$3.99

24

BOLT(10)

7512659

$7.99

25

WHEEL, IDLER (Incl. 26-28)

1543018

$56.65

25

WHEEL, IDLER (Incl. 26-28)

1543018

$56.65

25

WHEEL, IDLER (Incl. 26-28)

1543018

$56.65

25

WHEEL, IDLER (Incl. 26-28)

1543018

$56.65

26

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

26

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

27

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

28

BEARING (1 per Wheel)

3514303

$11.99

29

BOLT(10)

7512404

$3.99

30

BRACKET,BOGIE WHEEL

5130570

$48.56

31

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

32

REINF., BUMPER

5222629

$13.75

33

SCREW(10)

7512227

$3.19

34

SLIDER,BLACK(2)

5521320

Unavailable

35

COVER-RAIL TIP

5430627

$32.37

36

RIVET(50)

7621435

$1.49

37

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

37

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

37

TRACK,('LITE'94)

5410792

Unavailable

38

SHAFT,PIVOT ARM

5020724

$29.99

38

SHAFT,PIVOT ARM

5020724

$29.99

39

NUT-LOCK(10)

7542122

$1.49

40

BUMPER, RAIL

5810554

$7.27

41

NUT LOCK(10)

7542403

$3.99

42

NUT-LOCK(10)

7542439

$1.49

43

SPACER, OUTER

5332784

Unavailable

43

SPACER, OUTER

5332784

Unavailable

44

TUBE, SUSPENSION

5332783

Unavailable
