STEERING LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B003)

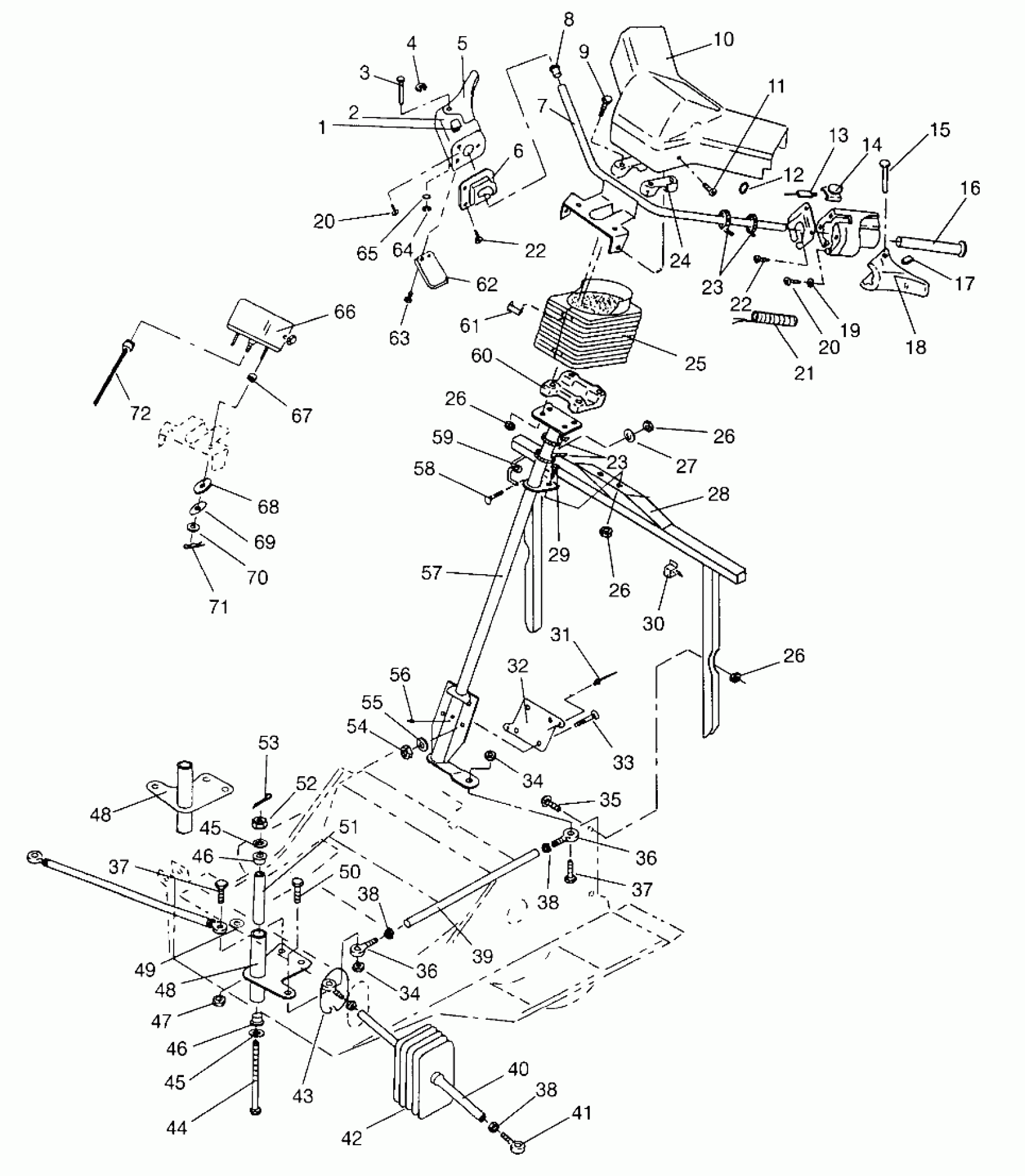

Polaris LITE - 0963433 STEERING LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B003) Diagram
#
1
SWITCH,AUX.SHUT-OFF
4110106
$94.99
2
BLOCK,THROTTLE/BRAKE
5431592
$49.99
3
PIN-RETAINING .186X1.780-AL
7661624
$12.79
4
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
5
LEVER-THROTTLE
5430601
Unavailable
5
LEVER,30 MM,W/HTR. (Deluxe)
2010147
Unavailable
6
BLOCK-ADAPTER
5430604
$13.75
7
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
8
CAPLUG(10) (Deluxe)
7080467
Unavailable
9
BOLT
7515144
Unavailable
10
COVER,H'BAR W/SPEEDO (US)
5431232-070
Unavailable
10
DESC NOT_AVAILABLE (Euro)
5431423-070
Unavailable
11
SCREW,(10)
7512024
$4.79
12
O RING
5410591
Unavailable
13
Switch, Brake Light
4110105
Unavailable
14
Switch, Dimmer
4110104
Unavailable
15
RIVET,(50)
7661617
$4.03
16
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
17
CLIP-SPEED.(10)
7670044
$4.79
18
LEVER-BRAKE
5430602
$36.41
19
RIVET BURR(50)
7555727
$1.49
20
SCREW-SEMS(10) (Lite)
7511848
$3.99
20
SCREW-SEMS(10) (Lite)
7511848
$3.99
21
HEATER GRIP ASM. (Deluxe)
2460313
Unavailable
22
SCREW(10)
7512465
$3.99
22
SCREW(10)
7512465
$3.99
23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
24
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
25
BOOT,STRG.POST
5431234-070
Unavailable
26
NUT-LOCK(10)
7542122
$1.49
26
NUT-LOCK(10)
7542122
$1.49
26
NUT-LOCK(10)
7542122
$1.49
26
NUT-LOCK(10)
7542122
$1.49
27
WASHER,WROUGHT(10)
7558302
$1.59
28
HOOP,STRG,BLK.
1011863-067
$38.71
29
BOLT(10) Substituted by 7512269
7515101
Unavailable
30
CLIP ,(10)
5222672
Unavailable
31
RIVET-3/16-.090-.290
7661637
$1.49
32
BRKT, BOLT RETAINER
5222421
$5.52
33
BOLT(10) Substituted by 7512377
7512394
Unavailable
34
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
34
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
35
BOLT(10)
7512298
$3.99
36
ROD END,LH
7060166
$48.56
36
ROD END,RH
7060167
$48.56
36
ROD END,LH
7060166
$48.56
36
ROD END,RH
7060167
$48.56
37
BOLT(10)
7512404
$3.99
37
BOLT(10)
7512404
$3.99
38
NUT HEX(10)
7542401
$2.39
38
NUT
7542424
$1.49
38
NUT HEX(10)
7542401
$2.39
38
NUT
7542424
$1.49
38
NUT HEX(10)
7542401
$2.39
38
NUT
7542424
$1.49
39
ROD, DRAG LINK
5333005
Unavailable
40
ROD,TIE,BLK.
5333006-067
Unavailable
41
ROD END, RH.
7060165
$48.56
41
ROD END, LH.
7060164
$48.56
42
BOOT, TIE ROD Substituted by 5411652
5410639
$19.84
43
RETAINER, BOOT
5222283
Unavailable
44
BOLT(10)
7512572
$13.19
45
WASHER(10)
7555817
Unavailable
45
WASHER(10)
7555817
Unavailable
46
BUSHING
5630371
$5.03
46
BUSHING
5630371
$5.03
47
NUT LOCK(10)
7542403
$3.99
48
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067
1823141-067
$49.21
48
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067
1823141-067
$49.21
49
BUSHING,OPEN/CLOSE(10) (Deluxe)
7080399
$2.39
50
SCREW(10)
7515434
Unavailable
51
BUSHING, SPACER
5333009
$11.99
52
NUT, CASTLE(10)
7542523
Unavailable
53
PIN COTTER(10)
7661203
$1.49
54
NUT-5/16-18 NYLOK-Y
7542324
$1.49
55
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
56
FITTING,LUB/VEN(10)
7080561
$4.79
57
POST, STRG.,BLK.
1823155-067
Unavailable
58
BOLT(10)
7512193
$2.39
59
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
60
BLOCK,HANDLEBAR
5630187-067
$44.99
61
CLIP, STRG.BOOT(10)
7670073
Unavailable
62
HOLDER-WIRE (Deluxe)
5432261
$24.27
63
SCREW(10) (Deluxe)
7511858
$3.99
64
RING-RETAINING EXTERNAL
7710401
$3.99
65
WASHER(10)
7555730
$3.99
66
SPEEDOMETER (US)
3280112
Unavailable
66
SPEEDO,(KPH),EURO. (Euro)
3280137
Unavailable
67
SPACER
5410592
Unavailable
68
SPACER,SPEEDO.MTG.
5810442
$10.99
69
PLATE,MTG,(SPEEDO)
5211189
$12.99
70
WASHER, FLAT(10)
7558201
$5.79
71
HAIRPIN, COTTER(10)
7660701
$1.99
72
CABLE,SPEEDOMETER
3280113
Unavailable
