REAR TORQUE ARM LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B011)

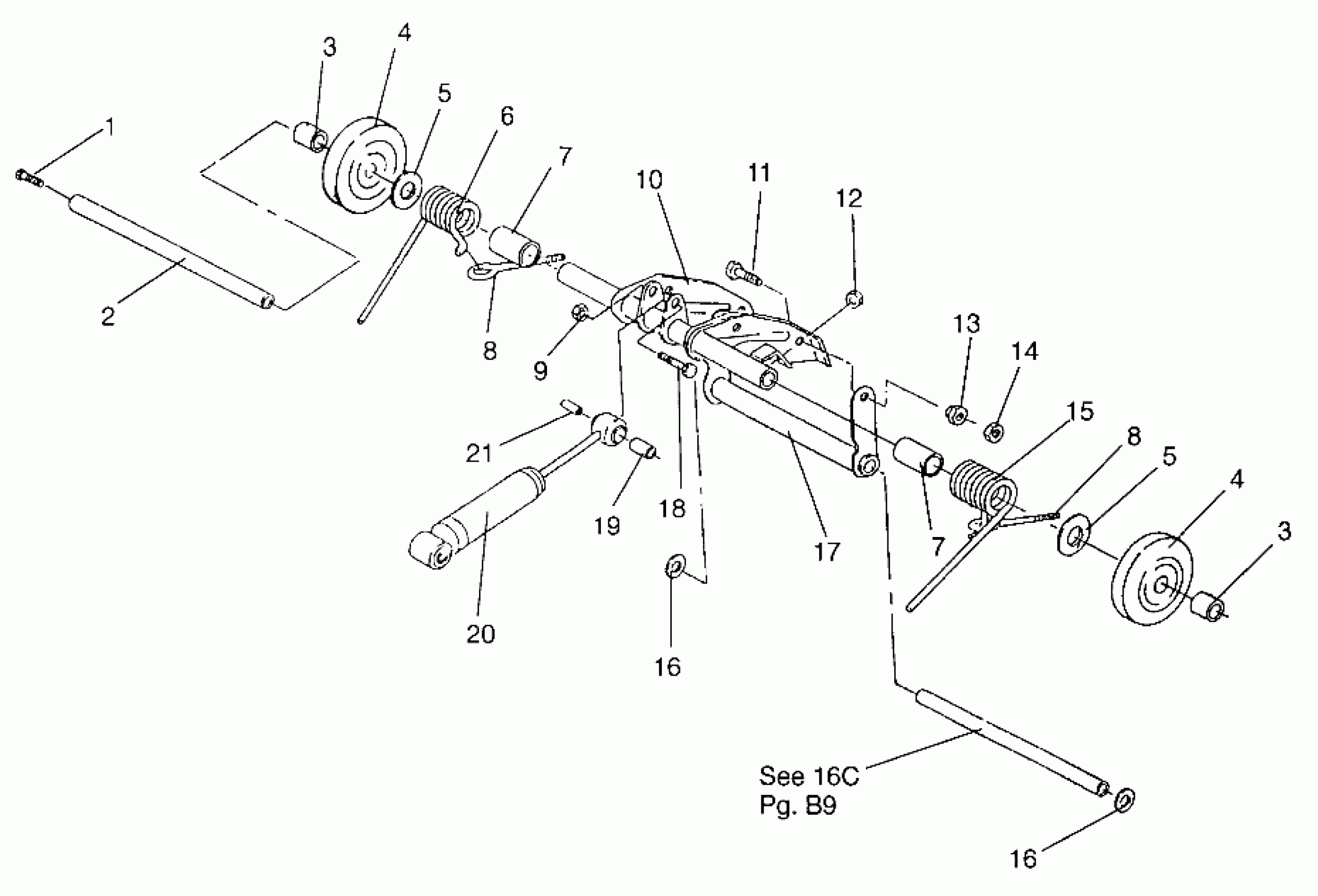

Polaris LITE - 0963433 REAR TORQUE ARM LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166B011) Diagram
#
Description
Price
1
BOLT(10)
7515432
Unavailable
2
SHAFT Substituted by 5020907
5020611
$56.65
3
SPACER-CARR.WHEEL
5332730
$14.99
3
SPACER-CARR.WHEEL
5332730
$14.99
4
WHEEL-TRACK CARRIER
1543017
$48.56
4
BEARING-5/8I.D. (1 Per Wheel)
3513504
$9.59
4
RETAINER(10)
7710403
$2.63
4
WHEEL-TRACK CARRIER
1543017
$48.56
4
BEARING-5/8I.D. (1 Per Wheel)
3513504
$9.59
4
RETAINER(10)
7710403
$2.63
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
6
SPRING,RH,BLK.
7041120-067
Unavailable
7
TUBE-SPRING
5521089
Unavailable
7
TUBE-SPRING
5521089
Unavailable
8
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
8
BOLT-EYE, SPRING ADJ.(10)
7080221
$9.59
9
NUT-5/16-18 NYLOK-Y
7542324
$1.49
10
ARM,R.TORQUE,BLK.
1540712-067
Unavailable
11
BOLT(10)
7515317
$4.79
12
NUT FLEX LOC,(10)
7542402
$6.39
13
NUT, SHOULDER(10)
7542326
$19.99
14
NUT LOCK(10)
7542302
$3.99
15
SPRING,LH,BLK.
7041119-067
Unavailable
16
MACHINERY BUSHING(10)
7556301
$3.19
16
MACHINERY BUSHING(10)
7556301
$3.19
17
ARM,REAR PIVOT
1540737-067
Unavailable
18
BOLT(10)
7512329
$3.99
19
SPACER
5332631
$6.39
20
SHOCK Substituted by 7041737
7041154
Unavailable
21
BUSHING
5430537
$3.99
