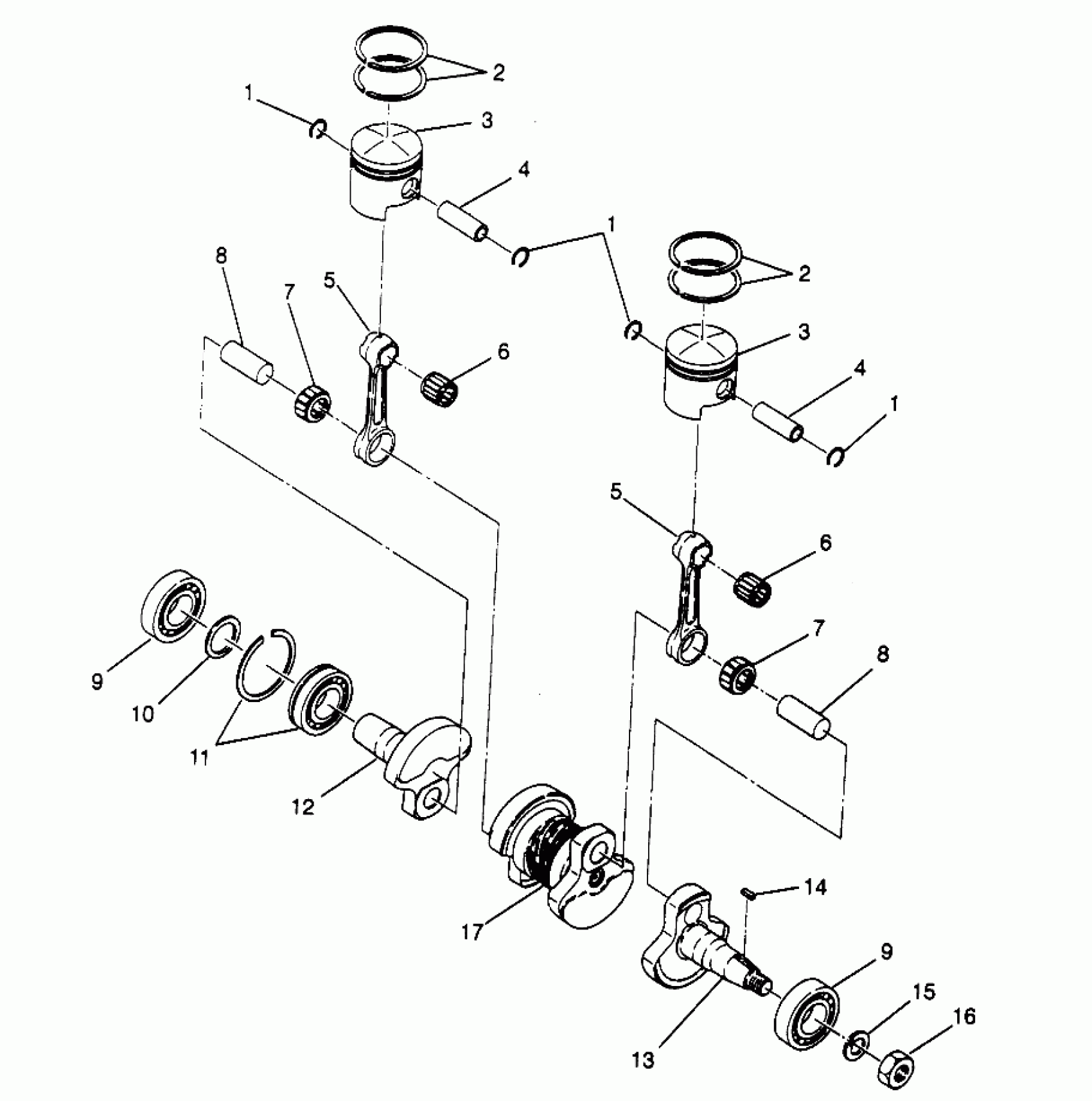

Polaris LITE - 0963433 PISTON and CRANKSHAFT LITE 0963433, EURO LITE E963433 and LITE DELUXE 09634 (4931663166C006) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

2

Ring, Piston (Standard)

3083587

Unavailable

2

Ring, Piston (.25mm/.010" Oversize)

3084319

$33.32

2

RING, .020 O/S (.50mm/.020" Oversize)

3083719

$31.41

2

Ring, Piston (Standard)

3083587

Unavailable

2

Ring, Piston (.25mm/.010" Oversize)

3084319

$33.32

2

RING, .020 O/S (.50mm/.020" Oversize)

3083719

$31.41

3

PISTON,STD. Substituted by 3085840 (Standard)

3084603

Unavailable

3

PISTON,(.010 O/S) Substituted by 3085841 (.25mm/.010" Oversize)

3084604

$152.37

3

PISTON,(.020 O/S) Substituted by 3085842 (.50mm/.020" Oversize)

3084605

Unavailable

3

PISTON,STD. Substituted by 3085840 (Standard)

3084603

Unavailable

3

PISTON,(.010 O/S) Substituted by 3085841 (.25mm/.010" Oversize)

3084604

$152.37

3

PISTON,(.020 O/S) Substituted by 3085842 (.50mm/.020" Oversize)

3084605

Unavailable

4

PIN, PISTON Substituted by 3085021

3084455

Unavailable

4

PIN, PISTON Substituted by 3085021

3084455

Unavailable

5

Rod, Connecting

3083581

Unavailable

5

Rod, Connecting

3083581

Unavailable

6

BEARING,SMALL END

3080998

Unavailable

6

BEARING,SMALL END

3080998

Unavailable

7

Bearing, Large End

3083583

$23.19

7

Bearing, Large End

3083583

$23.19

8

Pin, Crank

3083582

$16.47

8

Pin, Crank

3083582

$16.47

9

Bearing, Ball

3084580

$31.99

9

Bearing, Ball

3084580

$31.99

10

Spacer

3083399

$1.49

11

BEARING,BALL

3084602

Unavailable

12

CRANKSHAFT #3

3083580

$236.99

13

CRANKSHAFT (Incl. 5, 7-13, 17)

3083577

$969.99

13

CRANKSHAFT #1

3083578

$354.99

14

KEY

3081447

Unavailable

15

WASHER-SPRING(10)

3083094

$3.17

16

NUT

3083093

$19.99

17

GEAR,DRIVE,OIL PUMP

3083782

$102.13

17

CRANKSHAFT #2 (Incl. 8)

3083579

$400.79
