OIL TANK / AIR BOX LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166C002)

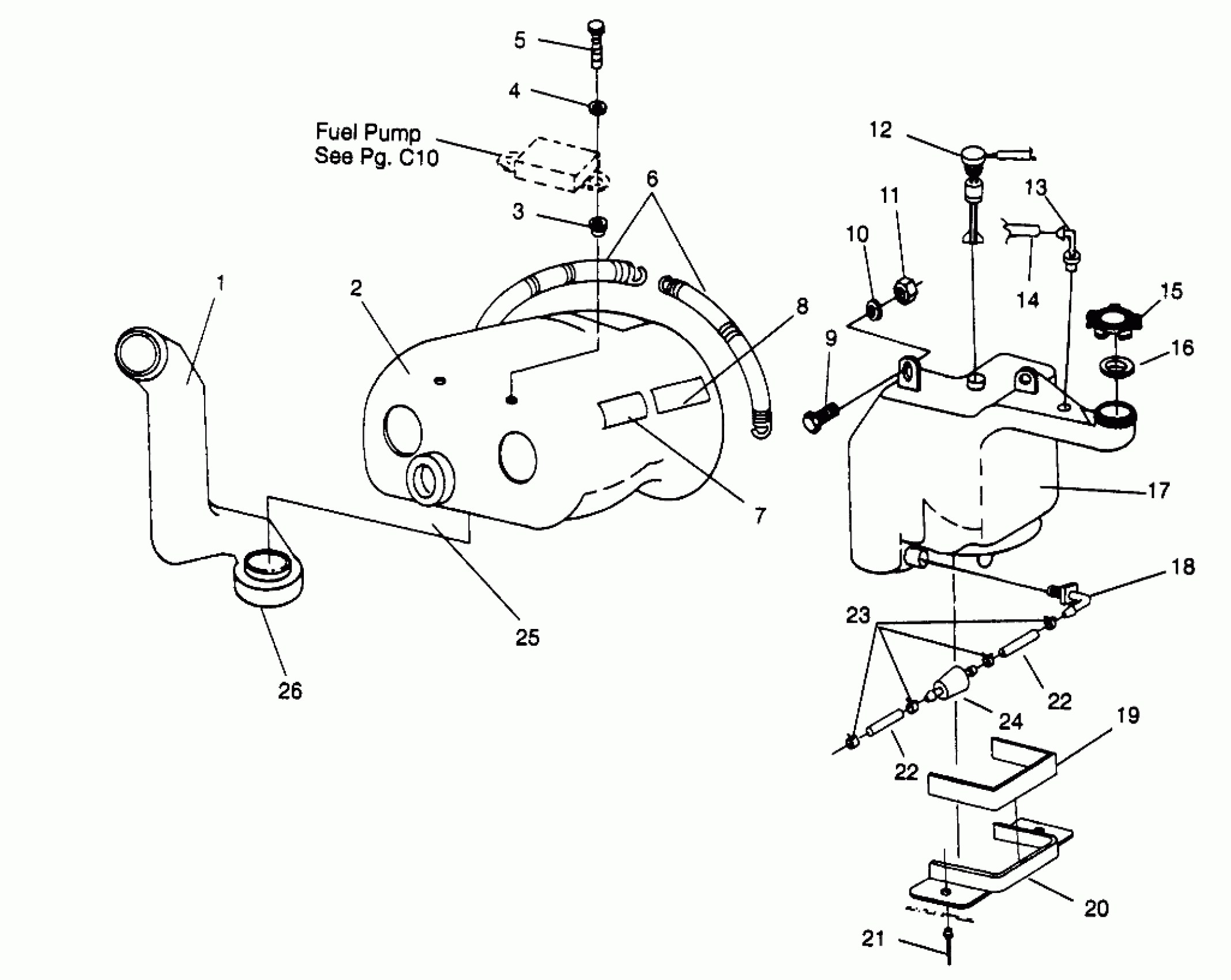

Polaris LITE - 0963433 OIL TANK / AIR BOX LITE 0963433, EURO LITE E963433 and LITE DELUXE 0963431 (4931663166C002) Diagram
#
Description
Price
1
DUCT, INTAKE
5431354
Unavailable
2
SILENCER,INTAKE,DRILLED
5431521
Unavailable
3
NUT-WELL(10)
7541923
$5.59
4
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
5
SCREW(10)
7512222
$2.39
6
SPRING,HOLDDOWN
7041244
$11.79
7
DECAL,INTAKE
7075348
Unavailable
8
DECAL, GREASING [No Longer Available]
7073426
$7.27
9
BOLT(10)
7512240
$3.99
10
WASHER,WROUGHT(10)
7558302
$1.59
11
NUT-LOCK(10)
7542122
$1.49
12
SENSOR, OIL (Deluxe Only)
4110152
Unavailable
13
FITTING,90 DEG,1/8,(10)
7052095
$4.79
14
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
15
CAP,OIL TANK
5430779
$14.56
16
GASKET-OIL CAP
5810141
$2.39
17
TANK,OIL,DRILLED (Deluxe)
5431488
$115.99
17
TANK, OIL (Lite)
5431225
Unavailable
18
FITTING, OUTLET
7052056
$6.23
19
Pad, Oil Tank
5810522
$1.35
20
BRKT,LOW.OILTANK
5222673
Unavailable
21
RIVET(50)
7621453
$3.19
22
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
22
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
25
BOOT-SILENCER
5410311
Unavailable
26
Seal
5810462
$4.95
