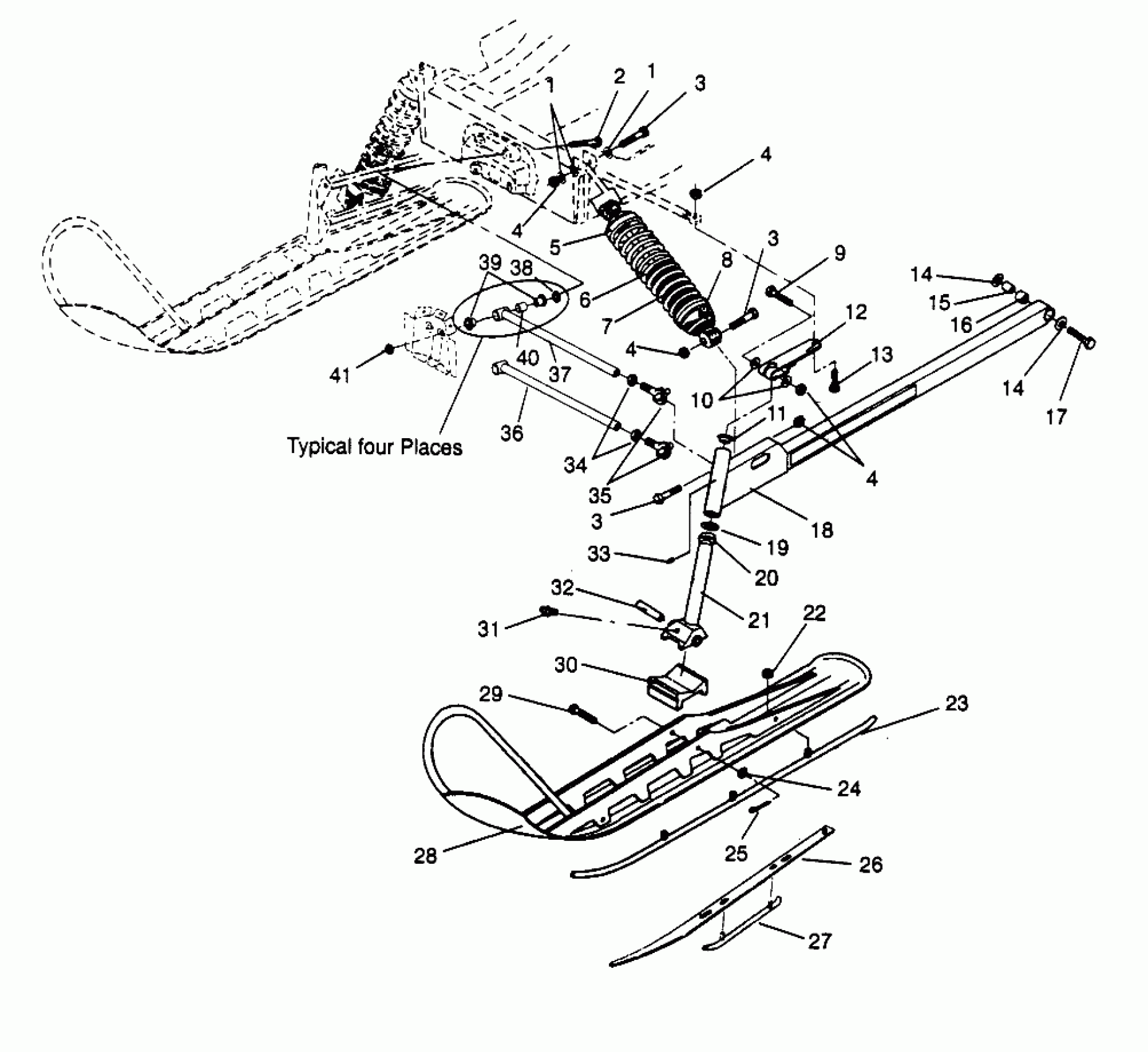

Polaris LITE - 0963433 FRONT SUSPENSION and SKI LITE 0963433, EURO LITE E963433 and LITE DELUXE 09 (4931663166B001) Diagram

#

Description
Price

1

WASHER(10)

7555806

$1.49

1

WASHER(10)

7555806

$1.49

2

BOLT(10)

7515417

$4.79

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

4

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

4

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

4

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

4

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

5

RETAINER-TOP

5220225

$10.39

6

SPRING,COMP.,BLK.

7041261-067

$164.99

7

SPACER,SHOCK RETAINER(10)

5210953

$6.39

8

SHOCK,FR.SUSP.

7041284

Unavailable

9

BOLT(10) Substituted by 7517583

7515491

Unavailable

10

WASHER(10) Substituted by 7555832

7555851

Unavailable

11

BUSHING-FLANGE

3573909

$2.39

12

Arm, Steering

5220326-067

Unavailable

13

BOLT Substituted by 7512404

7515490

Unavailable

14

WASHER(10)

7555721

$1.49

14

WASHER(10)

7555721

$1.49

15

TUBE,TRAILING ARM

5010187

Unavailable

16

PIVOT-TRAILING ARM

5410382

Unavailable

17

BOLT(10)

7512557

$7.60

18

ARM,LH TRLG,BLK.

1823136-067

Unavailable

18

ARM,RH TRLG,BLK.

1823137-067

$266.49

19

WASHER SPECIAL(10)

7556509

$1.59

20

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

21

SPINDLE, BLK.

6230073-067

Unavailable

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

SKAG,SHORT(20) (Lite)

1820267

$23.99

24

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

25

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

26

PLATE, SKAG (Deluxe)

1011829-067

$54.99

27

SKAG Substituted by 1820318-067 (Deluxe)

1820318

$49.99

28

SKI, BLK,(LITE) Substituted by 1820333-067

1820333

Unavailable

29

BOLT(10)

7515462

$8.79

30

Stop, Rubber

5521231

Unavailable

31

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

32

BUSHING,PIVOT,(10)

5010158

$19.99

33

ZERK,FITTING,THREADED(10)

7080433

$1.49

34

NUT JAM(10)

7542520

$2.39

35

ROD END,RH,WIDEBORE Substituted by 7061069

7060157

Unavailable

36

ROD,RAD,LOW.BLK.

1822128-067

Unavailable

37

ROD,RAD,UP.,BLK.

1822129-067

Unavailable

38

WASHER(10)

7555797

$3.99

39

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

40

Bushing

5010252

$1.59

41

NUT LOCK(10)

7542403

$3.99
